Запчасти Case IH 1660 (9G-28) - CAB SOUND INSULATION AND FLOOR MAT (10) - CAB & AIR CONDITIONING

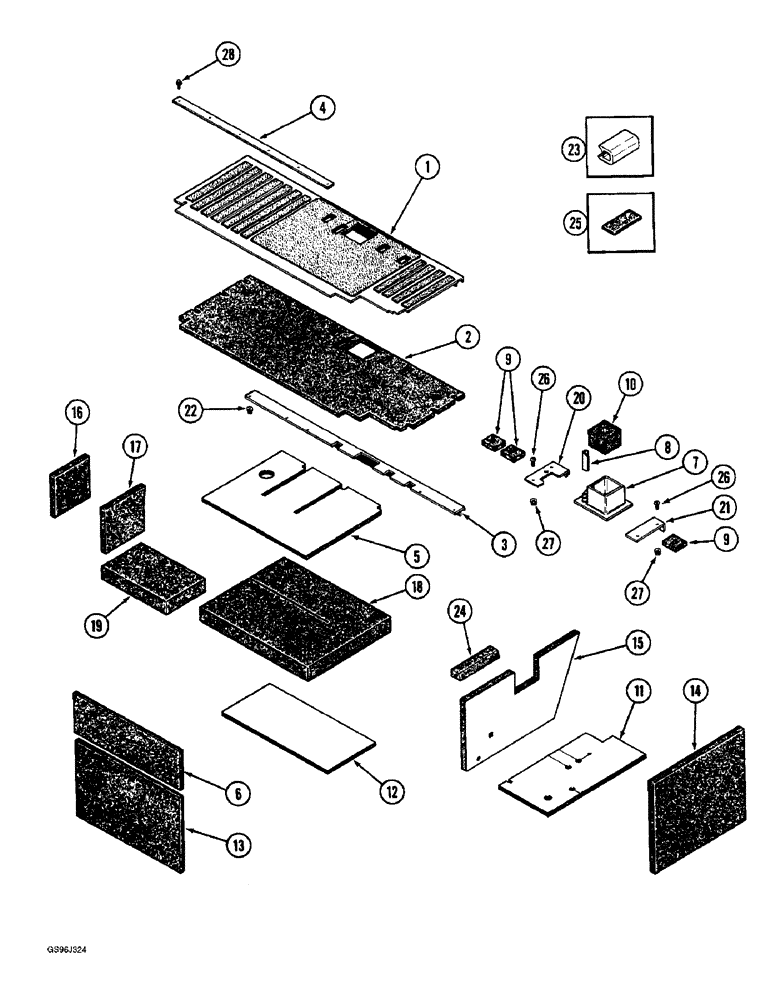

Схема запчастей Case IH 1660 - (9G-28) - CAB SOUND INSULATION AND FLOOR MAT (10) - CAB & AIR CONDITIONING
19
12
5
2
11
25
4
28
3
15
9
1
23
27
10
26
24
13
14
8
17
20
21
18
16
22
26
27
7
9
6

Артикул

Название

Примечание

Количество

1

1329711C3

MAT

- floor (Replaces mat 1327920C2)

1шт.

2

1326885C1

INSULATOR

PAD - insulation, floor mat (Replaces pad 1327921C1)

1шт.

3

1327603C1

SUPPORT

- floor mat front retainer, if equipped

1шт.

4

91796C1

STRIP

- floor mat hold down

1шт.

4

1338051C1

BRACKET

- hold-down

1шт.

5

98123C4

SHEET ASSY.

SUPPORT - seat platform

1шт.

6

98008C2

INSULATOR

PAD - insulation, center rear support

1шт.

7

198075C1

INSULATOR

PAD - insulation, steering pedestal

1шт.

8

187581C1

ANGLE

- steering pedestal

1шт.

9

1321935C1

SEAL

- pedal

3шт.

10

1324844C1

SEAL

- steering pedestal

1шт.

11

196587C7

INSULATOR

PAD - insulation, right-hand, cover

1шт.

12

91793C2

INSULATOR

PAD - insulation, center cover

1шт.

13

91790C2

INSULATOR

PAD - insulation, center rear

1шт.

14

1301219C2

SHEET

PAD - insulation, right-hand console sound, outer cover

1шт.

15

91797C2

SHEET

PAD - insulation, right-hand, inner, cover (Replaces pad 91797C1)

1шт.

16

196598C2

SHEET

PAD - insulation, left-hand, outer, cover

1шт.

17

1322927C2

INSULATOR

PAD - insulation, left-hand panel

1шт.

18

91791C2

INSULATOR

- center sound

1шт.

19

91792C3

SHEET ASSY.

PAD - insulation, manual box

1шт.

20

1327567C1

PLATE

- boot hold-down, left-hand

1шт.

21

1327568C1

PLATE

- boot hold-down, right-hand

1шт.

22

231-5146

FLANGE NUT,3/8"-16

5шт.

23

196707C1

SEAL

TRIM - edge, bulk, 600 inch (15240 mm) long, no longer available, order bulk seal 1330108CX below

1шт.

23

NSS

NOT SOLD SEPARAT

TRIM - rear inside edge to cab, 27-1/2 inch (699 mm) long, cut from bulk seal 1330108CX below

1шт.

23

NSS

NOT SOLD SEPARAT

TRIM - left-hand inside edge to cab, 14-3/4 inch (375 mm) long, cut from bulk seal 1330108CX below

1шт.

23

NSS

NOT SOLD SEPARAT

TRIM - vertical flange under right door, 6 inch (152 mm) long, cut from bulk seal 1330108CX below

1шт.

24

1288795C2

SEAL

- throttle lever

1шт.

25

1301236C1

SEALING STRIP

- 31 inch (787 mm), Serial Range: long,-deck

1шт.

26

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

28

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- self-tapping, hex washer head, 1/4 NC x 1 inch

6шт.

1330108CX

SEAL,304.8mm L

- bulk, 600 inch (15240 mm) long

1шт.

Выбрано товаров: 33
