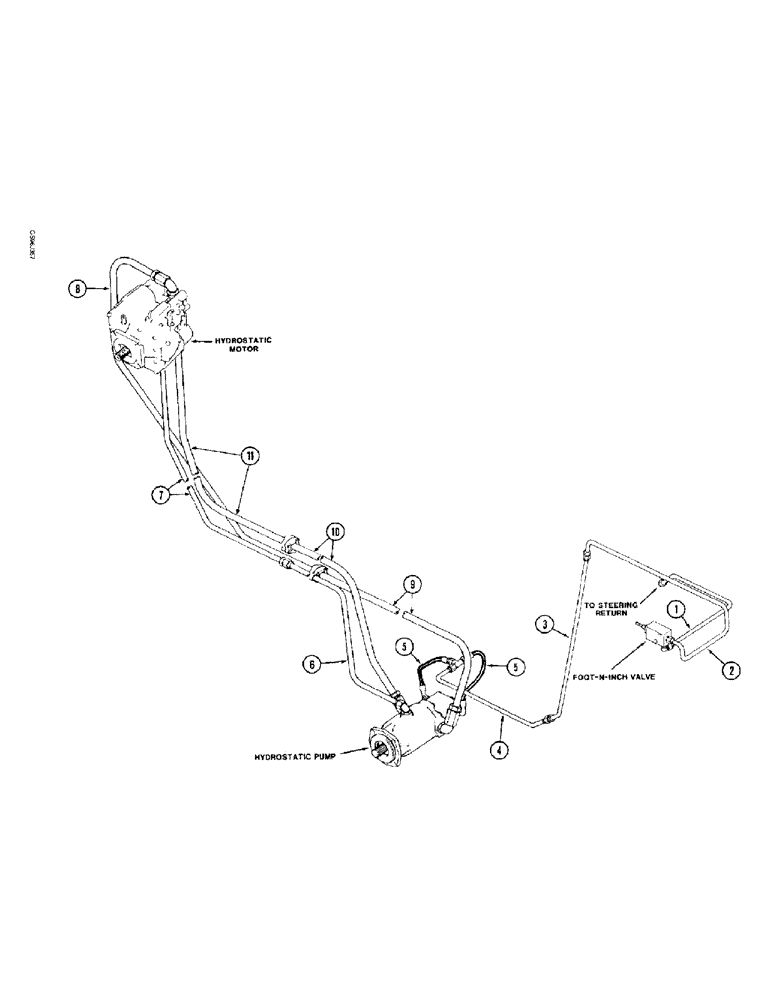

Запчасти Case IH 1660 (1-20) - PICTORIAL INDEX, SINGLE SPEED PROPULSION SYSTEM (00) - PICTORIAL INDEX

1

Foot-N-Inch Valve Return Tube, Page 6-13

1шт.

2

Foot-N-Inch Upper Tube, Page 6-13

1шт.

3

Foot-N-Inch Center Tube, Page 6-13

1шт.

4

Foot-N-Inch Lower Tube, Page 6-13

1шт.

5

Foot-N-Inch Hose, Page 6-13

1шт.

6

Bleed Lower Tube, Pages 6-17,19

1шт.

7

Bleed Upper Tube, Pages 6-17,19

1шт.

8

Drive Reverse Upper Pressure Tube, Pages 6-17,19

1шт.

9

Drive Reverse Lower Pressure Tube, Pages 6-17,19

1шт.

10

Drive Forward Lower Pressure Tube, Pages 6-17,19

1шт.

11

Drive Forward Upper Pressure Tube, Pages 6-17,19

1шт.
