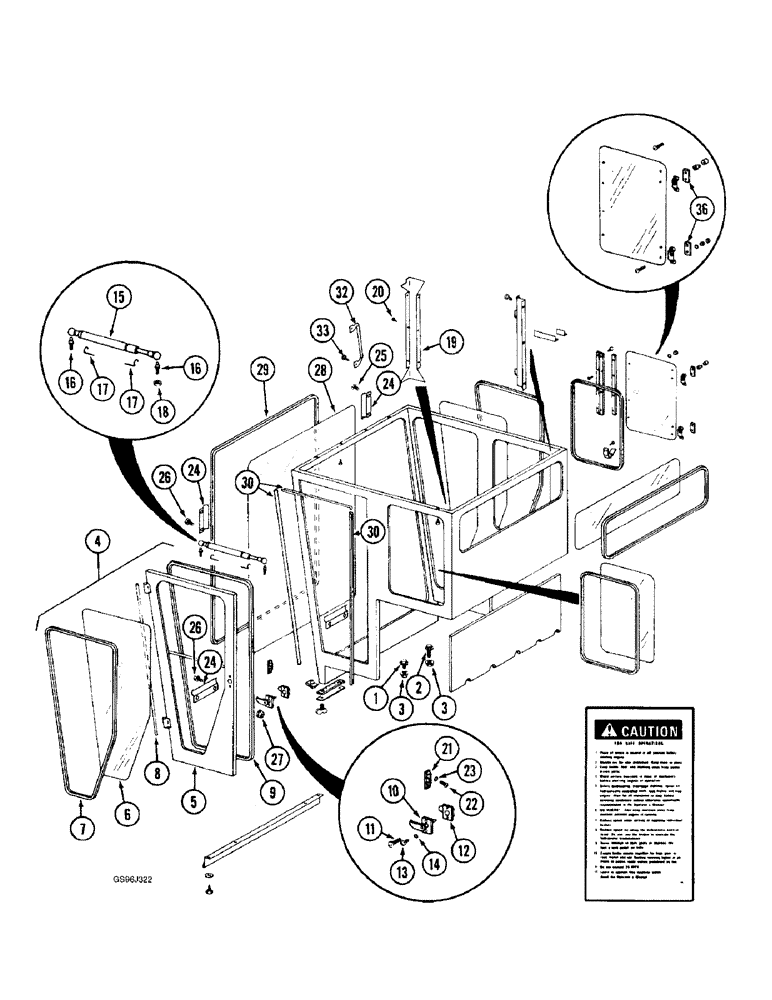

Запчасти Case IH 1660 (9G-24) - OPERATORS CAB BOTTOM (10) - CAB & AIR CONDITIONING

1330154C92

CAB

ASSEMBLY - operators with heater and air conditioning, Includes: Ref. 1 - 33 and parts in Fig. 9G-26

1шт.

1

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

- hex washer head, 3/8 NC x 3/4 inch

8шт.

2

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

BOLT - hex flange, polyseal, 3/8 NC x 1-1/4 inch

9шт.

3

1327765C1

LOCK NUT

- hex flange, self-locking, 3/8 inch NC

17шт.

4

1329477C3

DOOR

ASSEMBLY - cab, Includes: Ref. 5 - 14

1шт.

5

NSS

NOT SOLD SEPARAT

DOOR - cab, order door assembly 1329477C3

1шт.

6

198184C1

GLASS

- cab door

1шт.

7

NSS

NOT SOLD SEPARAT

STRIP - cab door glass, 130-1/2 inch (3315 mm) long, cut from bulk moulding 198131C2

1шт.

MACHINED DOWN POINTED AREA ON THE END THAT FACED 1301646C1

1шт.

8

NSS

NOT SOLD SEPARAT

STRIP - cab door front, 52 inch (1321 mm) long, cut from bulk seal 198522C2

1шт.

9

NSS

NOT SOLD SEPARAT

STRIP - cab door top and bottom, 118 inch (2997 mm) long, cut from bulk seal 198522C2

1шт.

1970178C1

SET OF 2 KEYS

KEY - lock, set of 2, not shown

1шт.

1329468C1

HANDLE

ASSEMBLY - door, no longer available as a unit, order components separately, Includes: Ref. 10 - 14

1шт.

10

1329440C1

HANDLE

- door outside lock

1шт.

1329441C1

GASKET

- door latch

1шт.

11

489-11012

SCREW,Cross Oval Hd, #10"-32 x 3/4"

- machine, oval Phillips, No. 10 NF x 3/4 inch

2шт.

12

1329443C1

LATCH

ASSEMBLY - door

1шт.

1329442C1

HANDLE

- door

1шт.

13

261-63512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NF x 3/4 inch

6шт.

14

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, (Replaces washer 138479) Ext Tooth, #10

6шт.

15

1280157C1

GAS STRUT

SPRING - gas, door control

1шт.

16

1340345C1

BALL STUD

STUD - ball (Replaces stud F44882)

2шт.

17

1304647C1

CLIP

- retaining

2шт.

18

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

19

1276305C1

SUPPORT

- hose cover, left-hand

1шт.

20

264-2056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan head slotted, No. 10 NC x 3/8 inch

6шт.

21

1330184C1

BRACKET

ANGLE - support, latch

1шт.

22

442-1258

SCREW,Cross Oval Hd, 1/4"-20 x 1/2"

- machine, oval Phillips, 1/4 NC x 1/2 inch

2шт.

23

493-51026

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER - countersunk, external tooth lock, 1/4 inch

2шт.

24

196742C2

SUPPORT

- windshield retainer

4шт.

25

326-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

(Replaces bolt 25653R1) Hex, 5/16"-18 x 1/2", G8, Full Thd

2шт.

26

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

4шт.

27

1330064C1

FLANGE NUT

- hex flange, self-locking, polyseal, 5/16 inch NC

6шт.

28

1957276C1

GLASS

- cab windshield

1шт.

29

NSS

NOT SOLD SEPARAT

STRIP - windshield glass shield, 225 inch (5715 mm) long, cut from bulk seal 198522C1

1шт.

30

NSS

NOT SOLD SEPARAT

STRIP - cab door opening rear, 54 inch (1372 mm) long, cut from bulk seal 1330108CX

1шт.

30

NSS

NOT SOLD SEPARAT

STRIP - cab door opening rear, 54 inch (1372 mm) long, cut from bulk seal 1330108CX

1шт.

31

NSS

NOT SOLD SEPARAT

STRIP - cab door opening top, 26 inch (660 mm) long, cut from bulk seal 1330108CX

1шт.

32

1321545C1

HANDLE

- grab

1шт.

33

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.
