Запчасти Case IH 1660 (9G-10) - OPERATORS SEAT (10) - CAB & AIR CONDITIONING

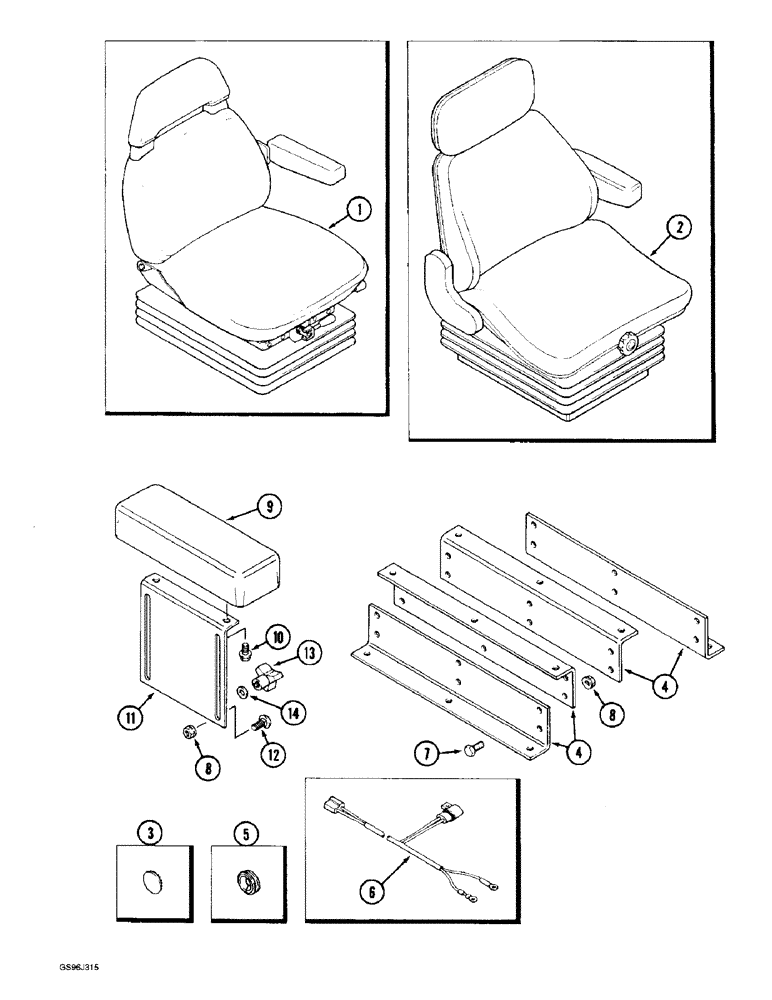

Схема запчастей Case IH 1660 - (9G-10) - OPERATORS SEAT (10) - CAB & AIR CONDITIONING
4
4
1
2
8
5
3
14
6
8
9
13
10
7
11
12

Артикул

Название

Примечание

Количество

1

91789C91

SEAT

ASSEMBLY - Bostrom, parts list Figs. 9G-12 through 9G-16

1шт.

2

91788C91

SEAT

ASSEMBLY - Grammer, parts list Figs. 9G-18 through 9G-22

1шт.

3

353-411

PLUG,Dome, 1.000" hole, Nylon

Bostrom Dome, 1.000" hole, Nylon

1шт.

4

98115C1

BRACKET

- seat mounting

4шт.

5

123548H

GROMMET

- Grammer seat

1шт.

6

91832C1

HARNESS

- Grammer seat

1шт.

7

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

BOLT - self-locking, hex flange, special, 5/16 NC x 3/4 inch

14шт.

8

1330064C1

FLANGE NUT

- hex flange, self-locking, polyseal, 5/16 inch NC

10шт.

9

1301216C3

ARMREST

- seat

1шт.

10

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

11

192999C1

SUPPORT

- arm rest mounting

1шт.

12

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

13

196970C1

KNOB

- arm rest

2шт.

14

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

Выбрано товаров: 14
