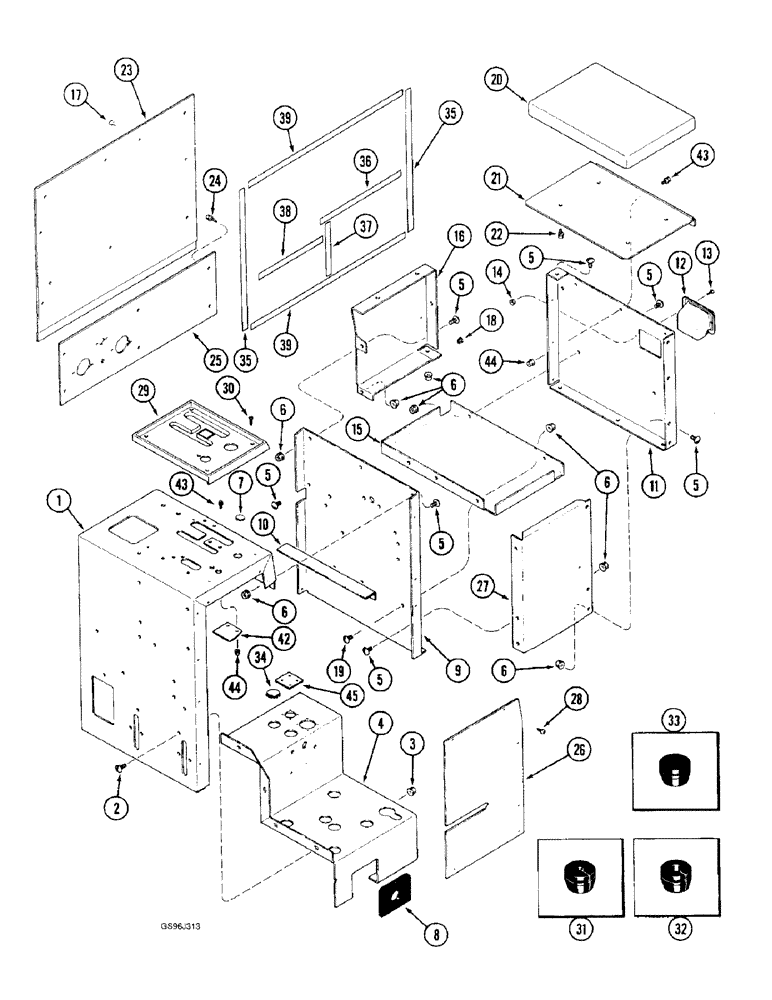

Запчасти Case IH 1660 (9G-06) - LEFT HAND CONSOLE (10) - CAB & AIR CONDITIONING

1

193065C9

BRACKET

SUPPORT - left-hand console rear (Replaces support 193065C8)

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

1321719C3

SUPPORT

- left-hand console lower

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

7

198820C1

GROMMET

- lower console

8шт.

8

1327577C2

GROMMET

SEAL - harness opening, insulator

1шт.

9

1324177C2

PLATE

SUPPORT - manual box, rear

1шт.

10

1329877C1

ANGLE

- cover support, rear, if equipped

1шт.

11

1979493C2

SUPPORT

- manual box, front

1шт.

12

A165449

ASH TRAY

TRAY - ash

1шт.

13

489-1108

SCREW,Cross Oval Hd, #10"-32 x 1/2"

- machine, oval Phillips, No. 10 NF x 1/2 inch

2шт.

14

225-13210

NUT,#10-32

2шт.

15

1324176C1

PLATE

SUPPORT - manual box, lower

1шт.

16

91878C3

SUPPORT

- manual box cover, left-hand

1шт.

17

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

2шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

3шт.

20

98129C2

PANEL

- trim, gray

1шт.

21

1329876C1

PLATE

COVER - manual box

1шт.

22

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

4шт.

23

1327958C2

PLATE

COVER - outer, left-hand console

1шт.

24

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

16шт.

26

91776C2

PLATE

- left-hand inner console, inner

1шт.

27

1979493C2

SUPPORT

- manual box, right-hand side

1шт.

28

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slotted, No. 10-16 x 1/2 inch, polyseal

7шт.

29

1285417C2

COVER

- left-hand console (Replaces cover 1285417C1)

1шт.

30

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

SCREW - oval head, No. 10-16 x 3/4 inch

4шт.

31

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 3/8 inch ID

1шт.

32

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID

2шт.

33

198820C1

GROMMET

- plug, lower console support

1шт.

34

192280

HOLE PLUG BUTTON,1 1/4"

PLUG - 1-1/4 inch ID

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - console cover, 18 inch (457 mm) long, cut from bulk seal 195917C1

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - console cover, 12 inch (305 mm) long, cut from bulk seal 195917C1

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - console cover, 7 inch ( 178mm) long, cut from bulk seal 195917C1

1шт.

38

NSS

NOT SOLD SEPARAT

SEAL - console cover, 9 inch (229 mm) long, cut from bulk seal 195917C1

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - console cover, 23 inch (584 mm) long, cut from bulk seal 195917C1

1шт.

42

195239C2

BAR

- H pattern filler plate

1шт.

43

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.

44

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

45

1330179C1

PLATE

- cover

1шт.

195917C1

GASKET

SEAL - foam, bulk, adhesive-backed, 600 inch (15240 mm) long

1шт.
