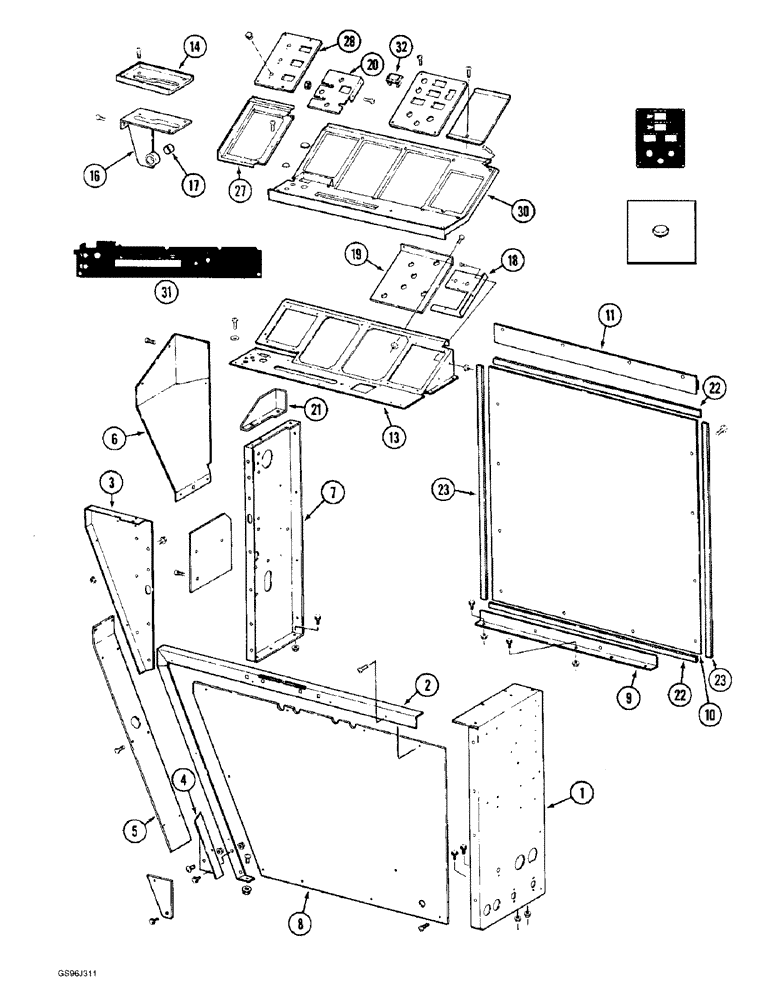

Запчасти Case IH 1660 (9G-02) - RIGHT-HAND CONSOLE (10) - CAB & AIR CONDITIONING

1

1321966C3

SUPPORT

- right-hand console, rear

1шт.

2

193031C3

SUPPORT

FRAME - right-hand console, front

1шт.

3

195992C2

SUPPORT

- right-hand console extension

1шт.

4

195991C1

SUPPORT

- right-hand console extension, lower

1шт.

5

193034C1

SUPPORT

- right-hand console extension, front

1шт.

6

1283101C2

SUPPORT

- right-hand console front

1шт.

7

1987556C2

COVER

SUPPORT - console, front

1шт.

8

91704C3

LARGE PLATE

PLATE - right-hand console inner

1шт.

9

193033C2

ANGLE

- right-hand console lower, outer

1шт.

10

1301218C2

COVER

PLATE - right-hand console, outer

1шт.

11

1301334C1

SUPPORT

- outer cover, right-hand

1шт.

13

1301210C6

SUPPORT

- upper console, right-hand

1шт.

14

198988C1

COVER

- hydrostatic drive support

1шт.

16

193277C91

SUPPORT ASSY.

SUPPORT - hydrostatic drive

1шт.

17

1979989C1

BUSHING,19.13mm ID x 22.3mm OD x 15.7mm L

- drive support (Replaces bushing 165704C1)

1шт.

18

1280162C3

SUPPORT

- fuse block

1шт.

19

1280424C1

BRACKET

SUPPORT - rear lamp machine control

1шт.

20

1280422C1

BRACKET

SUPPORT - rear lamp front control

1шт.

21

1327501C1

SUPPORT

- front panel

1шт.

22

NSS

NOT SOLD SEPARAT

STRIP - right-hand console cover, 26-45/64 inch (678 mm) long, cut from bulk seal 195917C1

2шт.

23

NSS

NOT SOLD SEPARAT

STRIP - right console cover, 27 inch (686 mm) long, cut from bulk seal 195917C1

2шт.

27

1280125C1

FRAME

- control panel, front

1шт.

28

1280158C2

PANEL

ASSEMBLY - control, front, includes decal

1шт.

1280159C1

DECAL

- header control panel

1шт.

30

87366C1

COVER

- instrument panel, right-hand console

1шт.

31

1324972C2

PANEL ASSEMBLY - console control includes decal

1шт.

1327827C2

DECAL

- right-hand console

1шт.

32

245334C1

PLUG

- panel switch cover, right-hand side

5шт.
