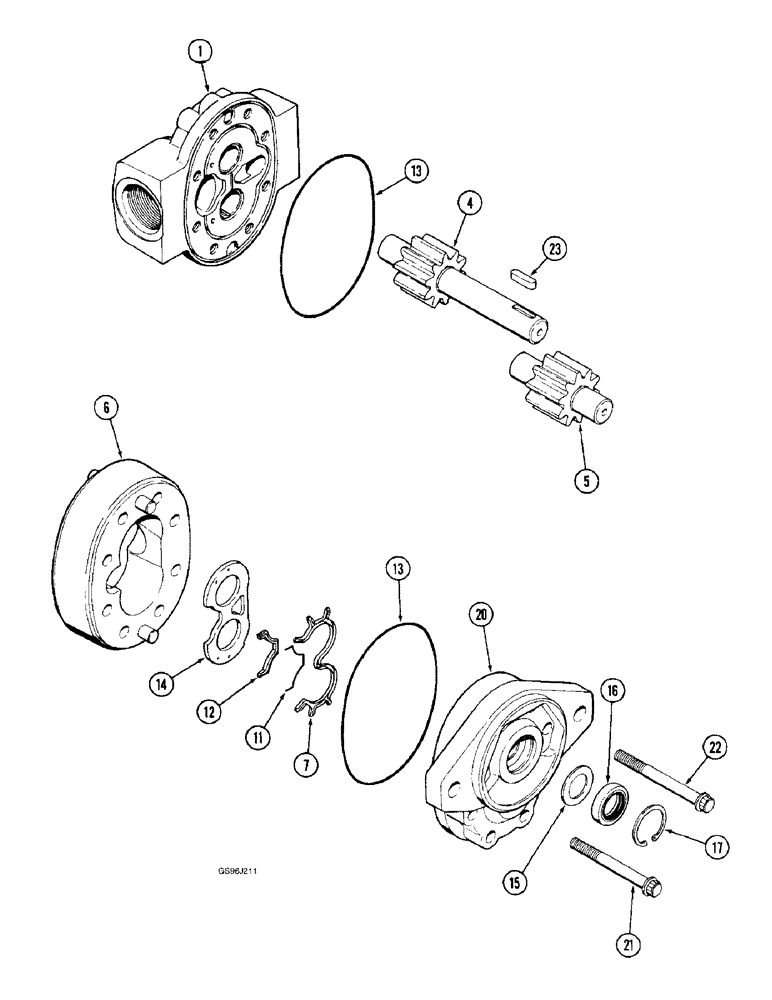

Запчасти Case IH 1660 (8-86) - REEL DRIVE PUMP (07) - HYDRAULICS

1341921C2

PUMP, HYDRAULIC

PUMP ASSEMBLY - reel drive, part number stamped on part, (Replaces pump assembly 1341921C1), Includes: Ref. 1 - 23

1шт.

1272640C91

HYDRAULIC PUMP,46.7 CC

PUMP ASSEMBLY - reel drive, part number stamped on part, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - rear, order pump assembly

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR - drive, order pump assembly

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR - idler, order pump assembly

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - pump, order pump assembly

1шт.

92586C1

SEAL KIT

KIT - seal repair, Includes: Ref. 7 - 17

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - backup, order kit 92586C1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - backup, order kit 92586C1

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - bearing, order kit 92586C1

1шт.

13

238-6159

O-RING,0.103" Thk x 4.977" ID, -159, Cl 6, 90 Duro

2шт.

14

NSS

NOT SOLD SEPARAT

PLATE - wear, order kit 92586C1

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - special, order kit 92586C1

1шт.

16

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- shaft

1шт.

17

100-21137

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - front, order pump assembly

1шт.

21

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

BOLT - 12 point, 3/8 NC x 3-1/2 inch, grade 8

4шт.

22

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

BOLT - 12 point flange, 3/8 NC x 3-3/4 inch, grade 8

4шт.

23

H233445

KEY

- pump shaft

1шт.
