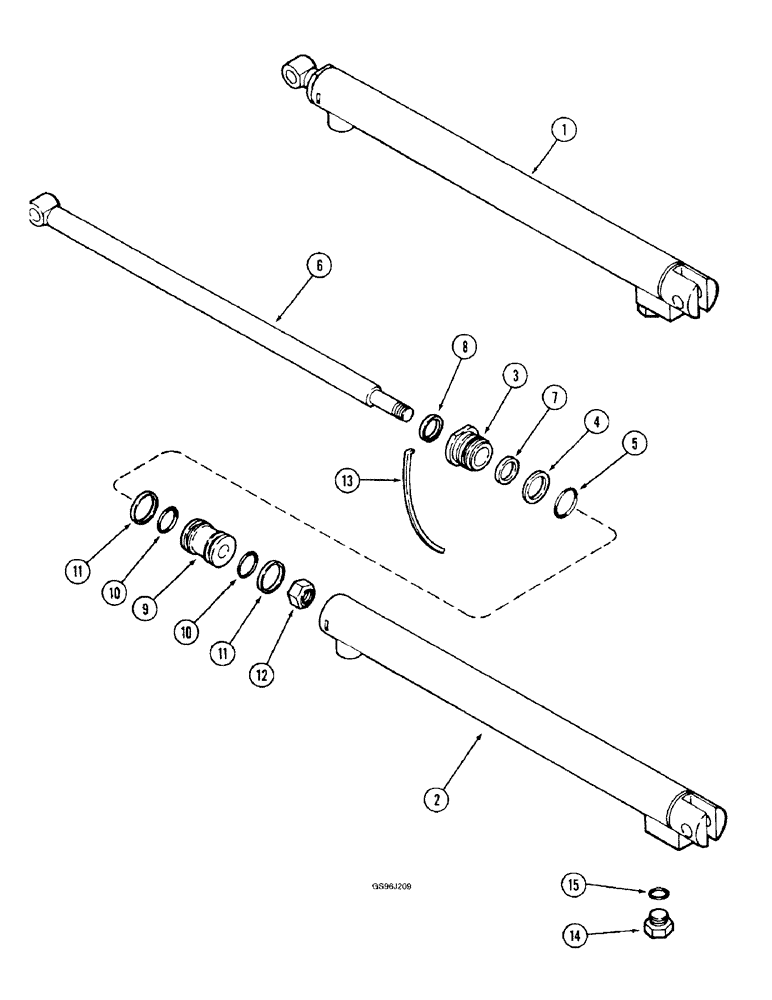

Запчасти Case IH 1660 (8-82) - UNLOADER TUBE SWING CYLINDER (07) - HYDRAULICS

1

1282488C92

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 508.2mm Stroke

CYLINDER ASSEMBLY - 1-1/2 (38) ID x 20 inch (508 mm) stroke, Includes: Ref. 2 - 15

1шт.

1282488C92R

REMAN-HYD CYLINDER

1660 Prior To S/N JJC0038346 (1/86 - 12/92)

1шт.

1282488C92C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - cylinder, order cylinder assembly 1282488C92

1шт.

3

1252291C1

HEAD

GLAND - cylinder, front

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16 x 1-1/2 inch, order kit 1272677C94

1шт.

Part of Seal Kit, P/N 1272677C94

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup, order kit 1272677C94

1шт.

Part of Seal Kit, P/N 1272677C94

1шт.

6

1285720C1

ROD

- piston

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rod, order kit 1272677C94

1шт.

Part of Seal Kit, P/N 1272677C94

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - rod, order kit 1272677C94

1шт.

Part of Seal Kit, P/N 1272677C94

1шт.

9

1285719C1

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

RING - 1-3/16 x 1-3/8 inch, order kit 1272677C94

2шт.

Part of Seal Kit, P/N 1272677C94

1шт.

11

NSS

NOT SOLD SEPARAT

RING - seal, order kit 1272677C94

2шт.

Part of Seal Kit, P/N 1272677C94

1шт.

12

232-46310

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE - retaining, order kit 1272677C94

1шт.

Part of Seal Kit, P/N 1272677C94

1шт.

14

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 15 Hex Hd, 7/16"-20 ORB

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 1/4 inch OD, order kit 1272677C94

1шт.

Part of Seal Kit, P/N 1272677C94

1шт.

1272677C94

SEAL KIT

KIT - seal, Includes: Ref. 4, 5, 7, 8, 10, 11 13 and 15

1шт.
