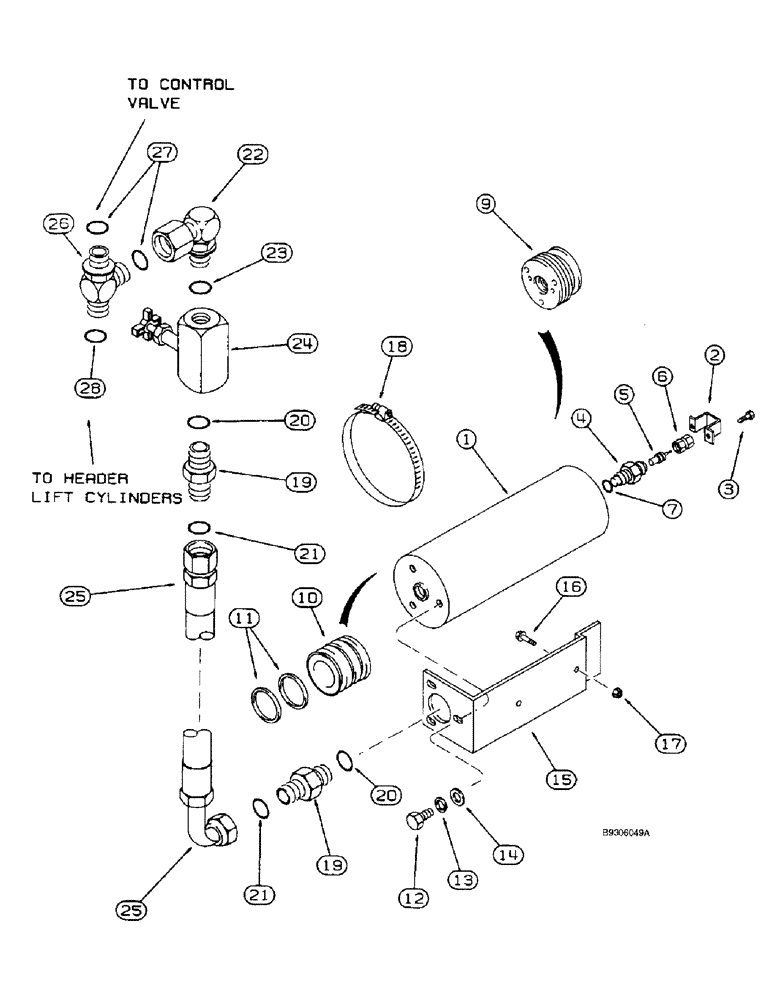

Запчасти Case IH 1660 (8-78) - ACCUMULATOR MOUNTING AND SYSTEM (07) - HYDRAULICS

1978111C1

TANK

ACCUMULATOR ASSEMBLY - hydraulic, with welded ends, no longer available, order accumulator assembly 128191A1, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - accumulator, order assembly 1978111C1

1шт.

2

1341920C1

PROTECTOR

GUARD - valve, gas

1шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

SCREW - self-tapping, hex head, 3/8 NC x 3/4 inch

2шт.

1978142C1

VALVE

ASSEMBLY - charge, accumulator, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - accumulator charging, order valve assembly

1шт.

5

1978143C1

PISTON

CORE - valve

1шт.

6

1978144C1

CAP

- valve

1шт.

7

1978158C1

O-RING

- valve, sealing

1шт.

8

1341919C1

SEAL KIT

KIT - seal, accumulator, valve, not shown

1шт.

128191A1

ACCUMULATOR,1.9L

ASSEMBLY - hydraulic, with threaded ends (Replaces accumulator 1978111C1), Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - accumulator, order assembly 128191A1

1шт.

2

1341920C1

PROTECTOR

GUARD - valve, gas

1шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

SCREW - self-tapping, hex head, 3/8 NC x 3/4 inch

2шт.

1978142C1

VALVE

ASSEMBLY - charge, accumulator, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - accumulator charging, order valve assembly

1шт.

5

1978143C1

PISTON

CORE - valve

1шт.

6

1978144C1

CAP

- valve

1шт.

7

1978158C1

O-RING

- valve, sealing

1шт.

8

1341919C1

SEAL KIT

KIT - seal, accumulator, valve, not shown

1шт.

9

S301363

GLAND

- accumulator

1шт.

10

S301364

PISTON

- accumulator

1шт.

11

S301365

RING

- waer, teflon, piston

2шт.

12

414-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

- hex, 1/2 NF x 3/4 inch

3шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

14

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch

3шт.

15

1979278C2

SUPPORT

- accumulator

1шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

18

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

CLAMP, HOSE, , Adj. #80, 4.62/5.50 Type F Worm

1шт.

19

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Includes Ref. 20 and 21 13/16"-16 ORFS x 3/4"-16 ORB

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

22

201-349

90 ELBOW,90 Degree Elbow, 13/16" - 16 Female ORFS x 3/4" - 16 Male ORB

- 90 degree, 13/16-16 swivel face seal x 3/4-16 inch adjustable O-ring, Includes: Ref. 23

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

24

183510C1

VALVE

- needle

1шт.

25

1989665C1

HOSE

- 32 inch (815 mm) long, accumulator

1шт.

26

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

- 13/16-16 face branch x face x 3/4-16 inch adjustable O-ring, Includes: Ref. 27 and 28

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
