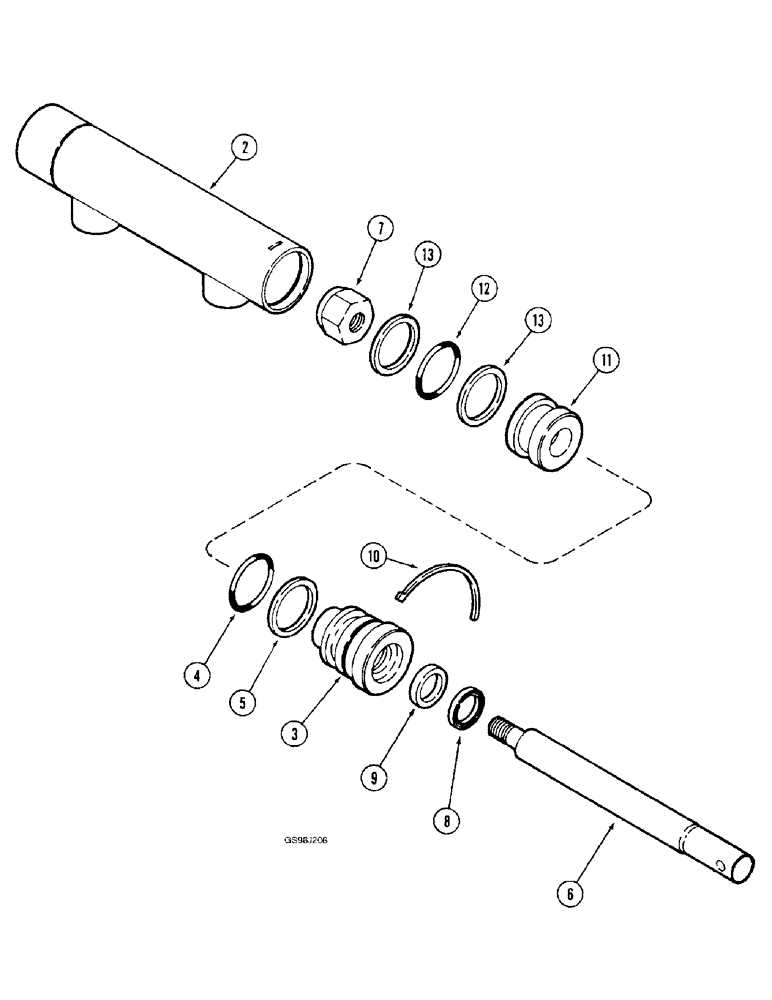

Запчасти Case IH 1660 (8-76) - SEPARATOR CLUTCH CYLINDER (07) - HYDRAULICS

1346042C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - separator clutch, part number stamped on part,no longer available, order cylinder assembly 133408C92

1шт.

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

ASSEMBLY - 2 (51) ID x 12-1/2 inch (318 mm) stroke, part number stamped on part, Includes: Ref. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly

1шт.

3

108641C1

GLAND

- cylinder, front

1шт.

4

381565R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

- 1-5/8 x 2 inch

1шт.

Part of Seal Kit, P/N 63884C92

1шт.

5

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

- O-ring backup

1шт.

Part of Seal Kit, P/N 63884C92

1шт.

6

1979793C1

PISTON ROD

ROD - piston, used with 1346042C1cylinder

1шт.

6

108639C1

PISTON ROD

ROD - piston, cylinder, used with 133408C92 cylinder

1шт.

7

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

8

532773R1

WIPER SEAL

WIPER - piston rod seal

1шт.

Part of Seal Kit, P/N 63884C92

1шт.

9

119185R1

SEAL - piston rod urethane

1шт.

Part of Seal Kit, P/N 63884C92

1шт.

10

461180R1

RETAINER

WIRE - retaining

1шт.

Part of Seal Kit, P/N 63884C92

1шт.

11

108640C2

PISTON

- cylinder

1шт.

12

381565R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

- 1-5/8 x 2 inch

1шт.

Part of Seal Kit, P/N 63884C92

1шт.

13

381850R2

BACK-UP RING,Split, 41.68mm ID x 51.18mm OD x 2.39mm Thk

WASHER - O-ring backup

2шт.

Part of Seal Kit, P/N 63884C92

1шт.

63884C92

SEAL KIT

KIT - seal, no longer available as a unit, order components separately, Includes: Ref. 4, 5, 8, 9, 10, 12 and 13

1шт.
