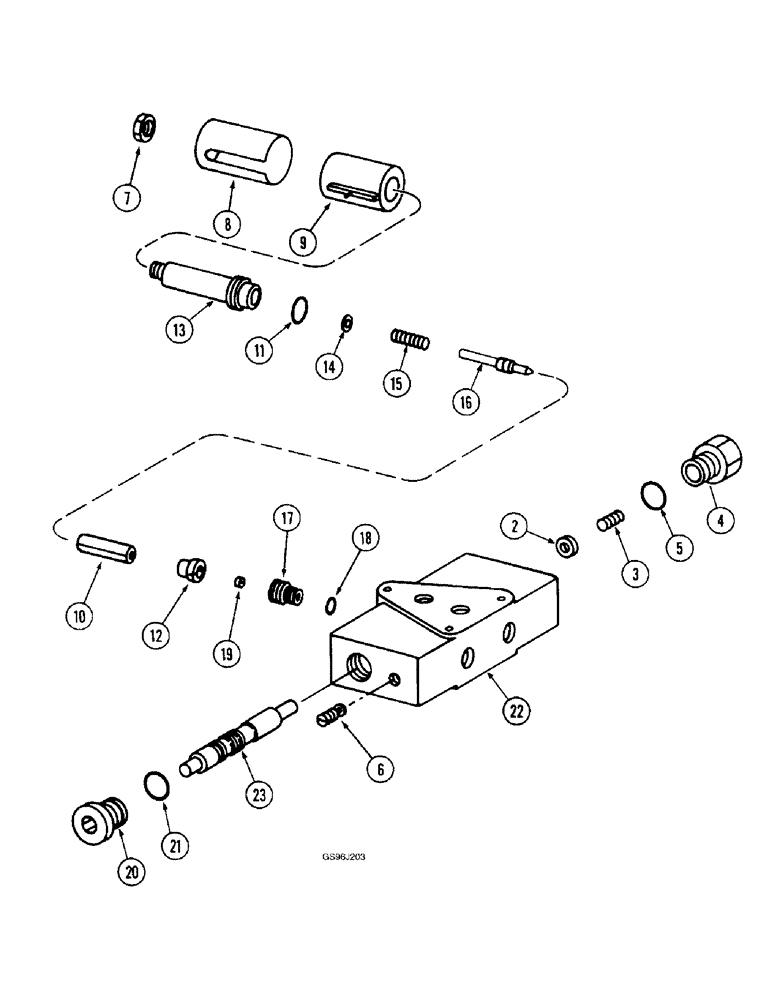

Запчасти Case IH 1660 (8-70) - FEEDER AND SEPARATOR CLUTCH VALVE, CONTROL CONCEPTS (07) - HYDRAULICS

1301171C91

VALVE

ASSEMBLY - feeder and separator clutch, Includes: Ref. 2 - 23

1шт.

2

1301687C1

WASHER

- spring

1шт.

3

1301728C1

SPRING

- valve

1шт.

4

1301686C1

CAP

PLUG - hex, special

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

6

1301631C1

PLUG,5/16" - 24 x 14.80mm, Slotted, HT

PLUG - valve body

1шт.

7

107825

NUT,Stamped, 1/2"-20

- hex, 1/2 inch NF

1шт.

8

1301632C1

CAP

COVER - coil

1шт.

9

1301730C1

VALVE

COIL - valve

1шт.

10

1301648C1

ARMATURE

- valve

1шт.

11

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

12

1301624C1

BUSHING

- poppet

1шт.

13

1301627C3

SLEEVE

- poppet (Replaces sleeve 1301627C1)

1шт.

14

1301642C1

WASHER

- spring retaining

1шт.

15

1301729C1

SPRING

- poppet

1шт.

16

110550A1

VALVE POPPET

POPPET - valve (Replaces poppet 301647C1)

1шт.

17

1301625C1

ORIFICE

- valve

1шт.

18

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

19

1301649C1

PLUG

PLUG - orifice

1шт.

20

1301688C1

PLUG

- spool

1шт.

21

529909R1

O-RING,1.78mm Thk x 2.54mm ID

- 7/64 ID x 1/4 inch wide

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 1301171C91

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL - order valve assembly 1301171C91

1шт.
