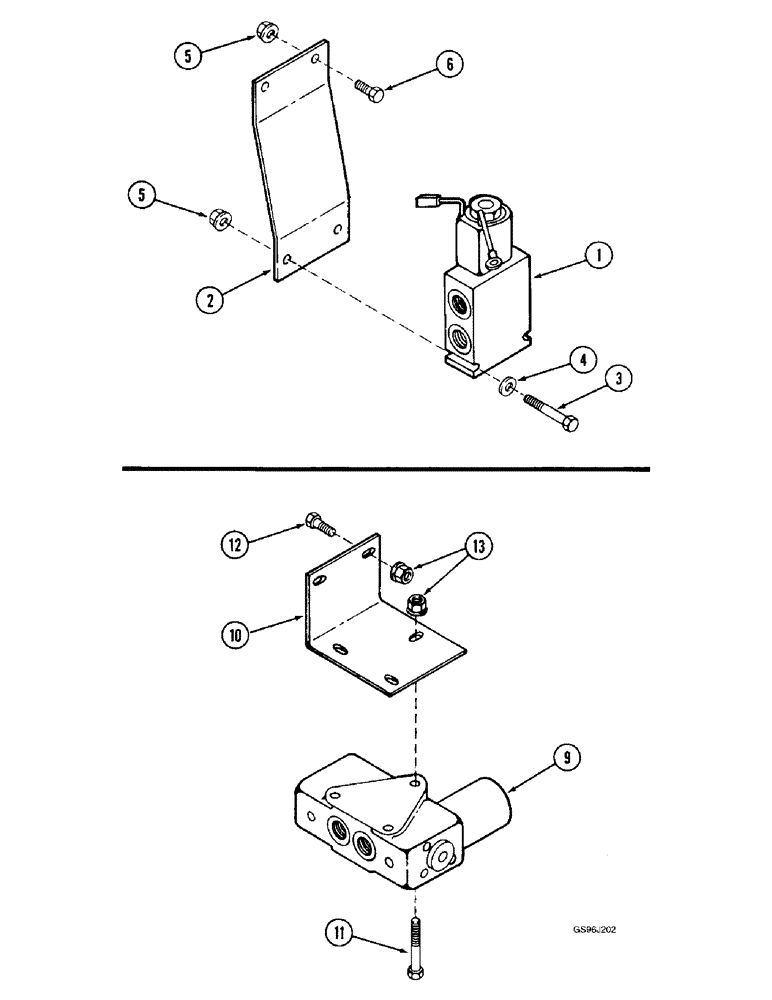

Запчасти Case IH 1660 (8-68) - SEPARATOR CLUTCH VALVE MOUNTING, MODULAR CONTROLS (07) - HYDRAULICS

1

187505C91

VALVE

ASSEMBLY - separator clutch, parts list Fig. 8-72

1шт.

2

187506C1

SUPPORT

- separator clutch valve

1шт.

3

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

4

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

- flat, 11/32 x 3/4 x 3/16 inch

2шт.

5

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

6

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

9

1301171C91

VALVE

ASSEMBLY - separator clutch, parts list Fig. 8-70, control concepts

1шт.

10

1301037C1

ANGLE

BRACKET - mounting, separator clutch valve, control concepts

1шт.

11

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

Control concepts Hex, 1/4"-20 x 2 1/4", G5

3шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, Control concepts

2шт.

13

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Control concepts Flg, USR, 1/4"-20

5шт.
