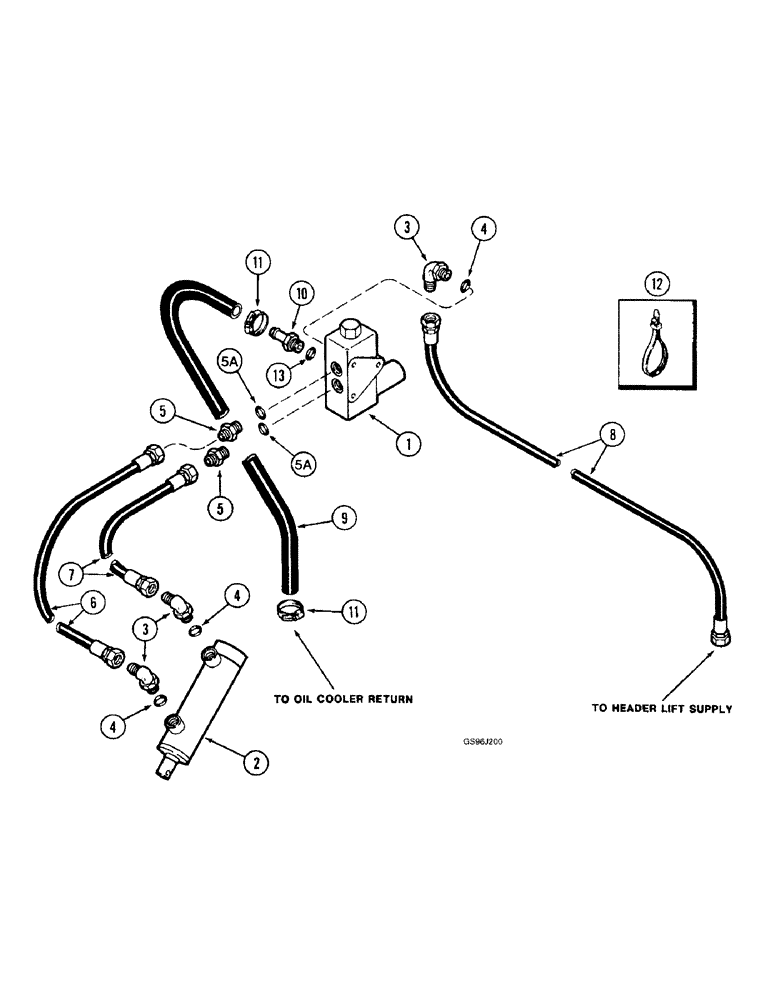

Запчасти Case IH 1660 (8-64) - SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS (07) - HYDRAULICS

1

1301171C91

VALVE

ASSEMBLY - separator clutch, parts list Fig. 8-70

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, parts list Fig. 8-76

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adjustable O-ring boss, Includes: Ref. 4

3шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 5A

2шт.

6

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

9.52 mm ID x 535.00 mm

1шт.

7

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

HOSE - 17 inch (432 mm) long

1шт.

8

1285380C2

HYDRAULIC HOSE

HOSE - 50 inch (1270 mm) long

1шт.

8

1285380C2

HYDRAULIC HOSE

HOSE - 50 inch (1270 mm) long

1шт.

9

NSS

NOT SOLD SEPARAT

HOSE - 3/8 ID x 22 inch (559 mm) long, cut from bulk hose B90924

1шт.

10

178036C1

CONNECTOR, ELEC

ADAPTER - straight, special, 3/8 inch barb end x 9/16 inch PT

1шт.

11

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, 1/4 - 5/8 inch diameter

2шт.

12

702093C1

CABLE TIE

STRAP - tie

1шт.

B90924

HOSE,0.38" ID x 50.00' Bulk, SAE 30R2 Type 1

0.38" ID x 50.00' Bulk, SAE 30R2 Type 1

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

5a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
