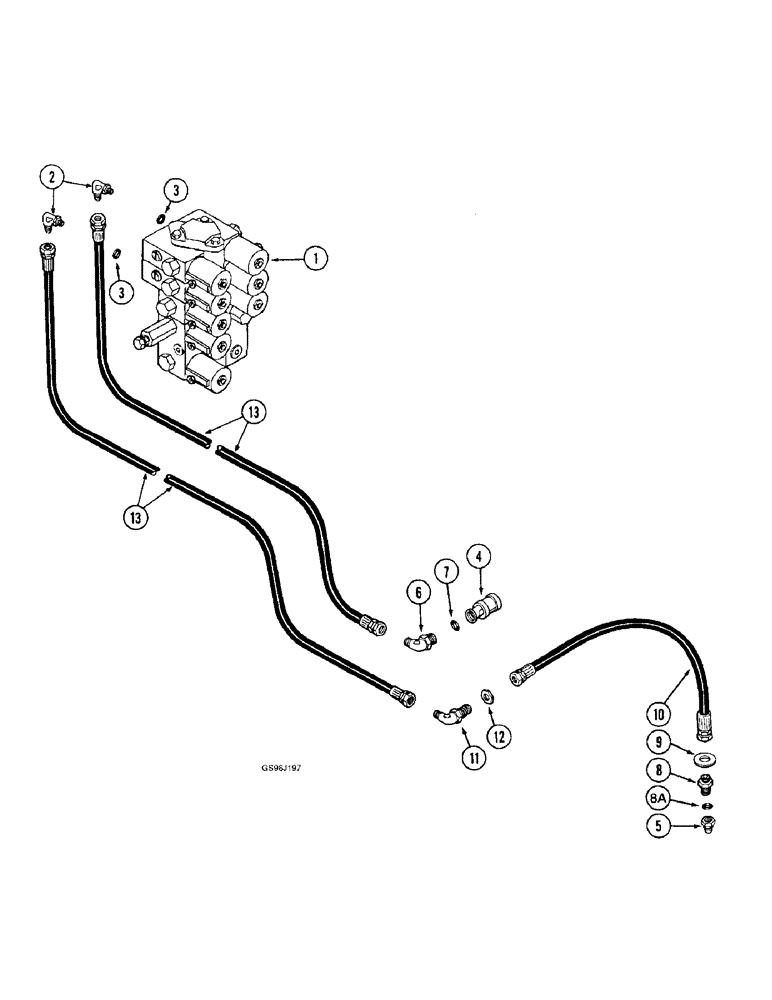

Запчасти Case IH 1660 (8-58) - REEL FORE AND AFT SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Fig. 8-32

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adjustable O-ring boss, Incl. Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

4

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing female, parts list Fig. 8-84

1шт.

5

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing male, parts list Fig. 8-84

1шт.

6

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 9/16-18 flare x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, Includes Ref. 8A

1шт.

8a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

3061127R1

THRUST WASHER

- red (Replaces washer 1327631C1)

1шт.

Paint washer Case IH red #2305

1шт.

10

1347107C1

HOSE,6.35 mm ID x 6225.00, SAE 100R1 OR 100R1 AT

- reel lift fore and aft (Replaces hose 1327608C1)

1шт.

11

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- 90 degree, 9/16-18 inch flare x bulkhead flare

1шт.

12

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

1шт.

13

1321591C1

HOSE

- reel fore and aft, 94 inch (2390 mm) long

2шт.
