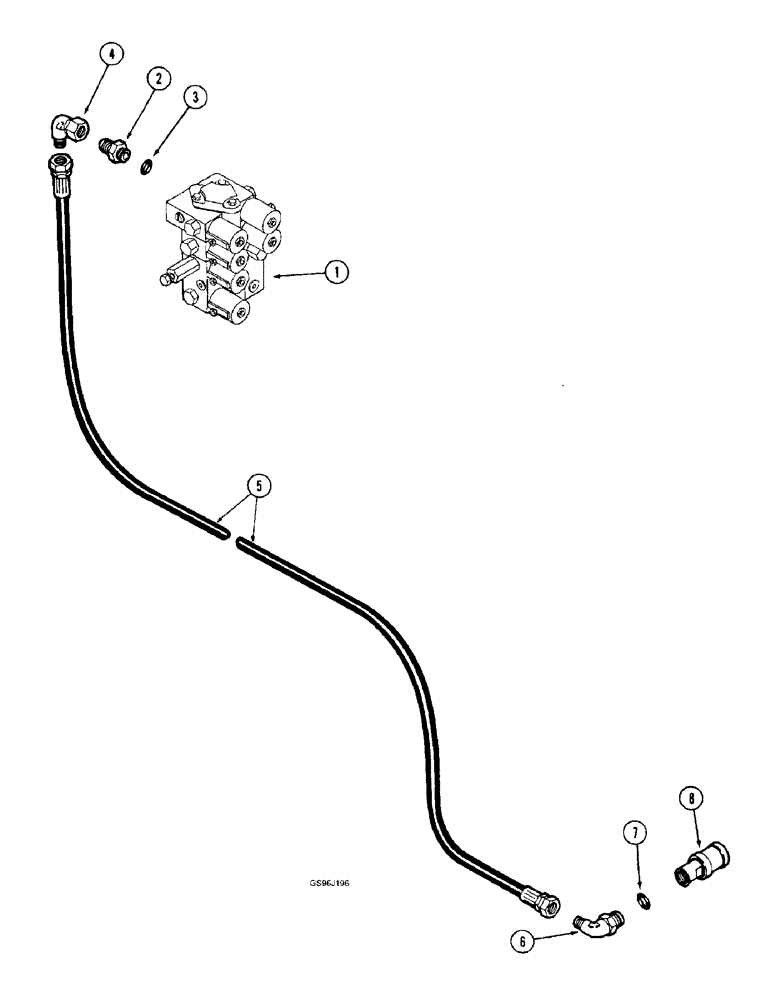

Запчасти Case IH 1660 (8-56) - REEL LIFT SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Fig. 8-32

1шт.

2

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 3

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

5

1321591C1

HOSE

- reel, 94 inch (2390 mm) long

1шт.

6

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 9/16-18 flare x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

REF

INSTRUCTION

COUPLING ASSEMBLY - self-sealing female, parts list Fig. 8-84

1шт.
