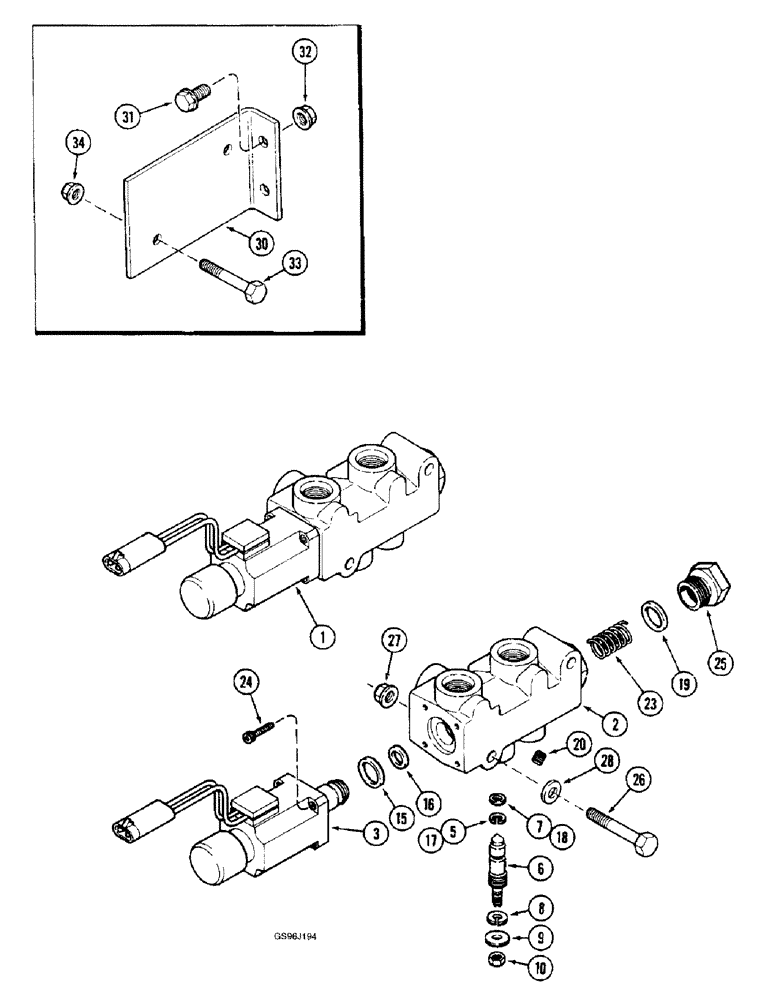

Запчасти Case IH 1660 (8-52) - REEL DRIVE, VALVE ASSEMBLY (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1272619C93
VALVE
ASSEMBLY - hydraulic, Includes: Ref. 2 - 25
1шт.
2
NSS
NOT SOLD SEPARAT
BODY - valve, order valve assembly 1272619C93
1шт.
3
92669C2
SOLENOID SWITCH
SOLENOID - switch
1шт.
92670C1
KIT
- service, manual override, Includes: Ref. 5 - 10
1шт.
5
NSS
NOT SOLD SEPARAT
WASHER - backup
1шт.
6
NSS
NOT SOLD SEPARAT
PINTLE - manual override
1шт.
7
NSS
NOT SOLD SEPARAT
O-RING - pintle
1шт.
8
NSS
NOT SOLD SEPARAT
RING - snap
1шт.
9
495-21031
WASHER,1/4"
- flat, 5/16 x 3/4 x 1/16 inch
1шт.
10
425-154
JAM NUT,Jam, 1/4"-28, G5
- hex jam, 1/4 inch NF (Replaces nut 25930R1)
1шт.
92671C1
KIT
- service, small parts, Includes: Ref. 15 - 25
1шт.
15
NSS
NOT SOLD SEPARAT
O-RING - solenoid
2шт.
16
NSS
NOT SOLD SEPARAT
O-RING - solenoid
1шт.
17
NSS
NOT SOLD SEPARAT
WASHER - override backup
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING - override
1шт.
19
NSS
NOT SOLD SEPARAT
O-RING - spool cap
1шт.
20
NSS
NOT SOLD SEPARAT
ORIFICE - valve
2шт.
23
NSS
NOT SOLD SEPARAT
SPRING - spool
1шт.
24
NSS
NOT SOLD SEPARAT
BOLT - solenoid
4шт.
25
NSS
NOT SOLD SEPARAT
PLUG - spool
1шт.
26
413-540
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
- hex, 5/16 NC x 2-1/2 inch
2шт.
27
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
2шт.
28
495-81123
WASHER,0.34" ID x 1.75" OD x 0.18" Thk
- flat, 11/32 x 1-3/4 x 11/64 inch
2шт.
30
1322417C2
SUPPORT
- valve mounting
1шт.
31
409-7612
BOLT,3/8"-16 x 1.09" OAL
- hex serrated flange, 3/8 NC x 3/4 inch, Valve mounting
2шт.
32
231-5146
FLANGE NUT,3/8"-16
Valve mounting Flg, USR, 3/8"-16
2шт.
33
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
- hex, 5/16 NC x 2-1/4 inch, Valve mounting
2шт.
34
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC, valve mounting
2шт.
Выбрано товаров: 28
