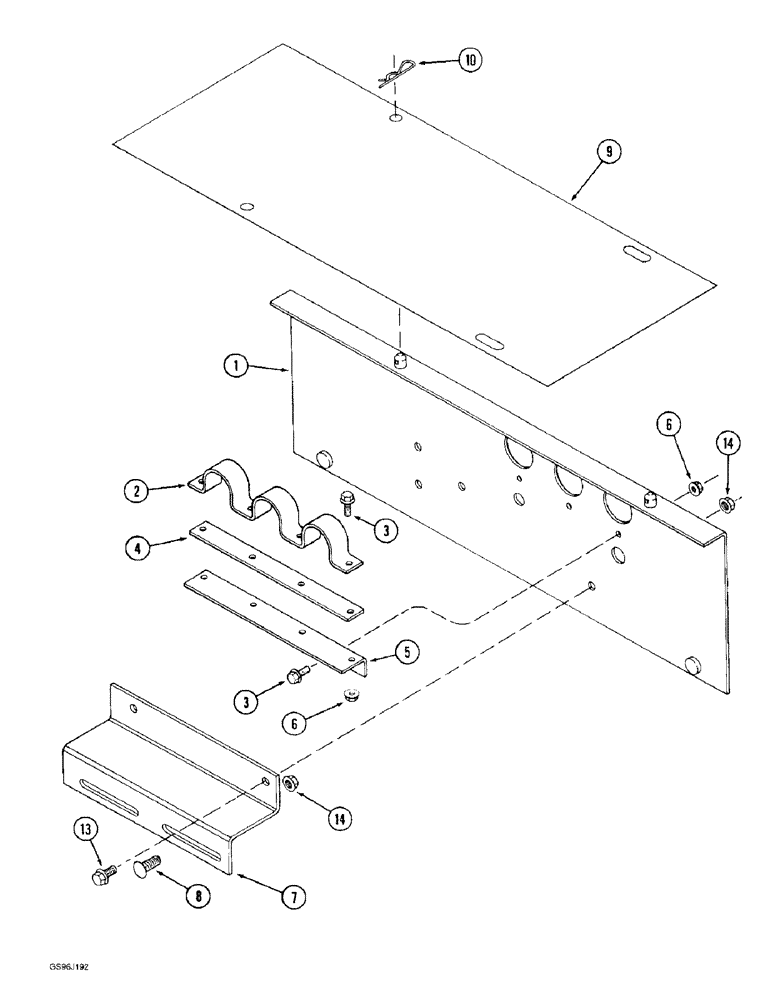

Запчасти Case IH 1660 (8-48) - REEL DRIVE COUPLING MOUNTING (07) - HYDRAULICS

1

1979811C1

SUPPORT

BRACKET - feeder coupling, 47 inch feeder (Replaces bracket 1327586C1)

1шт.

1

1979812C1

SUPPORT

BRACKET - feeder coupling, 54-1/2 inch feeder (Replaces bracket 1321909C1)

1шт.

2

1321990C1

CLAMP

- coupling

1шт.

3

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

6шт.

4

1327582C1

PLATE

SPACER - spacer

1шт.

5

1321989C1

SUPPORT

- coupling

1шт.

6

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

7

1327585C1

SUPPORT

- coupling bracket lower

1шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

9

1327604C1

PLATE

- coupling cover, 47 inch feeder

1шт.

9

1322350C1

PLATE

- coupling cover, 54-1/2 inch feeder

1шт.

10

480523R1

HAIR PIN COTTER

4шт.

13

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

14

231-5146

FLANGE NUT,3/8"-16

4шт.
