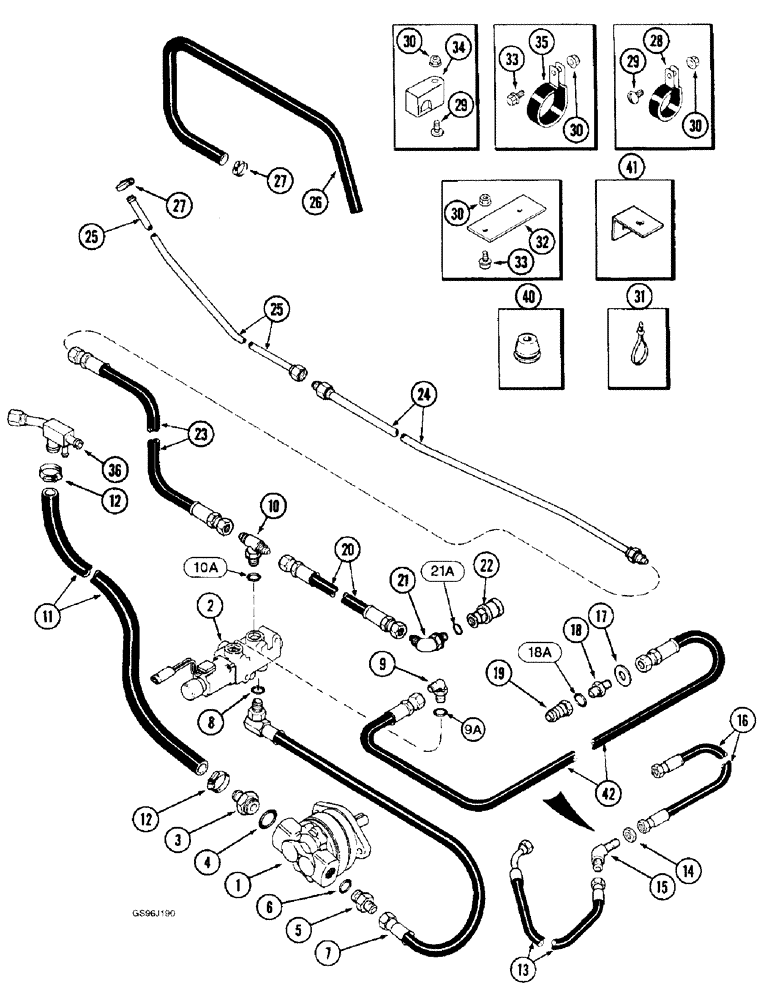

Запчасти Case IH 1660 (8-44) - REEL DRIVE SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - reel drive, parts list Fig. 8-86

1шт.

2

1272619C92

VALVE

ASSEMBLY - reel drive, parts list Fig. 8-52

1шт.

3

1282383C1

FITTING,1-5/8" - 12 ORB x

- beaded tube, 1 inch ID hose

1шт.

4

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, reducer, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

1315460C1

HOSE,12.7mm ID x 900mm L, SAE 100R7

- pump pressure, 35 inch (900 mm) long

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 9A

1шт.

9a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch adjustable O-ring branch x flare x flare, Includes: Ref. 10A

1шт.

10a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

1322376C1

LARGE HOSE,25.4mm ID x 2500mm L

HOSE - reel drive suction, 1 ID x 98 inch (2489 mm) long

1шт.

12

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

13

1327609C1

HOSE

- reel drive pressure, 20 inch (533 mm) long, if used

1шт.

14

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, , If used Blkhd, 3/4"-16

1шт.

15

1321284C1

FITTING

UNION - bulkhead, 45 degree, if used

1шт.

16

1327580C1

HOSE

- steering hand pump pressure, 40 inch (1016 mm) long, feeder to header, if used

1шт.

17

1345266C1

WASHER

- lock, white, special

1шт.

18

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 18A 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

18a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing male, parts list in Fig. 8-84

1шт.

20

1327616C1

HOSE

ASSEMBLY - reel drive return, 10 inch (254 mm) long, used with 47 inch feeder

1шт.

20

1327579C1

HOSE

- return, 12 inch (305 mm) long, used with 54-1/2 inch feeder

1шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adjustable O-ring boss, Incl. Ref. 21A

1шт.

21a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

REF

INSTRUCTION

COUPLING ASSEMBLY - self sealing female, parts list in Fig. 8-84

1шт.

23

1327576C1

HOSE

- return, 82 inch (2108 mm) long

1шт.

24

1322386C1

PIPE

TUBE - reel drive return, front

1шт.

25

196746C1

HYD TUBE

TUBE - reel drive return, rear

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE - reel drive return, 5/8 ID x 18 inch (457 mm) long, cut from bulk hose S118576X below

1шт.

27

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

28

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

29

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

3шт.

30

231-5146

FLANGE NUT,3/8"-16

12шт.

31

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, nylon

10шт.

32

196868C1

BAR

SUPPORT - cooler, no longer used, order support 1338281C1, item 41 below

1шт.

33

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

6шт.

34

183822C1

CLAMP

- return tube

3шт.

35

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type, Suction hose 1 7/8", Insul, 1/2" Bolt

3шт.

36

1310757C1

TUBE

- manifold, steering return and reel drive suction

1шт.

40

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID, hydrostatic drive control cable

1шт.

41

1338281C1

BRACKET

SUPPORT - tube (Replaces support 196868C1)

1шт.

42

1254574C2

HYDRAULIC HOSE

HOSE - 60 inch (1525 mm) long, if used (Replaces items 13-16)

1шт.

S118576X

LARGE HOSE,15.88mm ID x 7620mm L

HOSE - bulk, 25 foot (7620 mm) long, sold by the foot

1шт.
