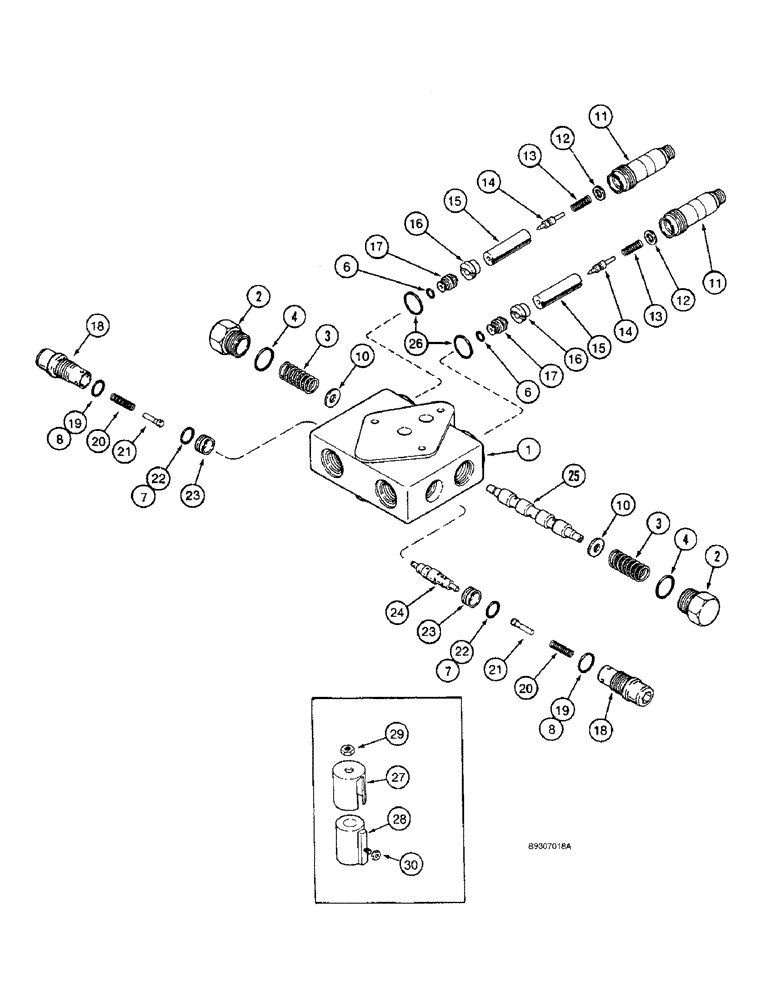

Запчасти Case IH 1660 (8-43A) - DOUBLE PILOTED VALVE, FOR AUGER SWING AND REEL FORE/AFT (07) - HYDRAULICS

124857A1

VALVE

ASSEMBLY - double piloted (Replaces valve assembly 1267035C94), Includes: Ref. 1 - 30

1-2шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 124857A1

1шт.

2

100475A1

PLUG

- end

2шт.

3

100474A1

SPRING

- plug

2шт.

1282278C2

SEAL KIT

KIT - valve seal, Includes: Ref. 4 - 9

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

5

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

Not used in this application, not shown -019, 90 Duro, .801" ID x .070" Thk

2шт.

6

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

10

1301687C1

WASHER

- spring

2шт.

11

1301627C3

SLEEVE

- valve (Replaces sleeve 301627C2)

2шт.

12

1301642C1

WASHER

- spring retaining

2шт.

13

1301640C1

SPRING

- sleeve

2шт.

14

110550A1

VALVE POPPET

POPPET - valve (Replaces poppet 1301647C1)

2шт.

15

1301648C1

ARMATURE

- valve

2шт.

16

1301624C1

BUSHING

- pole

2шт.

17

1301625C1

ORIFICE

- valve

2шт.

1986831C2

PACKAGE

VALVE ASSEMBLY - cross check, Includes: Ref. 18 - 23

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - check valve, order valve assembly 1986831C2

2шт.

19

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

2шт.

20

NSS

NOT SOLD SEPARAT

SPRING - poppet, order valve assembly 1986831C2

2шт.

21

NSS

NOT SOLD SEPARAT

POPPET - valve, order valve assembly 1986831C2

2шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

23

NSS

NOT SOLD SEPARAT

SEAT - valve, order valve assembly 1986831C2

2шт.

24

124777A1

SPOOL

- shuttle

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - valve, order valve assembly 124857A1

1шт.

26

238-8019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 8, 90 Duro

2шт.

27

1301632C1

CAP

COVER - coil

2шт.

28

1301633C1

COIL

- valve

2шт.

29

107825

NUT,Stamped, 1/2"-20

- hex stamped, 1/2 inch NF

2шт.

30

225-20210

NUT,#10-32, Brass

2шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Not used in this application, not shown

1шт.
