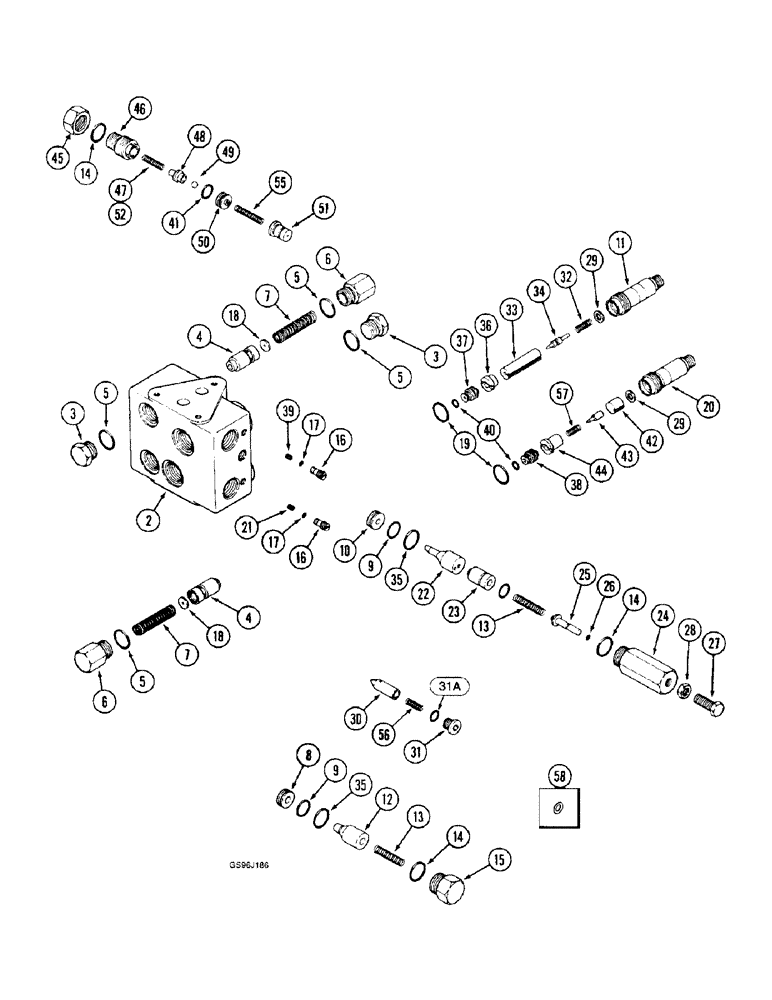

Запчасти Case IH 1660 (8-36) - HEADER VALVE (07) - HYDRAULICS

1954161C2

VALVE

ASSEMBLY - header, P.I.N. JJC0036001 and after (Replaces valve assembly 1954161C1), Includes: Ref. 2 - 58

1шт.

1267033C92

VALVE

ASSEMBLY - header, prior to P.I.N. JJC0036001, no longer available, order valve assembly 1954151C2 above, Includes: Ref. 2 - 58

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly

1шт.

3

1301653C1

PLUG,3/4" - 16 x 9.50mm

CAP - end

2шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - priority, order valve assembly

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of O-Ring and Seal Repair Kit, P/N 1282279C2

1шт.

6

1272253C1

PLUG

CAP - end

2шт.

7

1272254C1

SPRING

- spool

2шт.

8

1301657C2

ORIFICE

- valve, push-in type

1шт.

9

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

Part of O-Ring and Seal Repair Kit, P/N 1282279C2

1шт.

10

1301658C1

PISTON

ORIFICE - valve

1шт.

11

1301627C3

SLEEVE

- poppet

1шт.

12

1986839C1

LARGE PIN

POPPET - valve (Replaces poppet 1301659C1)

1шт.

13

1301660C1

SPRING

- poppet

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

Part of O-Ring and Seal Repair Kit, P/N 1282279C2

1шт.

15

1301661C1

PLUG

- hex

1шт.

16

1301631C1

PLUG,5/16" - 24 x 14.80mm, Slotted, HT

PLUG - valve body

2шт.

17

529909R1

O-RING,1.78mm Thk x 2.54mm ID

- 7/64 ID x 1/4 inch wide

2шт.

Part of O-Ring and Seal Repair Kit, P/N 1282279C2

1шт.

18

1301662C1

WASHER

RETAINER - spring

2шт.

19

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

Part of O-Ring and Seal Repair Kit, P/N 1282279C2

1шт.

20

1301641C3

TRANSMISSION SLEEVE

SLEEVE - poppet

1шт.

When ordering sleeve 1301641C3, also order poppet 1301644C2 and bushing 1301646C2, items 43 and 44.

1шт.

21

1301649C1

PLUG

PLUG - orifice

1шт.

22

1301664C1

VALVE

POPPET - lower

1шт.

23

1301665C1

PISTON

POPPET - piston

1шт.

24

1301666C1

PLUG

- adjusting

1шт.

25

1301667C1

PIN

PLUNGER - adjusting

1шт.

26

238-6006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

1шт.

Part of O-Ring and Seal Repair Kit, P/N 1282279C2

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

28

329-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

29

1301642C1

WASHER

- spring retaining

2шт.

30

1301668C2

SPOOL

POPPET - check valve

1шт.

31

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 31A Hex Soc, 7/16"-20 ORB

1шт.

31a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

Part of O-Ring and Seal Repair Kit, P/N 1282279C2

1шт.

32

1301640C1

SPRING

- poppet

1шт.

33

1301648C1

ARMATURE

- valve

1шт.

34

1301647C1

POPPET

- valve (Replaces poppet 1301647C1)

1шт.

35

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

2шт.

Part of O-Ring and Seal Repair Kit, P/N 1282279C2

1шт.

36

1301624C1

BUSHING

- poppet

1шт.

37

1301625C1

ORIFICE

- valve

1шт.

38

1301639C1

PISTON

ORIFICE - valve, 0.055 inch opening

1шт.

39

1301671C1

PLUG

- orifice

1шт.

40

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

Part of O-Ring and Seal Repair Kit, P/N 1282279C2

1шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Part of O-Ring and Seal Repair Kit, P/N 1282279C2

1шт.

42

1301643C1

VALVE

ARMATURE - valve

1шт.

43

1301644C2

SPOOL

POPPET - valve

1шт.

P/N 1301644C1 was a two-stepped poppet. It had the main body and a machined-down pointed area on the end that faced 1301646C1 bushing. P/N 1301644C2 has a machined-down area on both sides of the poppet body. When replacing the 1301644C1 with the redesigned 1301644C2, you also need to use a new bushing, 1301646C2, and a sleeve, 1301641C2. See service bulletin NHE SB 020 92.

1шт.

44

1301646C2

BUSHING,6.35mm ID x 15.88mm OD x 25.8mm L

- poppet

1шт.

45

1301674C1

NUT

- hex, special, 1 inch, use one with valve 1954161C1

2шт.

46

1301675C1

PLUG,7/8" - 14 - 11/16" - 16 x 33.30mm

PLUG - valve, use one with valve 1954161C1

2шт.

47

1272403C1

SPRING

- poppet, use with valve 1267033C92 only

1шт.

48

1301677C1

PIN

GUIDE - spring, use one with valve 1954161C1

2шт.

49

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24, use one with valve 1954161C1

2шт.

50

1301654C1

NUT

ORIFICE - valve, use one with valve 1954161C1

2шт.

51

1301678C1

VALVE

POPPET - valve, use one with valve 1954161C1

2шт.

52

1301636C1

SPRING

- poppet

1шт.

54

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk, Not shown

1шт.

Part of O-Ring and Seal Repair Kit, P/N 1282279C2

1шт.

55

1301679C1

SPRING

- orifice, use one with valve 1954161C1

2шт.

56

1301729C1

SPRING

- poppet

1шт.

57

1301821C1

SPRING

- poppet

1шт.

530575R91

SHIM KIT

KIT - shim, relief valve, Includes: Ref. 58

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.005 inch, order kit 530575R91

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.007 inch, order kit 530575R91

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.020 inch, order kit 530575R91

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.042 inch, order kit 530575R91

1шт.

1282279C2

SEAL KIT

KIT - O-ring and seal repair, Includes: Ref. 5, 9, 14, 17, 19, 26, 31A, 35, 40, 41 and 54

1шт.
