Запчасти Case IH 1660 (8-34) - CONTROL VALVE AND MOUNTING, COMBINE WITH FORE AND AFT (07) - HYDRAULICS

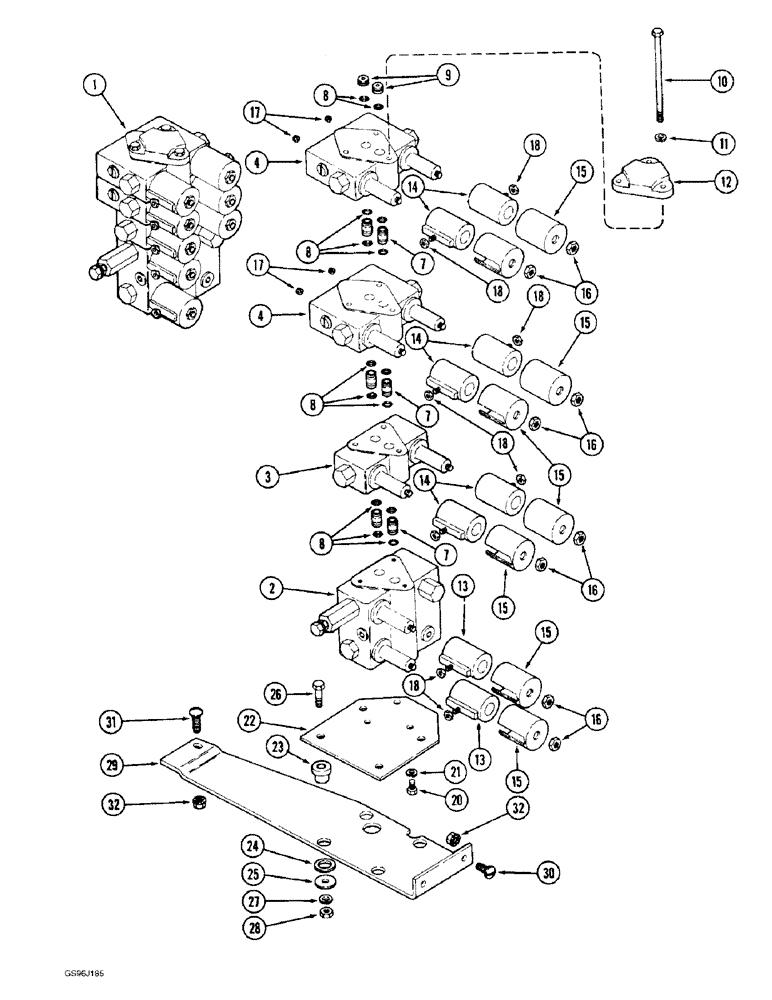

Схема запчастей Case IH 1660 - (8-34) - CONTROL VALVE AND MOUNTING, COMBINE WITH FORE AND AFT (07) - HYDRAULICS
32
16
27
15
32
4
18
9
14
28
24
3
16
18
15
18
2
4
14
17
8
29
17
15
10
25
12
15
22
8
21
16
13
7
8
16
8
7
15
26
13
7
15
18
14
11
23
20
1
18
31
30

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, order components, Includes: Ref. 2 - 18

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - header, parts list Fig. 8-36

1шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - unload single/bi-directional, parts list Fig. 8-40

1шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - double piloted, parts list Fig. 8-43A

2шт.

7

1301630C2

TUBE,.344" ID, .5" OD, 15" Length

ASSEMBLY - through, Includes: Ref. 8

6шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

14шт.

9

1301634C2

PLUG

- cap (Replaces plug 1301634C1)

2шт.

10

413-496

BOLT,Hex, 1/4" - 20 x 6", Gr 5

- hex, 1/4 NC x 6 inch

3шт.

11

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, 1/4 inch

3шт.

12

85258C1

CAP

- end

1шт.

13

1301730C1

VALVE

COIL - valve

2шт.

14

1301633C1

COIL

- valve

6шт.

15

1301632C1

CAP

COVER - coil

8шт.

16

107825

NUT,Stamped, 1/2"-20

- hex, 1/2 inch NF

8шт.

17

1301637C1

ORIFICE

- valve

4шт.

18

225-20210

NUT,#10-32, Brass

8шт.

20

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

3шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

22

183683C1

BAR

PLATE - control valve mounting

1шт.

23

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber (Replaces bushing 196504C1)

4шт.

24

495-81039

WASHER,25/32" x 1 1/4" x .120"

- flat, 25/32 x 1-1/4 x 7/64 inch

4шт.

25

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

4шт.

26

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

27

492-11038

LOCK WASHER,3/8"

4шт.

28

425-106

NUT,3/8"-16, Cl 5

4шт.

29

183684C1

SUPPORT

- control valve

1шт.

30

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

31

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

1шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.
