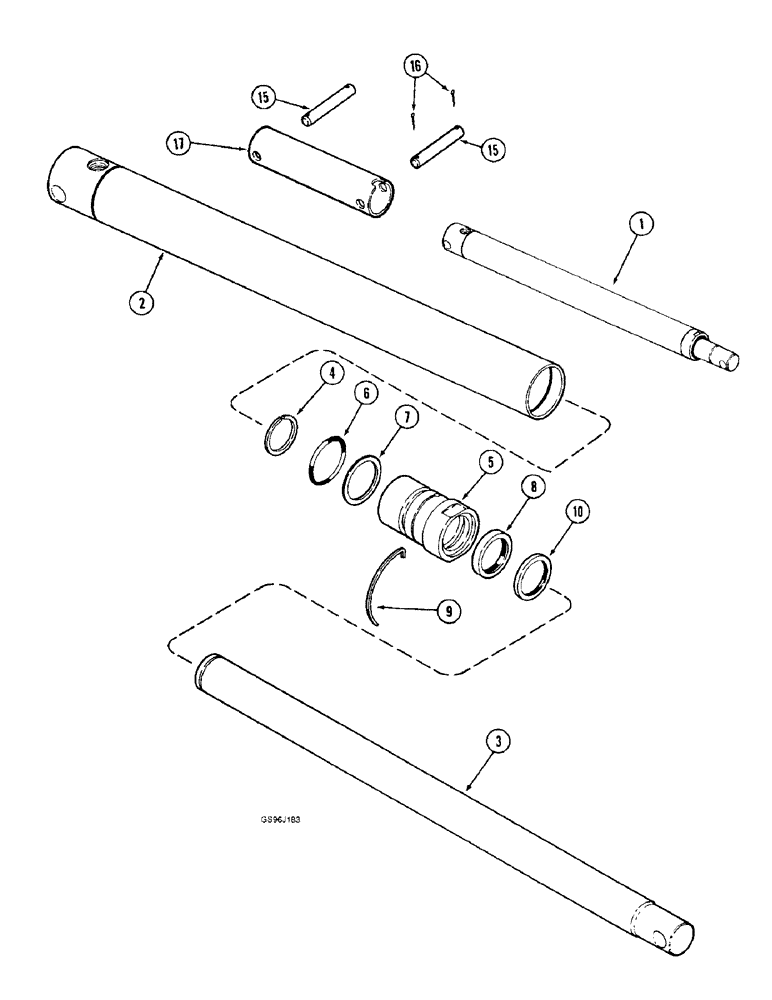

Запчасти Case IH 1660 (8-30) - HEADER LIFT CYLINDER (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - 2-5/8 (67) ID x 20-1/2 inch (521 mm) stroke, Includes: Ref. 2 - 10

1шт.

1

127779C94R

REMAN-HYD CYLINDER

1660 CASE IH AXIAL-FLOW COMBINE (PRIOR TO S/N JJC0038346) (NORTH AMERICA), PRIOR TO P.I.N. JJC0038346, Assembly, 2-5/8 (67) ID x 20-1/2 inch (521 mm) stroke (1/86-12/92)

1шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 127779C94

1шт.

3

127780C2

ROD

- piston

1шт.

4

NSS

NOT SOLD SEPARAT

RING - stop, piston rod, order kit 224718C92

1шт.

Part of Seal Kit, P/N 224718C92

1шт.

5

142568C2

HEAD

GLAND - cylinder, front

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 2-1/2 x 2-11/16 inch, front head, order kit 224718C92

1шт.

Part of Seal Kit, P/N 224718C92

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, order kit 224718C92

1шт.

Part of Seal Kit, P/N 224718C92

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod, order kit 224718C92

1шт.

Part of Seal Kit, P/N 224718C92

1шт.

9

NSS

NOT SOLD SEPARAT

RING - retaining, order kit 224718C92

1шт.

Part of Seal Kit, P/N 224718C92

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod, order kit 224718C92

1шт.

Part of Seal Kit, P/N 224718C92

1шт.

15

573762R1

PIN,25.4mm OD x 130.97mm L

- 1 x 5-5/32 inch, header lift cylinder

1шт.

15

195822C1

PIN,25.4mm OD x 228.6mm L

- 1 x 9 inch, used with third cylinder

1шт.

16

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

17

1320845C1

TUBE,77.78 mm ID, 88.9 mm OD

- cylinder extension, for 54 inch feeder

1шт.

17

1319896C1

SUPPORT ASSY.

SLEEVE - lift cylinder extension, for 47-1/2 inch feeder

1шт.

224718C92

SEAL KIT

KIT - seal, cylinder, Includes: Ref. 4, 6 - 10

1шт.
