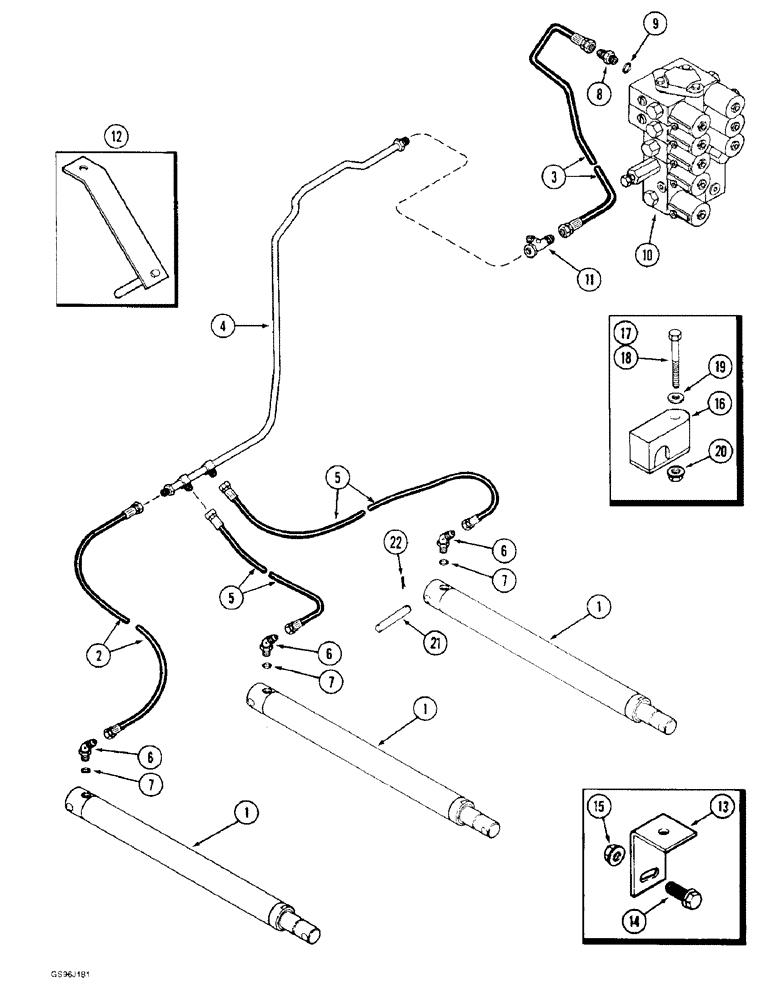

Запчасти Case IH 1660 (8-26) - HEADER LIFT CYLINDER SYSTEM, WITH THIRD LIFT CYLINDER (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - header lift, parts list in Fig. 8-30

3шт.

1

127779C94R

REMAN-HYD CYLINDER

1660 CASE IH AXIAL-FLOW COMBINE (PRIOR TO S/N JJC0038346) (NORTH AMERICA), PRIOR TO P.I.N. JJC0038346, Assembly, header lift (1/86-12/92)

3шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

3шт.

2

1345116C1

HOSE

- header lift cylinder, 39 inch (991 mm) long

1шт.

2

D52256

HOSE

- header lift cylinder, 45 inch (1143 mm) long (Replaces hose 1310709C1)

1шт.

3

90875C1

HYDRAULIC HOSE

HOSE - 29 inch (737 mm) long (Replaces hose 1310862C1)

1шт.

Where connects to Ref #8 is straight, not a 90 degree as shown in the illustration.

1шт.

4

1979996C2

HYD TUBE

TUBE - header lift cylinder (Replaces tube 1321493C2)

1шт.

THE PICTURE FOR THIS PART IS INCORRECT. THE PICTURE SHOWS EARLIER TUBE P/N 1321493C2 WHICH IS STILL AVAILABLE AND DOES NOT SUB. REF LATE MODEL 1660 P/B FOR NEWER STYLE TUBE P/N 1979996C2. JBEDFORD 11/14/00.

1шт.

5

1345115C1

HOSE

- header lift cylinder, 27 inch (686 mm) long

2шт.

5

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

- header lift cylinder, 31 inch (787 mm) long

2шт.

6

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adjustable O-ring boss, Incl. Ref 7

3шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Fig. 8-36

1шт.

11

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- used with accumulator attachment, parts list Fig. 8-78

1шт.

12

173143C2

SUPPORT

- header lift hose

1шт.

13

176394C1

ANGLE

- header lift tubes

1шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

16

183822C1

CLAMP

- header lift tube

3шт.

17

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

18

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

19

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, hardened

3шт.

20

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

21

573762R1

PIN,25.4mm OD x 130.97mm L

- 1 x 5-5/32 inch, lift cylinder retaining

2шт.

21

195822C1

PIN,25.4mm OD x 228.6mm L

- 1 x 9 inch, header lift cylinder

2шт.

22

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.
