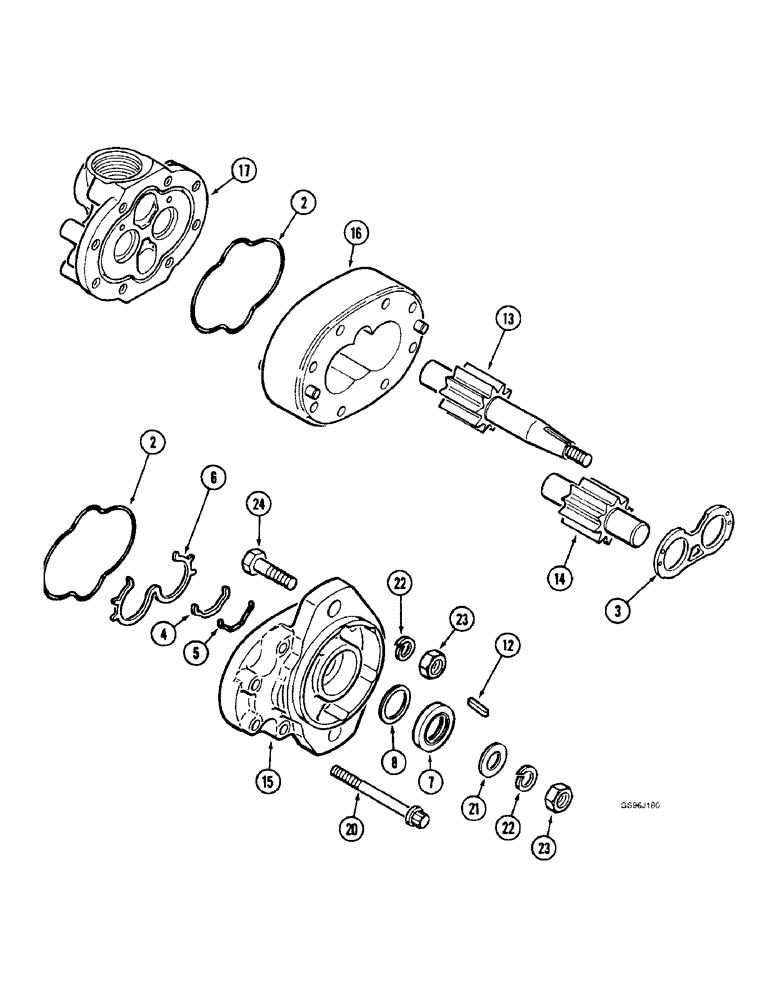

Запчасти Case IH 1660 (8-24) - AUXILIARY HYDRAULIC PUMP ASSEMBLY (07) - HYDRAULICS

1272258C92

PUMP, HYDRAULIC,30.6 CC

PUMP ASSEMBLY - header lift, 15 GPM, new, part number stamped on part (Replaces pump assembly 1272258C91), Includes: Ref. 2 - 24 and seal kit

1шт.

1272258C92R

REMAN-HYD PUMP

1660, prior to S/N JJC0038346 (1/86-12/92)

1шт.

1272258C92C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1341921C2

PUMP, HYDRAULIC

PUMP ASSEMBLY - reel drive, 15 GPM, new, part number stamped on part (Replaces pump assembly 1341921C1), Includes: Ref. 2 - 24 and seal kit

1шт.

87607373R

REMAN-HYD PUMP

1660 PRIOR TO S/N JJC0038346 (1/86-12/92), Reman for New P/N 1949284C1

1шт.

87607373C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1272257C92

PUMP, HYDRAULIC

PUMP ASSEMBLY - auxiliary hydraulic, 12-1/2 GPM, new (Replaces pump assembly 1272257C91), Includes: Ref. 2 - 24 and seal kit

1шт.

87607373R

REMAN-HYD PUMP

1660 PRIOR TO S/N JJC0038346 (1/86-12/92), Reman for New P/N 1272257C92

1шт.

87607373C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1272638C2

SEAL KIT

KIT - seal, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - body, order kit 1272638C2

2шт.

3

NSS

NOT SOLD SEPARAT

PLATE - wear, order kit 1272638C2

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - bearing, order kit 1272638C2

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - molded, order kit 1272638C2

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - back-up, order kit 1272638C2

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - shaft, order kit 1272638C2

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - backup, order kit 1272638C2

1шт.

12

H173963

BUCKET TOOTH KEY

KEY - lock, shaft

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - drive, order pump assembly

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR - idler, order pump assembly

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - front, order pump assembly

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - pump, order pump assembly

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - rear, order pump assembly

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - pump retaining, order pump assembly

8шт.

21

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

1шт.

22

492-11038

LOCK WASHER,3/8"

3шт.

23

425-106

NUT,3/8"-16, Cl 5

3шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.
