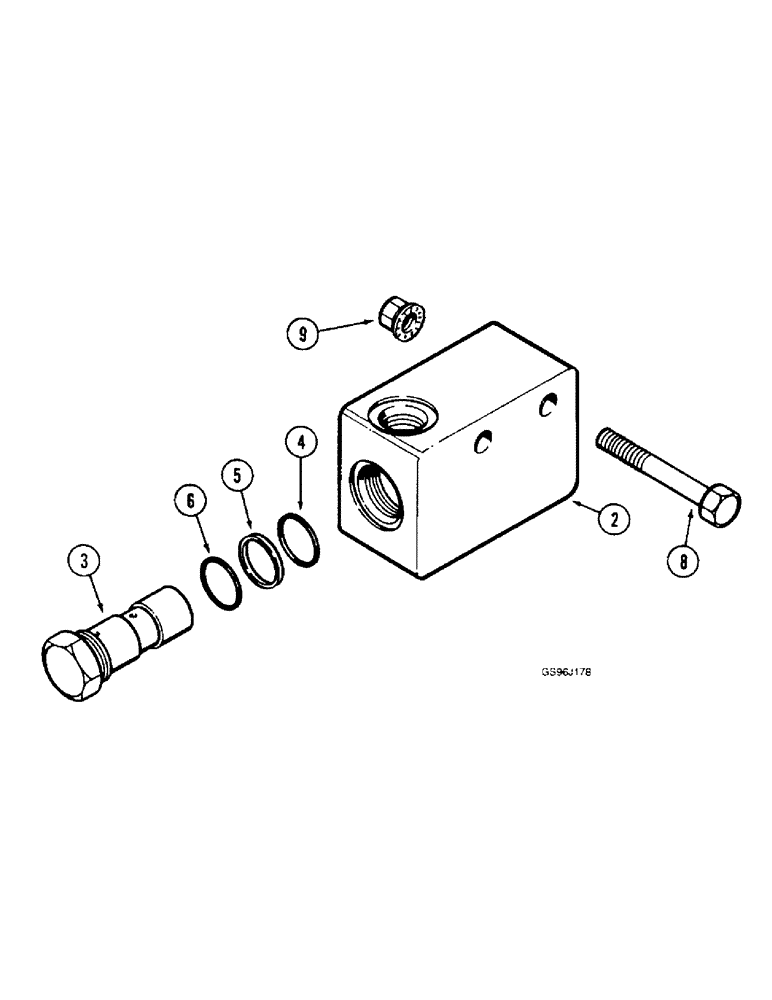

Запчасти Case IH 1660 (8-20) - RELIEF VALVE (07) - HYDRAULICS

1971746C1

VALVE

ASSEMBLY - relief, Includes: Ref. 2 - 6

1шт.

549528R93

VALVE

ASSEMBLY - relief, no longer used, order valve assembly 1971746C1, Includes: Ref. 2 - 6

1шт.

2

403187R1

BLOCK

BODY - valve

1шт.

3

396729R93

VALVE

- relief

1шт.

4

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

5

378985R2

BACK-UP RING

RING - backup

1шт.

6

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

8

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

9

231-5146

FLANGE NUT,3/8"-16

2шт.
