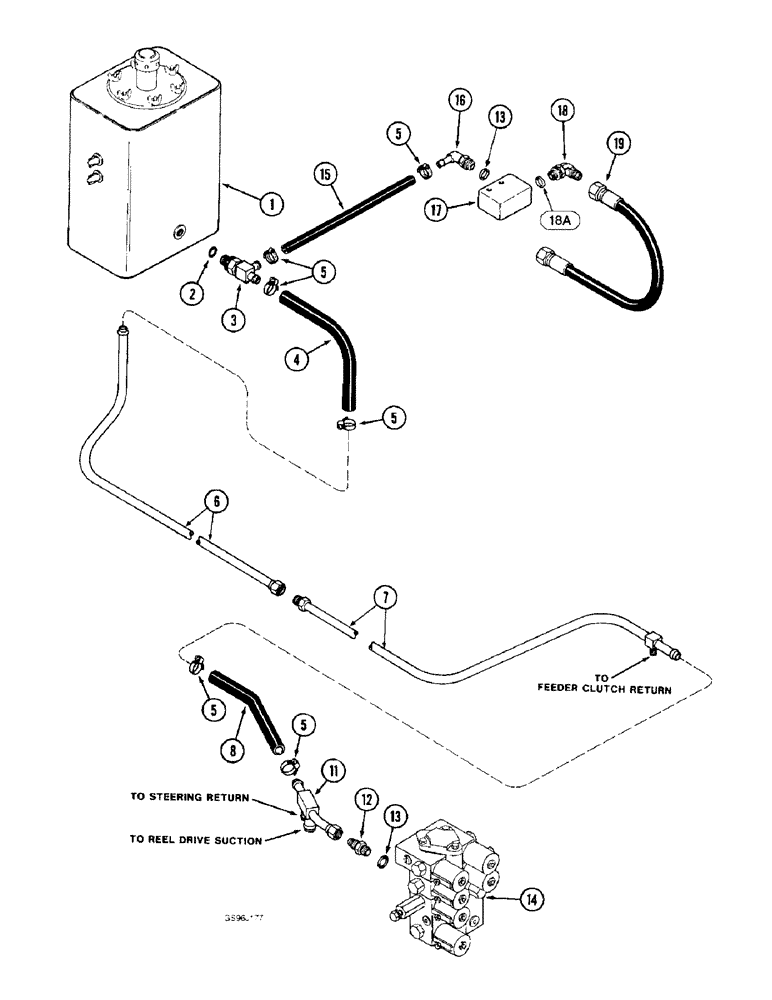

Запчасти Case IH 1660 (8-18) - HEADER LIFT RETURN SYSTEM, P.I.N. JJC0036001 AND AFTER (07) - HYDRAULICS

1

1301237C92

RESERVOIR

ASSEMBLY - hydraulic oil, parts list in Fig. 8-02

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

172059C1

TEE

- adjustable

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - 3/4 ID x 18 inch (457 mm) long, cut from bulk hose 180720C2

1шт.

5

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

6шт.

6

196743C2

HYD TUBE

TUBE - header lift return, rear

1шт.

7

196744C1

HYD TUBE

TUBE - header lift return, front

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - 3/4 ID x 7 inch (178 mm) long, cut from bulk hose 180720C2

1шт.

11

1310757C1

TUBE

- header lift and steering return

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Fig. 8-34

1шт.

15

1957369C1

HYDRAULIC HOSE,15.90 mm ID x 419.00 mm, SAE 30R2 Type 1

Return, Relief Valve 15.90 mm ID x 419.00 mm, SAE 30R2 Type 1

1шт.

16

1321659C1

ELBOW,90 Degree, 7/8"-14 O-Ring x 5/8" Barb end

- 90 degree adjustable

1шт.

17

1971746C1

VALVE

ASSEMBLY - relief, parts list Fig. 8-20

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adjustable O-ring boss, Incl. Ref. 18A

1шт.

18a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

H169052

HYDRAULIC HOSE,12.7mm ID x 508mm L, SAE 100R1

Relief Valve, Replaces Tube 1957328C1 12.70 mm ID x 508.00 mm, SAE 100R1

1шт.

180720C2

HOSE ASSY.

HOSE - bulk, 300 inch (7620 mm) long, sold by the piece

1шт.
