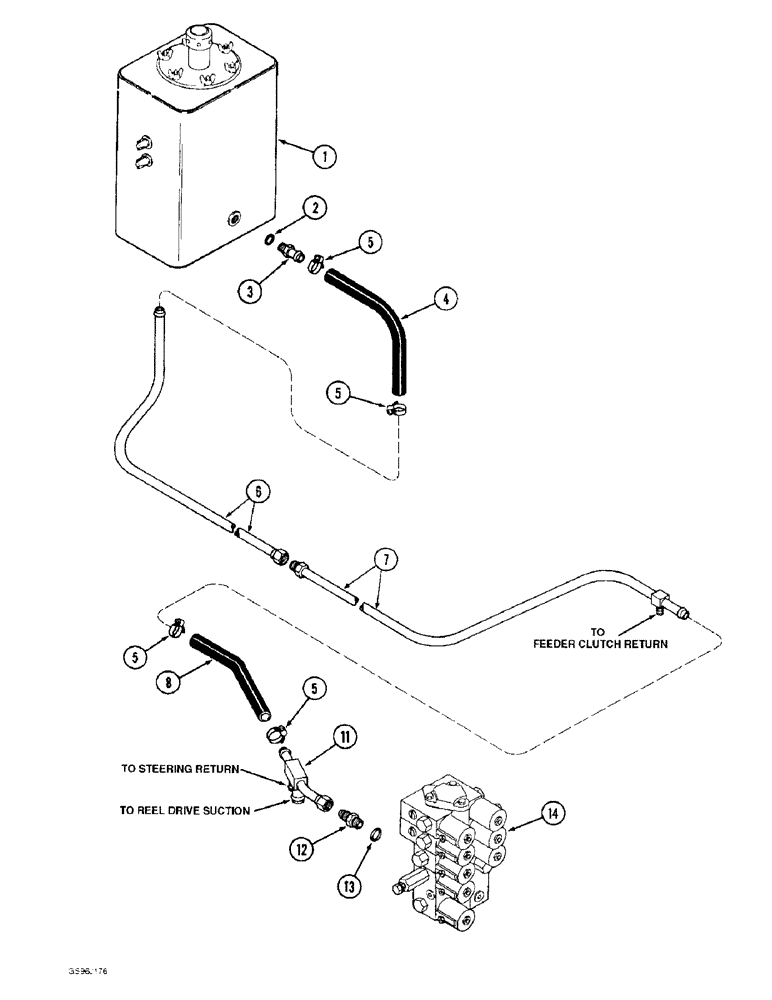

Запчасти Case IH 1660 (8-16) - HEADER LIFT RETURN SYSTEM, PRIOR TO P.I.N. JJC0036001 (07) - HYDRAULICS

1

1301237C92

RESERVOIR

ASSEMBLY - hydraulic oil, parts list Fig. 8-02

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

470420R11

FITTING

CONNECTOR - hydraulic, 1-1/16 thread x 3/4 inch barb end, system return

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - 3/4 ID x 18 inch (457 mm) long, cut from bulk hose 180720C2

1шт.

5

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

4шт.

6

196743C2

HYD TUBE

TUBE - header lift return, rear

1шт.

7

196744C1

HYD TUBE

TUBE - header lift return, front

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - 3/4 ID x 7 inch (178 mm) long, cut from bulk hose 180720C2

1шт.

11

1310757C1

TUBE

- header lift, and steering return

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Fig. 8-32

1шт.

180720C2

HOSE ASSY.

HOSE - bulk, 300 inch (7620 mm) long, sold by the piece

1шт.
