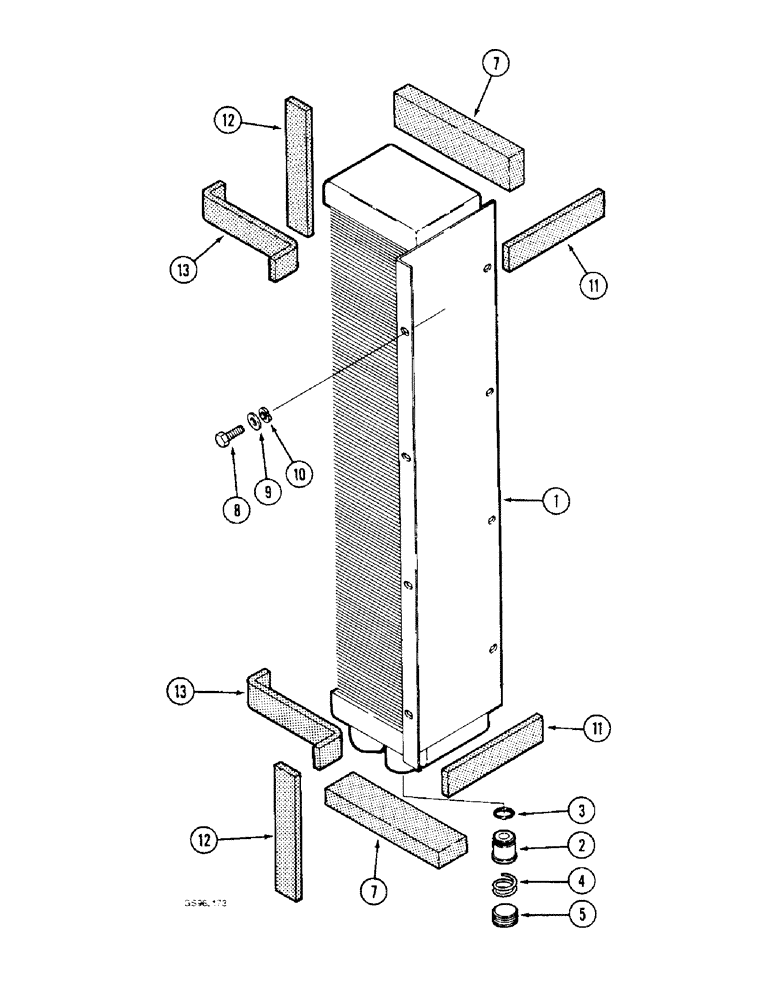

Запчасти Case IH 1660 (8-10) - OIL COOLER (07) - HYDRAULICS

1

1265691C91

COOLER ASSY.

COOLER ASSEMBLY - oil, Includes: Ref. 2 - 5

1шт.

2

146547C1

VALVE

- check

1шт.

3

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk

1шт.

4

61222C1

SPRING

- check valve

1шт.

5

221-846

PLUG,Hex Soc, 1"-11 1/2

- hex socket, 1 inch PT(Replaces plug 444679)

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - foam, 6 inch (152 mm) long, cut from bulk strip 1338147CX below

2шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

9

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

8шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

11

188062C1

STRIP

SEAL - oil cooler, 5-1/2 inch (140 mm) long, cut from bulk seal 1338148CX below

2шт.

12

1312858C1

STRIP

SEAL - oil cooler, if equipped

2шт.

13

1312856C1

SEALING STRIP

SEAL - oil cooler, if equipped

2шт.

1338147CX

SEAL

STRIP - bulk, 50 foot (15240 mm) roll, sold by the foot

1шт.

1338148CX

SEAL

- bulk, foam, adhesive-backed, 50 foot (15240 mm) long

1шт.
