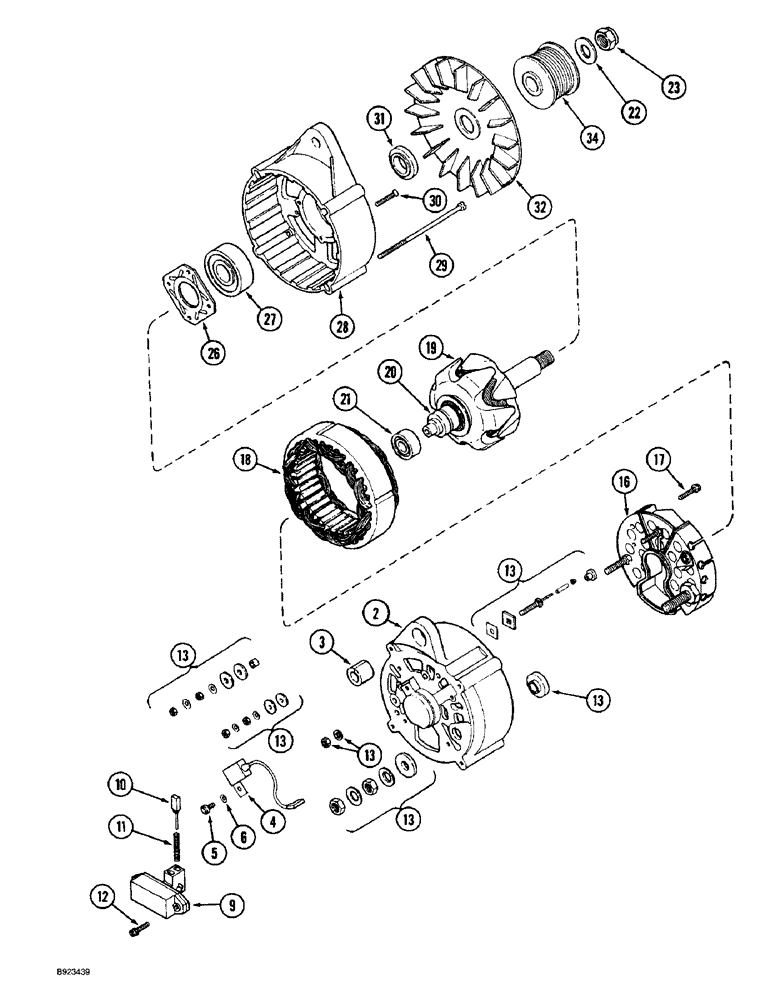

Запчасти Case IH 1660 (4-72) - ALTERNATOR (06) - ELECTRICAL

91448C2

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 110 ampere (Replaces alternator assembly 91448C1), Includes: Ref. 3 - 32

1шт.

91448C2GV

ALTERNATOR

Value, 110 Amp

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 100 AMP Alternator

1шт.

2

1964731C1

HOUSING

HOUSING - collector ring end

1шт.

3

1964737C1

BUSHING,13.5mm ID x 20mm OD x 20mm L

BUSHING - expansion

1шт.

4

3079389R1

CAPACITOR

CAPACITOR - suppression

1шт.

5

684857C1

SCREW

SCREW - fillister head, capacitor retaining

1шт.

6

A186196

WASHER

WASHER - special, retaining screw

1шт.

9

111899A1

REGULATOR

REGULATOR - voltage (Replaces regulator 1964733C1)

1шт.

10

3079394R91

BRUSH SET

SET - brush

1шт.

11

1964734C1

SPRING

SPRING - compression

2шт.

12

A186194

SCREW,M4 x 18mm

SCREW, hex flange, special

2шт.

13

1964738C1

REPAIR KIT

KIT, REPAIR, Terminal hardware

1шт.

16

1964732C1

RECTIFIER

RECTIFIER - alternator

1шт.

17

A187504

SCREW

BOLT - hex flange, special

2шт.

18

1964735C1

STATOR

STATOR - alternator

1шт.

19

1964728C1

ROTOR

ROTOR - alternator

1шт.

20

3079410R1

RING

RING - collector

1шт.

21

1964730C1

BALL BEARING,12mm ID x 32mm OD x 14mm W

BEARING - ball

1шт.

22

495-51066

WASHER,9/16" x 1 1/4" x .1"

WASHER - flat, 21/32 x 1-1/4 x 3/32 inch

1шт.

23

231-46110

LOCK NUT,5/8"-18, GB

NUT - hex, self-locking, 5/8 inch NF, rotor retaining

1шт.

26

1964727C1

PLATE

PLATE - bearing retaining

1шт.

27

1964726C1

BALL BEARING,22.2mm ID x 56mm OD x 21mm W

BEARING - ball, drive end

1шт.

28

1964725C1

HOUSING

HOUSING - drive end

1шт.

29

1964748C1

SCREW

BOLT - fillister head, special

4шт.

30

1964750C1

SCREW

SCREW - machine, flat head, special, retaining

4шт.

31

1964729C1

SPACER

SPACER - ring

1шт.

32

1964736C1

FAN

FAN - alternator

1шт.

34

A189616

PULLEY

PULLEY - drive (Replaces pulley J902099)

1шт.
