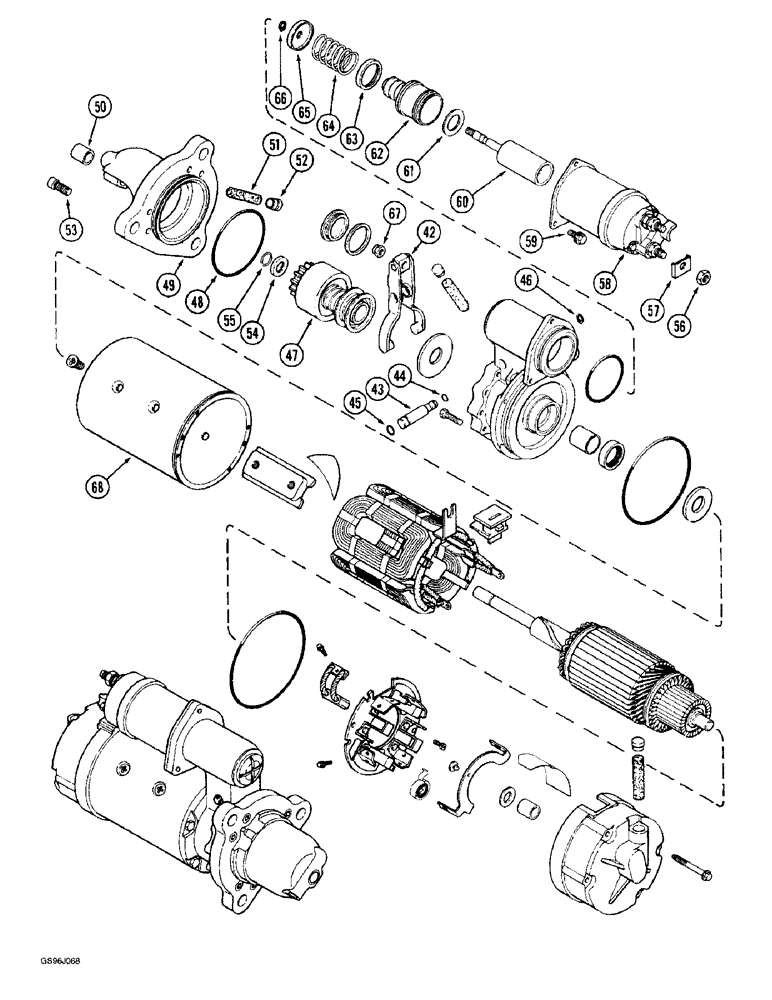

Запчасти Case IH 1660 (4-64) - STARTER, HEAVY DUTY SEALED (CONTD) (06) - ELECTRICAL

REF

INSTRUCTION

STARTER ASSEMBLY - engine, Includes: Ref. 42 - 70 and all parts listed below Ref. 70 and parts in Fig. 4-62

1шт.

42

A49583

LEVER

- shift

1шт.

43

A187739

SHAFT

- shift lever

1шт.

Used with starter assembly 1993891.

1шт.

43

A42199

PIN

SHAFT - shift lever

1шт.

Used with starter assemblies 1990321 and 1993791.

1шт.

44

A47259

O-RING,0.244" ID x 0.391" OD

- shift lever shaft

1шт.

45

A47258

O-RING,0.369" ID x 0.515" OD

- 1/4 ID x 1/16 inch wide, shift lever shaft

1шт.

46

100-1137

SNAP RING,#37, Ext

Ring, Snap, , shift lever shaft #37, Ext

1шт.

47

A49754

DRIVE

MOTOR - drive

1шт.

48

A43854

O-RING,3.237" ID x 0.106" THK

- housing

1шт.

49

1986351

HOUSING

ASSEMBLY - drive end, Includes: Ref. 50 - 52

1шт.

50

A40868

BUSHING

- frame, commutator

1шт.

51

A49567

WICK

- oil, armature bushing

1шт.

52

A49573

PLUG

- oil wick

1шт.

53

10499637

SCREW

- drive housing

6шт.

Used with starter assembly 1993891.

1шт.

53

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing

6шт.

Used with starter assemblies 1990321 and 1993791.

1шт.

54

A49585

STOP

- pinion

1шт.

55

A49586

CLIP,ELECTRICAL

RING - retaining

1шт.

56

425-106

NUT,3/8"-16, Cl 5

Field coil connect to switch 3/8"-16, G5

1шт.

57

1987678

CLIP

- field coil, Serial Range: connect-switch

1шт.

58

1115628

SOLENOID

SWITCH ASSEMBLY - solenoid,

1шт.

58

1115612

SOLENOID SWITCH

SWITCH ASSEMBLY - solenoid, used with starter assembly 1993791, Includes: Ref. 59 - 68

1шт.

58

1115589

SOLENOID SWITCH

SWITCH ASSEMBLY - solenoid, used with starter assembly 245153C92, Includes: Ref. 59 - 68

1шт.

59

A49587

CAPTIVE WASHER SCREW,Hex, 1/4" - 20 x 0.50"

SCREW - special, solenoid mounting

3шт.

60

A49757

PLUNGER

- solenoid

1шт.

61

A41922

WASHER

- plunger seat

1шт.

62

A49589

BOOT

- plunger

1шт.

63

A43380

BACK-UP RING

SEAT - plunger spring

1шт.

64

A41242

SPRING

- plunger return

1шт.

65

A43419

SEAT

- spring

1шт.

66

100-1137

SNAP RING,#37, Ext

Ring, Snap, , plunger assembly #37, Ext

1шт.

67

131-489

LOCK NUT,5/16"-24, G8

NUT - hex, self locking, plunger rod guide adjusting

1шт.

68

NSS

NOT SOLD SEPARAT

HOUSING - field coil, order starter assembly

1шт.

69

10456430

SHIELD

- solenoid terminal, not shown

1шт.

Used with starter assembly 1993891.

1шт.

70

10468109

CONNECTOR, ELEC

CONNECTOR - not shown

1шт.

Used with starter assembly 1993891.

1шт.

30887R1

12 PT SCREW,M16 x 40mm, Cl 12.9

BOLT - hex, M16 x 40 mm

3шт.

Used with starter assemblies 1990321 and 1993791.

1шт.

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch

3шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

329-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

Used with starter assemblies 1990321 and 1993791.

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

225-14210

NUT,#10-32

1шт.
