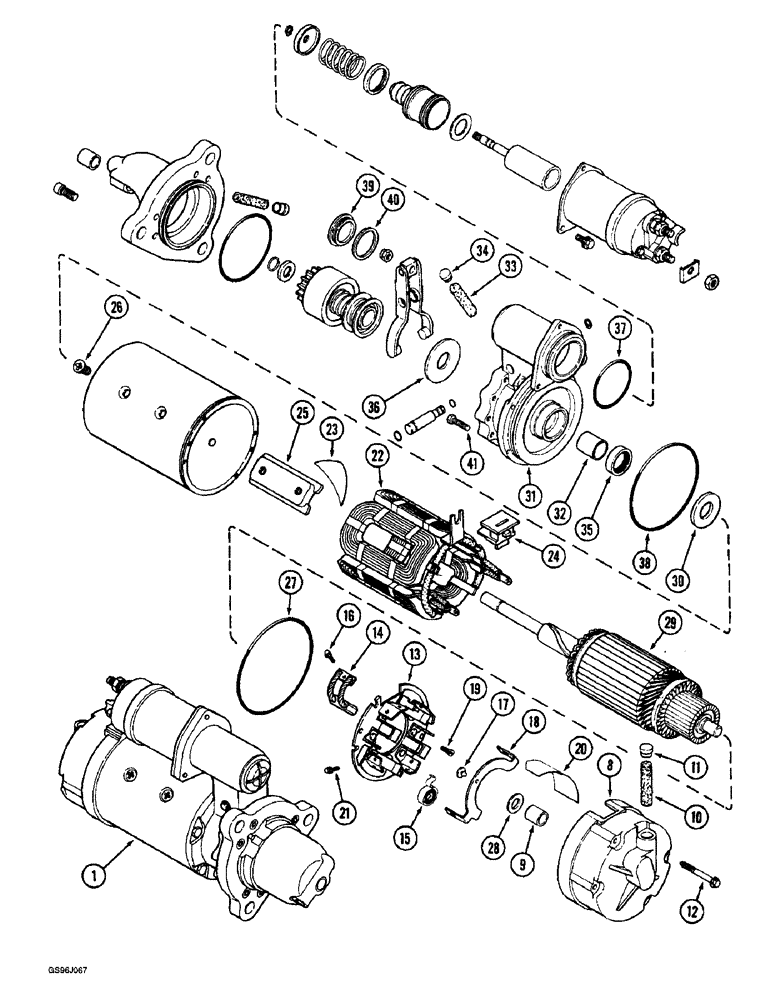

Запчасти Case IH 1660 (4-62) - STARTER, HEAVY DUTY SEALED (06) - ELECTRICAL

1

1993891

STARTING MOTOR

STARTER ASSEMBLY - engine, (Replaces starter assemblies 1993791, 1990321, 245153C92), Includes: Ref. 8 - 41 in this figure and parts in Fig. 4-64

1шт.

1

1993791

STARTING MOTOR

STARTER ASSEMBLY - engine, stamped 1993791, no longer available, order starter assembly 1993891, Includes: Ref. 8 - 41 in this figure and parts in Fig. 4-64

1шт.

1

245153C92

STARTING MOTOR

STARTER ASSEMBLY - engine, stamped 1990321, no longer available, order starter assembly 1993891, Includes: Ref. 8 - 41 in this figure and parts in Fig. 4-64

1шт.

1

104211A1GV

STARTER MOTOR

Value

1шт.

1

104211A1R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104211A1C

CORE-STARTER

Return Number

1шт.

8

10468709

HOUSING

FRAME ASSEMBLY - commutator end, Includes: Ref. 9 - 11

1шт.

Used with starter assembly 1993891.

1шт.

8

1985315

FRAME

FRAME ASSEMBLY - commutator end, Includes: Ref. 9 - 11

1шт.

Used with starter assemblies 1990321 and 1993791.

1шт.

9

A40868

BUSHING

BUSHING - frame, commutator

1шт.

10

A49769

WICK

WICK - oil, armature bushing

1шт.

Used with starter assembly 1993891.

1шт.

10

A49567

WICK

WICK - oil, armature bushing

1шт.

Used with starter assemblies 1990321 and 1993791.

1шт.

11

A49573

PLUG

PLUG - oil wick

1шт.

12

A49574

CAPTIVE WASHER SCREW,Torx, #10 - 32 x 2.28"

BOLT- commutator frame, includes washer

4шт.

13

14068705

BRUSH PLATE ASSEMBLY - commutator frame, Includes: Ref. 14 and 15

1шт.

Used with starter assembly 1993891.

1шт.

13

1985303

PLATE

BRUSH PLATE ASSEMBLY - starter , Includes: Ref. 14 and 15

1шт.

Used with starter assemblies 1990321 and 1993791.

1шт.

14

1852889

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

1шт.

15

A49575

SPRING

SPRING - brush

4шт.

16

A47894

SCREW,#8 - 32 x 5/16"

SCREW - brush retainer

4шт.

Used with starter assembly 1993891.

1шт.

16

A49576

SELF-TAP SCREW,Hex Washer, #8 - 32 x 0.44"

SCREW - brush attaching

4шт.

Used with starter assemblies 1990321 and 1993791.

1шт.

17

A49561

INSULATOR

INSULATOR - conductor

1шт.

18

A49577

TERMINAL STRIP

CONDUCTOR - starter

1шт.

19

A49753

PIN, SPLIT (COTTER)

PIN, COTTER PIN - roll

2шт.

Used with starter assembly 1993891.

1шт.

19

177-134

SCREW,Sl Fil Hd, #10 - 32 x 7/16""

SCREW - machine, brush plate

2шт.

Used with starter assemblies 1990321 and 1993791.

1шт.

20

NSS

NOT SOLD SEPARAT

INSULATOR - brush plate, if equipped

2шт.

21

A47894

SCREW,#8 - 32 x 5/16"

SCREW - field coil lead to brush holder

2шт.

22

10496940

COIL

COIL - field

1шт.

Used with starter assembly 1993891.

1шт.

22

1985324

COIL

COIL - field

1шт.

Used with starter assemblies 1990321 and 1993791.

1шт.

23

A414977

INSULATOR - field coil

2шт.

24

A49500

RUBBER INSULATOR

INSULATOR - outer field terminal, not shown

1шт.

Used with starter assembly 1993891.

1шт.

24

A49501

RUBBER INSULATOR

INSULATOR - inner field terminal not shown

1шт.

Used with starter assembly 1993891.

1шт.

24

1985318

GROMMET

GROMMET - field coil

1шт.

Used with starter assemblies 1990321 and 1993791.

1шт.

25

A49579

PLATE

POLE SHOE - field

4шт.

26

142955A1

SCREW,Torx Flat Hd, Csk, 3/8" - 24 x 0.735"

SCREW - machine, flat phillips, 3/8 NF x 21/32 inch

8шт.

Used with starter assembly 1993891.

1шт.

26

188-100

SCREW,Cross Flat Hd, 3/8"-24 x 5/8"

SCREW - machine, flat phillips, 3/8 NF x 21/32 inch

8шт.

Used with starter assemblies 1990321 and 1993791.

1шт.

27

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

O-RING, -158, 70 Duro, 4.737" ID x .103" Thk

1шт.

28

195-2056

WASHER,5/8" x 1" x .065"

WASHER - flat, 9/16 x 1 x 1/16 inch.

1шт.

29

1985249

ARMATURE

ARMATURE - starter

1шт.

30

A49625

SPACER

SPACER - armature, between armature and lever housing

1шт.

31

A49580

HOUSING

HOUSING ASSEMBLY - lever, Includes: Ref. 32 - 41

1шт.

32

A49581

BUSHING

BUSHING - housing

1шт.

33

A49567

WICK

WICK - oil, armature bushing

1шт.

34

A49573

PLUG

PLUG - oil wick

1шт.

35

A49562

OIL SEAL

SEAL - oil

1шт.

36

A49582

WASHER

WASHER - brake

1шт.

37

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

O-RING, , Housing -228, 70 Duro, 2.234" ID x .139" Thk

1шт.

38

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

0-RING - 4-1/4 ID x 1/8 inch wide, housing

1шт.

39

R21587

PLUG

PLUG - inspection, lever housing

1шт.

40

A41924

GASKET

GASKET - inspection, lever housing

1шт.

41

A187741

BOLT,Torx Drive, 1/4" - 28 x 1", T Pt

SCREW - machine, flat phillips, 3/8 NF x 21/32 inch

5шт.

Used with starter assembly 1993891.

1шт.

41

414-416

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT - hex, 1/4 NF x 1 inch

5шт.

Used with starter assemblies 1990321 and 1993791.

1шт.
