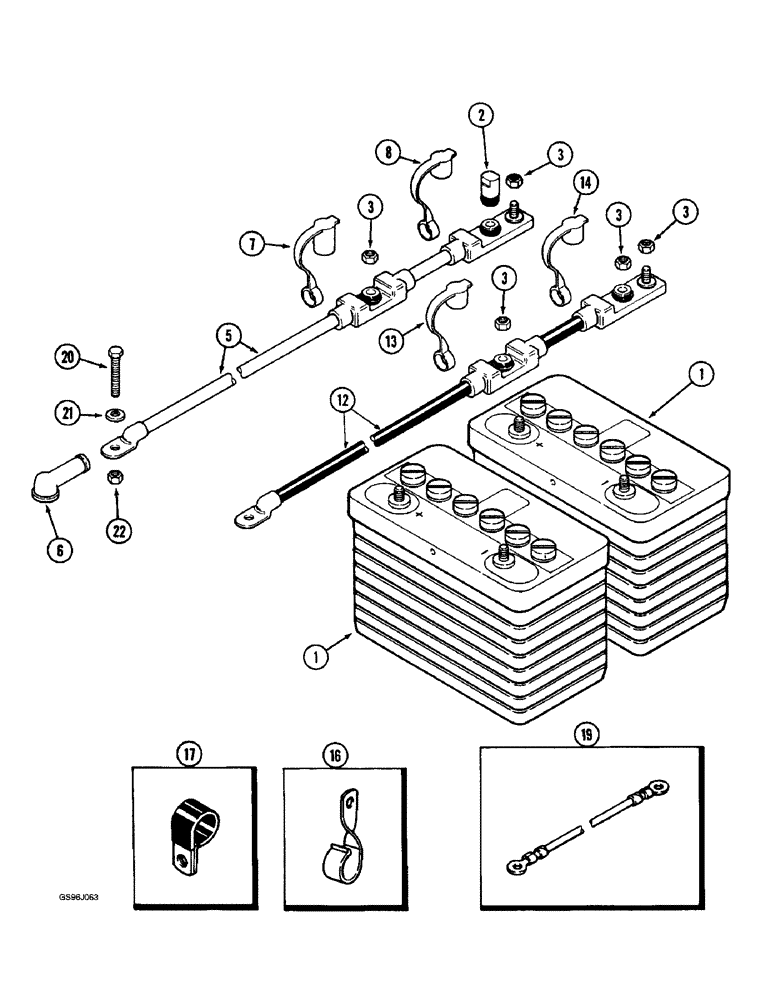

Запчасти Case IH 1660 (4-54) - BATTERY AND BATTERY CABLES (06) - ELECTRICAL

1

BMF28S

BATTERY, DRY

BATTERY - dry charged, 12 volt

2шт.

2

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

- jump start

1шт.

3

476074C1

NUT

- hex flange, 3/8 inch NC

5шт.

245955C4

CABLE

- battery, positive, with reverser, not shown

1шт.

5

245225C3

CABLE

ASSEMBLY - battery, positive, without reverser, Includes: Ref. 6 - 8

1шт.

6

S115407

BOOT

- rubber, battery cable

1шт.

7

NSS

NOT SOLD SEPARAT

BOOT - battery cable, order cable assembly 245225C3

1шт.

8

NSS

NOT SOLD SEPARAT

BOOT - battery cable, order cable assembly 245225C3

1шт.

12

245226C2

CABLE PULLING GRIP

CABLE ASSEMBLY - battery, ground, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

BOOT - battery cable, order cable assembly 245226C2

1шт.

14

NSS

NOT SOLD SEPARAT

BOOT - battery cable, order cable assembly 245226C2

1шт.

16

363660R1

CLIP

CLAMP - battery positive cable

1шт.

17

299414C1

CLAMP,7/8", Insul, 1/4" Bolt

- battery positive cable

1шт.

19

158477C91

CABLE

- engine to combine ground

1шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.
