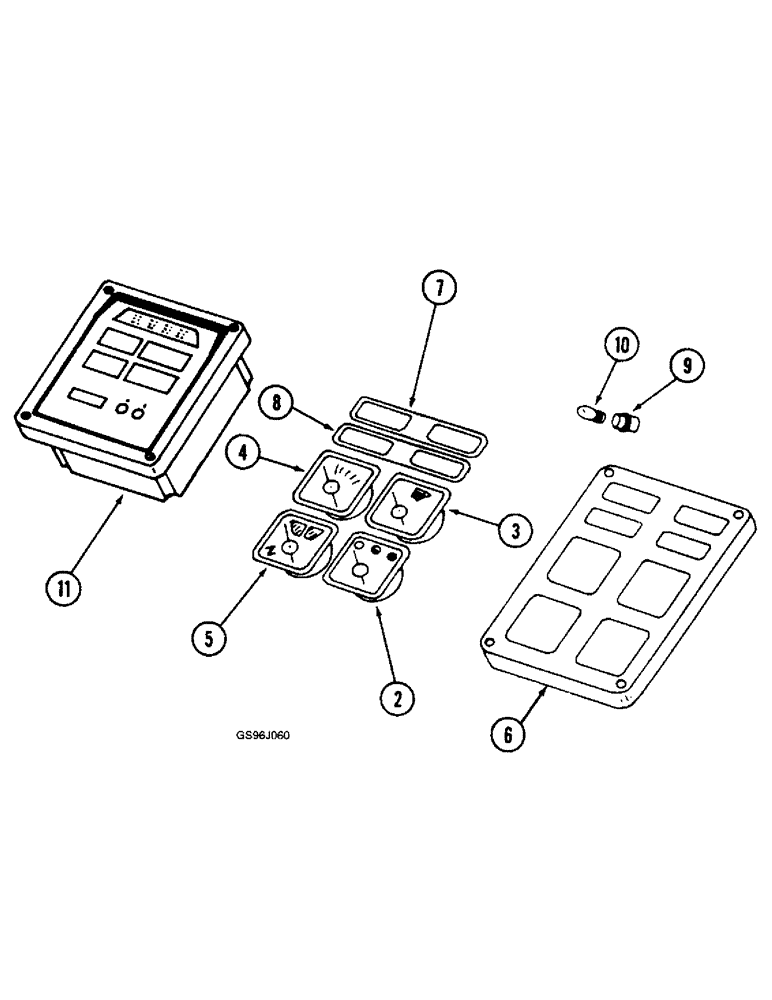

Запчасти Case IH 1660 (4-48) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL

198067C91

ELECTRICAL GAUGE

CLUSTER ASSEMBLY - instrument gauges, Includes Ref. 2 - 10

1шт.

2

121604C2

ELECTRICAL GAUGE

GAUGE - fuel (Replaces gauge 121604C1)

1шт.

3

121605C3

ELECTRICAL GAUGE

GAUGE - coolant temperature (Replaces gauge 121605C2)

1шт.

4

121606C2

ELECTRICAL GAUGE

GAUGE - oil pressure (Replaces gauge 121606C1)

1шт.

5

121607C2

ELECTRICAL GAUGE

GAUGE - system voltage (Replaces gauge 121607C1)

1шт.

6

121608C1

GASKET

BEZEL - instrument cluster

1шт.

7

187596C1

LENS

LENS - warning lamp, oil pressure, brake, temperature

1шт.

8

187597C1

LENS

LENS - warning lamp shaker elevator

1шт.

9

121611C1

SOCKET

SOCKET - bulb

8шт.

10

W10478

LAMP

BULB - lamp, No. 194

8шт.

445357

SPRING NUT,J, #10-16

NUT - J-shape, special, 10-12

4шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

SCREW - oval head, No. 10-16 x 3/4 inch

4шт.

11

1987322C2

TACHOMETER

TACHOMETER - engine, new (Replaces tachometer 245249C2)

1шт.

11

1935114C2

REMAN-ELECT GAUGE

Tachometer - engine, remanufactured (Replaces tachometer 1935068C2)

1шт.

11

1935113C2

CORE GAUGE ELECT

Core-ElectricalL Gauge Return Number, Tachometer

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

SCREW - oval head, No. 10-16 x 3/4 inch

4шт.
