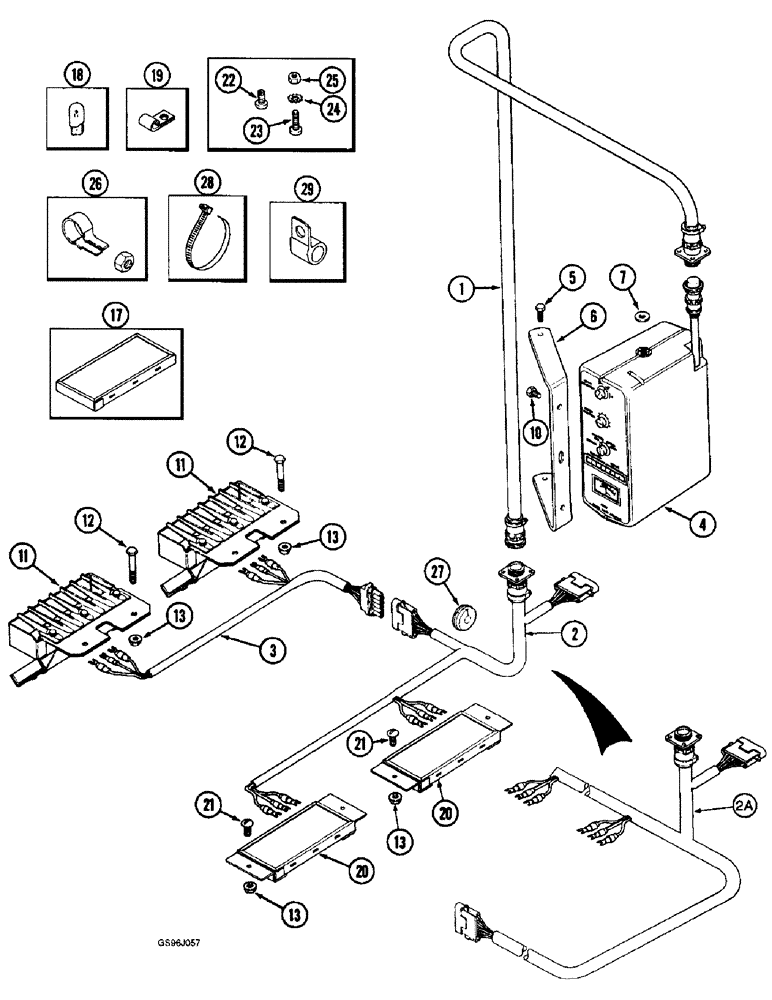

Запчасти Case IH 1660 (4-42) - GRAIN SCAN MONITOR (06) - ELECTRICAL

1

245237C1

HARNESS

- cab

1шт.

2

245239C1

HARNESS

- main sensor, if used

1шт.

2a

1994838C1

HARNESS

- main sensor, if used

1шт.

3

245930C2

HARNESS

- chaffer sensor, With Chaffer Extension

1шт.

1935074C1

REMAN-ELECT MONITOR

MONITOR - grain scan, remanufactured, North America only

1шт.

1935073C1

CORE-MONITOR

RETURN NUMBER - use this part number to return monitor for credit

1шт.

4

245360C2

TESTER

MONITOR - grain scan, new

1шт.

5

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

6

1280160C2

SUPPORT

BRACKET - monitor mounting

1шт.

7

179454C1

RUBBER WASHER

- flat, rubber, special

2шт.

10

326-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

(Replaces bolt 25653R1) Hex, 5/16"-18 x 1/2", G8, Full Thd

2шт.

11

245361C2

TRANSMITTER

BLOCK - chaffer sensor

2шт.

12

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

17

245884C1

TRANSMITTER

BLOCK - grain sensor

1шт.

18

A48888

BULB

- lamp (Replaces lamp 28628R1)

1шт.

19

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

2шт.

20

245362C1

TRANSMITTER

BLOCK - rotor sensor

2шт.

21

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

22

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan head slotted lock

4шт.

23

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

- machine, pan Phillips, No. 6 NC x 5/8 inch

4шт.

24

493-11014

LOCK WASHER,Ext-Int Tooth, #6

WASHER - internal-external tooth lock, 1/8 inch

4шт.

25

225-14106

NUT,#6-32

4шт.

26

245738C2

CLAMP

- retaining

1шт.

27

1321767C1

GROMMET

- left-hand side sheet

1шт.

28

702093C1

CABLE TIE

STRAP - tie

1шт.

29

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

- P-type, 1/2 inch ID (Replaces clamp 363444R1)

8шт.

29

363660/R1

CLAMP - retaining

1шт.
