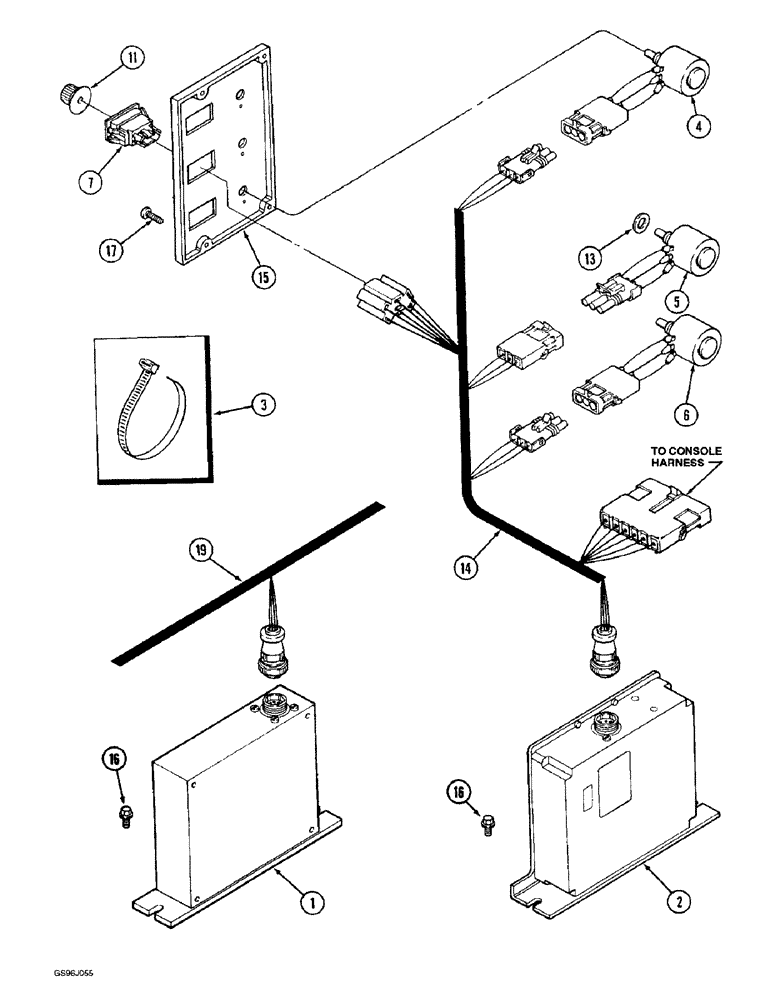

Запчасти Case IH 1660 (4-38) - AUTOMATIC FEEDER CUT-OFF AND AUTOMATIC REEL SPEED, TO GROUND SPEED CONTROLS (06) - ELECTRICAL

1

1983214C1

CONTROL BLOCK

CONTROL - automatic feeder cutoff (Replaces control 1310805C1)

1шт.

2

1983212C1

CONTROL BLOCK

CONTROL - automatic reel speed to ground speed (Replaces control 245631C1)

1шт.

3

702093C1

CABLE TIE

STRAP - tie

1шт.

4

245637C1

POTENTIOMETER,2500 Ohm

Reel to Ground Speed Ratio 2500 Ohm

1шт.

5

245925C1

POTENTIOMETER,1000 Ohm

Single, Speed Setting 1000 Ohm

1шт.

6

245638C1

POTENTIOMETER,200,000 Ohm

Calibration, Single 200,000 Ohm

1шт.

7

245697C1

SWITCH

- rocker

1шт.

342-10610

SCREW,Cross Oval Hd, #6-32 x 5/8"

- machine, oval Phillips, No. 6 NC x 5/8 inch

2шт.

11

1345235C1

BUTTON

KNOB - reel to ground speed control (Replaces knob 1301036C1)

1шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

14

245923C1

HARNESS

- reel to ground speed

1шт.

15

1280158C2

PANEL

- front control, see Fig. 9G-2

1шт.

16

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

2шт.

17

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

SCREW - oval head, No. 10-16 x 3/4 inch

1шт.

19

91726C4

HARNESS

- console, see Fig. 4-06

1шт.
