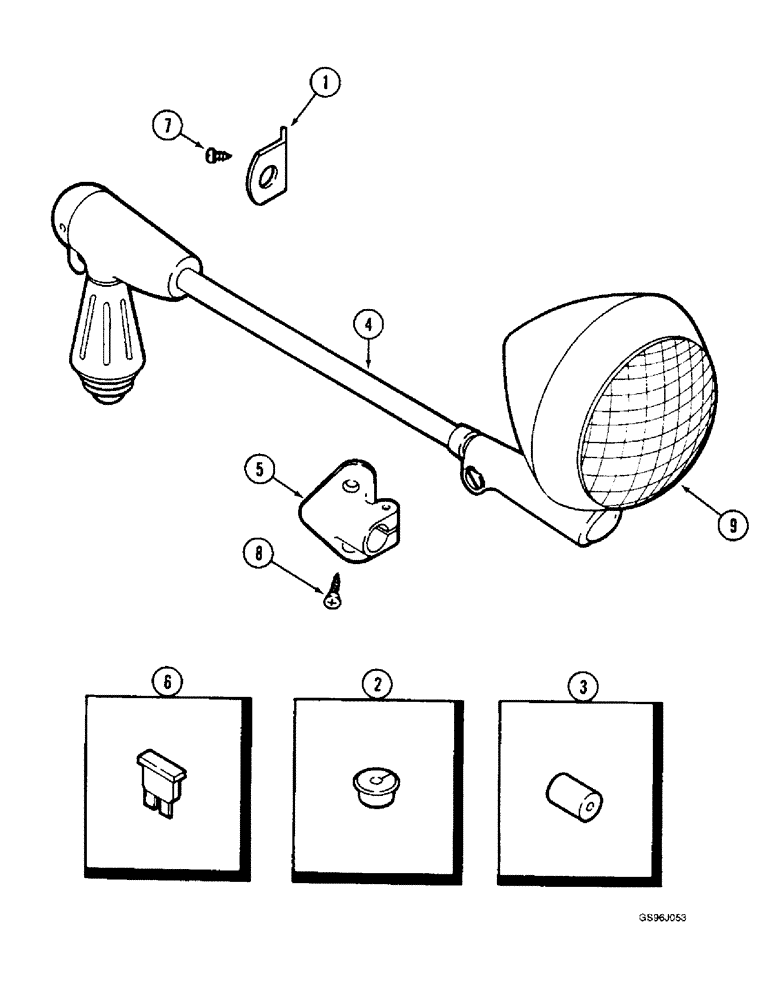

Запчасти Case IH 1660 (4-34) - CAB SPOTLAMP (06) - ELECTRICAL

1323590C91

LAMP BASE

KIT - flood lamp, no longer available as a unit, order components separately, Includes: Fig. 1 - 9

1шт.

1

1329859C1

BRACKET

- flood lamp

2шт.

2

1330144C1

GROMMET

- spotlamp

1шт.

3

1330145C1

BUSHING

- spotlamp

1шт.

4

91938C1

INTERIOR LIGHT

LAMP - flood

1шт.

5

92015C1

BRACKET

- flood lamp

1шт.

6

A149798

FUSE

- tan, 5 ampere

1шт.

6

A149799

FUSE

- brown, 7-1/2 ampere

1шт.

7

264-2056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan head slotted, No. 10 NC x 3/8 inch

2шт.

8

27073R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - tapping, No. 10-16 x 1/2 inch

2шт.

9

28753R1

LIGHT

LAMP - sealed beam, No. 7604

1шт.
