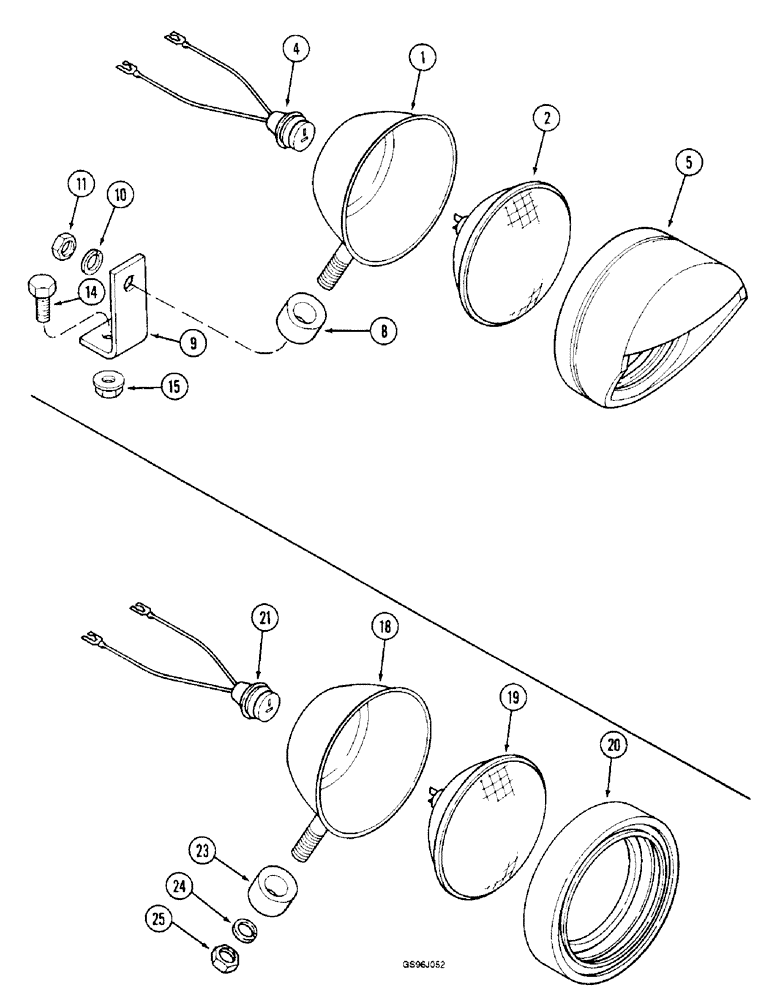

Запчасти Case IH 1660 (4-32) - LAMP ASSEMBLIES, GRAIN TANK (06) - ELECTRICAL

245953C91

LAMP

ASSEMBLY - grain tank, no longer available, order lamp assembly 245954C91 below, Fig. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lamp, order lamp assembly 245953C91

1шт.

2

28625R1

LAMP

- No. 4414

1шт.

4

530029R91

CONNECTOR, ELEC

CONNECTOR - lamp

1шт.

5

107471C1

RETAINER

HOOD - lamp

1шт.

8

1267358C2

SEAT

- lamp mounting

1шт.

9

1317942C1

BRACKET

- grain tank lamp

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

14

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

1шт.

15

231-5146

FLANGE NUT,3/8"-16

1шт.

245954C91

LAMP

ASSEMBLY - unloader, Fig 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - lamp, order lamp assembly 245954C91, unloader

1шт.

19

A47179

BULB

LAMP - bulb, Hobbs, 12 volt, trade No. H7606, unloader

1шт.

20

A25213

RETAINER

- sealed lamp rubber, used with Hobbs lamp, unloader

1шт.

20

1252609C1

RETAINER

- shockproof, used with Midwest lamp, unloader

1шт.

21

530029R91

CONNECTOR, ELEC

CONNECTOR - lamp, unloader

1шт.

23

D37048

BUSHING

SEAT - lamp mounting (Replaces seat 1267358C2), unloader

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Unloader 1/2"

1шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Unloader 1/2"-13, G5

1шт.
