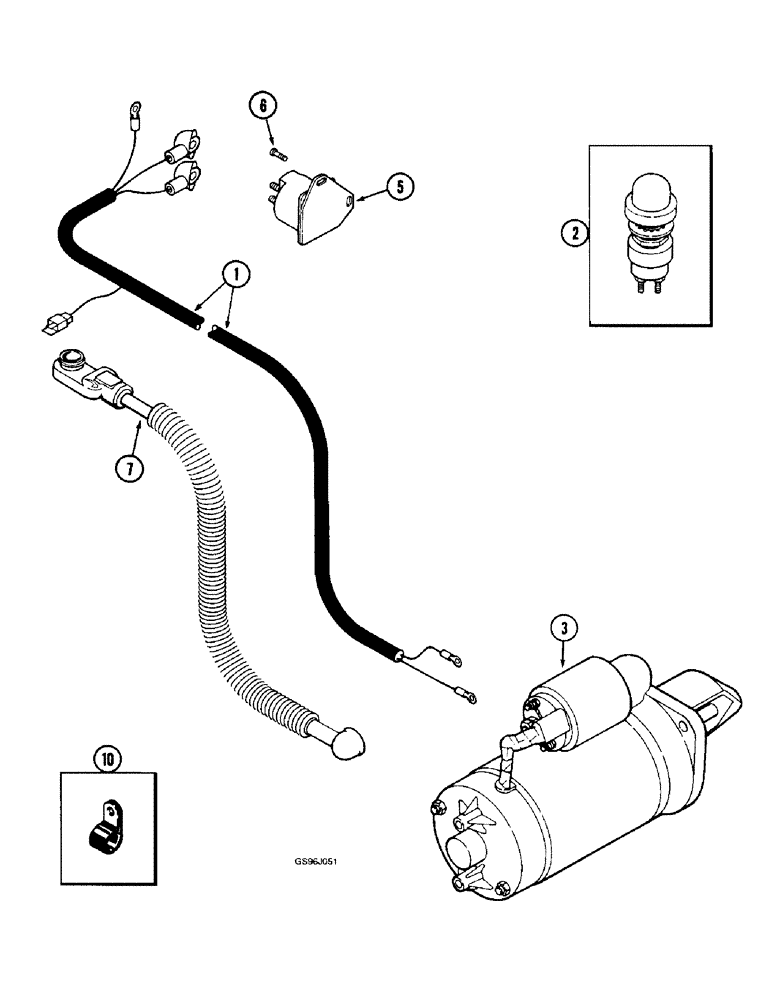

Запчасти Case IH 1660 (4-30) - FEEDER REVERSER HARNESS (06) - ELECTRICAL

1

245957C1

HARNESS

- feeder reverser

1шт.

2

453453C1

SWITCH

- push button

1шт.

3

245927C92

STARTING MOTOR

MOTOR ASSEMBLY - feeder reverser, parts list, Includes: Fig. 4-58

1шт.

3

245927C93R

REMAN-STARTER

Reman for New PN 245927C92

1шт.

3

245927C93C

CORE-STARTER

Return Number

1шт.

5

121613C1

IGNITION SWITCH

SWITCH - magnetic relay

1шт.

6

261-2478

SELF-TAP SCREW,1/4 -20x1/2 F Pan

SCREW - self-tapping, pan Phillips, 1/4 NC x 1/2 inch

2шт.

7

245955C4

CABLE

- battery positive

1шт.

If the combine is equipped with a feeder reverser, the cable goes from the battery to the starter and to the feeder reverser.

1шт.

10

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

10шт.
