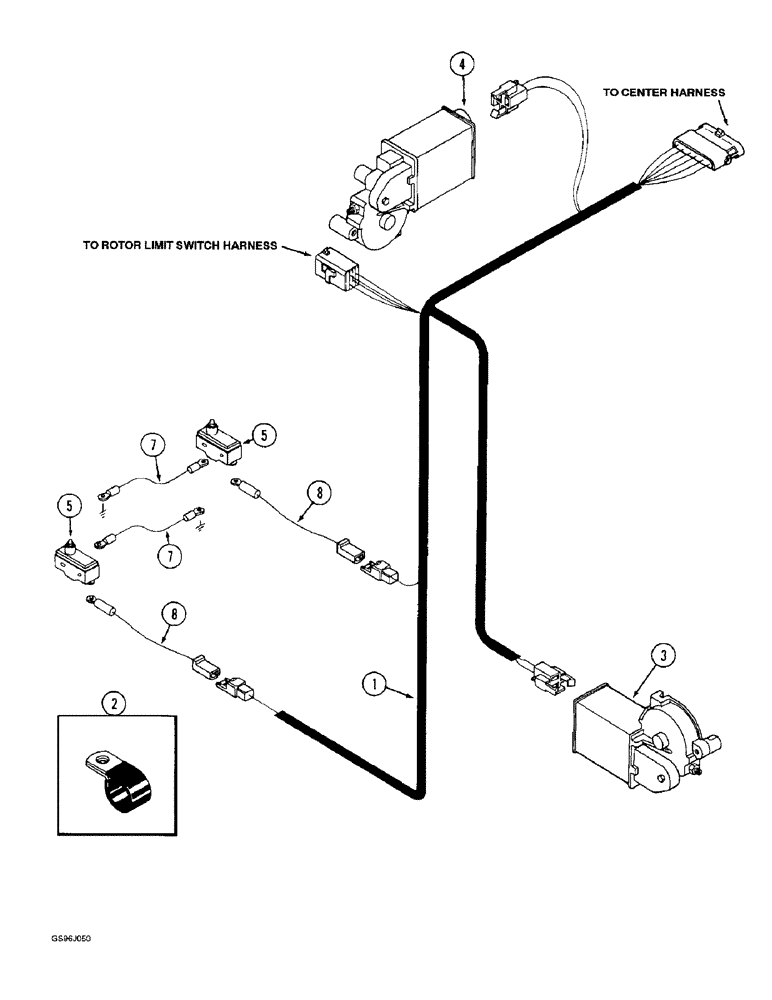

Запчасти Case IH 1660 (4-28) - FAN AND ROTOR SPEED HARNESS (06) - ELECTRICAL

1

245230C1

HARNESS

- fan and rotor speed, used with micro switch cable, shown

1шт.

1

1983397C1

HARNESS

- fan and rotor speed

1шт.

2

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

P-type 1 1/4", Insul, 7/16" Bolt

1шт.

3

REF

INSTRUCTION

MOTOR - fan speed, see Fig. 9C-16

1шт.

4

REF

INSTRUCTION

MOTOR - rotor speed, see Fig. 9B-12

1шт.

5

574649R91

SWITCH

- micro and auger alarm

2шт.

If equipped, Used with shaft speed monitor system.

1шт.

7

175008C1

CABLE ASSY.

CABLE - micro switch connection

2шт.

If equipped, Used with shaft speed monitor system.

1шт.

8

187736C1

CABLE

- separator clutch valve

2шт.

If equipped, Used with shaft speed monitor system.

1шт.
