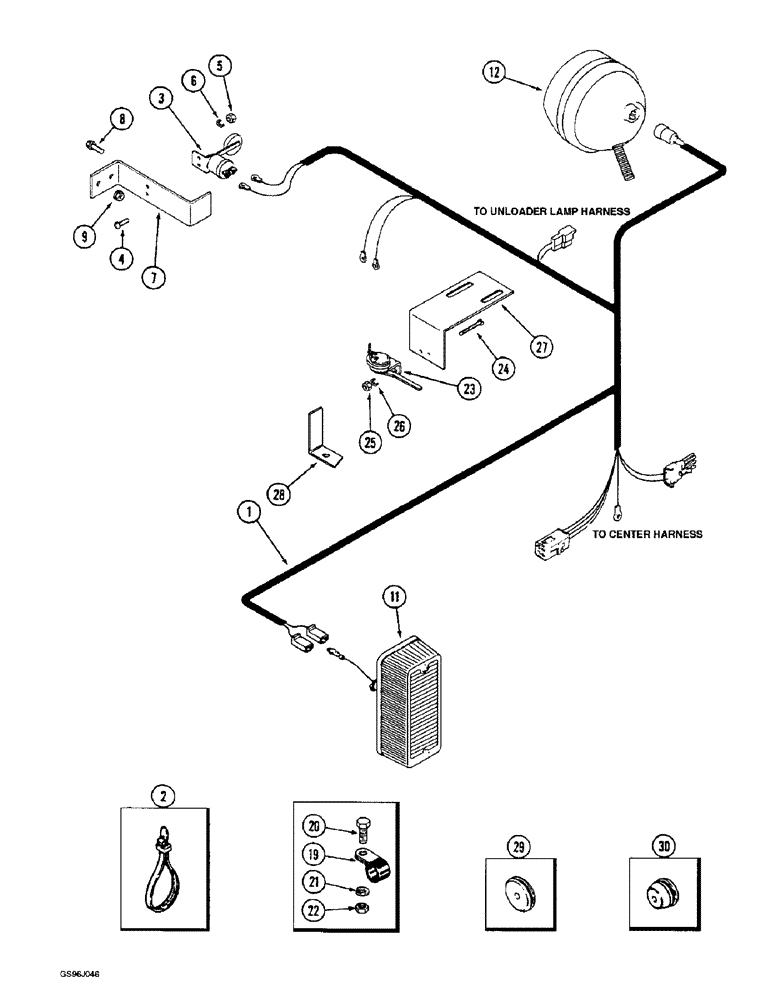

Запчасти Case IH 1660 (4-20) - GRAIN TANK HARNESS (06) - ELECTRICAL

1

245243C3

HARNESS

- grain tank

1шт.

2

702093C1

CABLE TIE

STRAP - tie

1шт.

3

91436C4

SWITCH

- unloader in

1шт.

4

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

2шт.

5

225-14110

NUT,#10-24

2шт.

6

178383

WASHER,Tooth, 0.20" ID x 0.68" OD, Steel, ZND

WASHER - internal-external lock, No. 10

2шт.

7

1338022C1

SUPPORT

BRACKET - unloader in switch (Replaces bracket 84163C1)

1шт.

8

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

2шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

11

REF

INSTRUCTION

LAMP ASSEMBLY - warning, right-hand front, parts list Fig.4-36

1шт.

12

REF

INSTRUCTION

LAMP ASSEMBLY - grain tank, parts list Fig. 4-36

1шт.

19

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- P-type

12шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

12шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

12шт.

23

537641R2

SWITCH ASSY

SWITCH - limit, unloader out

1шт.

24

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch

2шт.

24

21866R1

SNAP RING,1.378", Int, #137

SCREW - pan head machine, No. 10 NF x 1-1/2 inch

2шт.

25

225-13210

NUT,#10-32

2шт.

27

1338003C1

BRACKET

SUPPORT - unloader out switch (Replaces support 1327646C1)

1шт.

28

1338004C1

BRACKET

- unloader out switch (Replaces bracket 1327647C1)

1шт.

29

1321767C1

GROMMET

- grain bin, left-hand side sheet, 3/8 inch ID

1шт.

30

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- grain bin, rubber, 3/8 inch ID

1шт.

195803C1

GROMMET

- grain tank harness, upper, 3/8 inch ID

2шт.

26

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.
