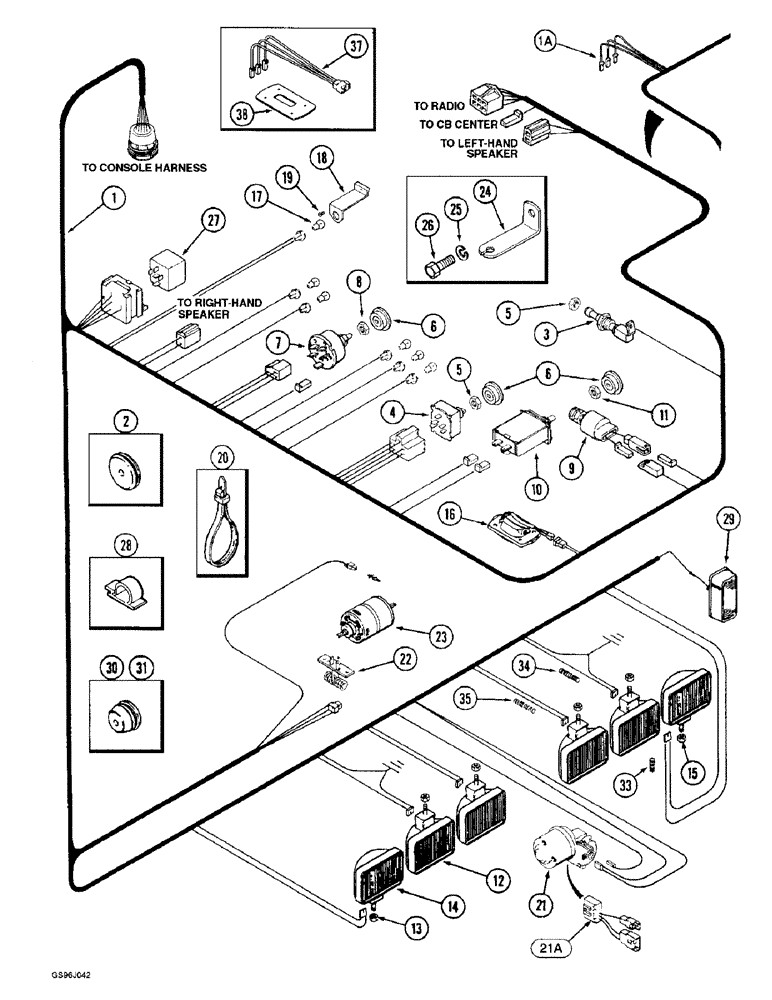

Запчасти Case IH 1660 (4-12) - CAB ROOF HARNESS (06) - ELECTRICAL

1

84311C6

HARNESS

- cab roof, if used

1шт.

1a

1994715C1

HARNESS

- cab roof, if used

1шт.

2

83931C1

GROMMET

- blower harness

1шт.

3

245175C1

SWITCH

- door dome lamp control

1шт.

4

168822C2

SWITCH

- blower

1шт.

5

109311H

JAM NUT

- hex jam, 7/16 inch NF

1шт.

6

111282C1

KNOB

- control, wiper and thermostat switch

3шт.

7

245734C1

SWITCH

- wiper control

1шт.

8

109311H

JAM NUT

- hex jam, 7/16 inch NF

1шт.

9

111267C4

SWITCH, A/C LOW PRES

SWITCH - low pressure, air conditioning

1шт.

9

111267C4GV

SWITCH, A/C LOW PRES

SWITCH - low pressure, air conditioning

1шт.

10

109268C2

SWITCH

- cab thermostat

1шт.

11

109311H

JAM NUT

- hex jam, 7/16 inch NF

2шт.

12

91666C91

INTERIOR LIGHT

LAMP - headlamp, 40 x 7 Halogen flood, if used

2шт.

12

245555C1

LAMP

- headlamp, 40 x 7 Halogen flood, if used

2шт.

13

325-108

NUT,1/2"-13, G5

- hex jam, 1/2 inch NC

2шт.

14

245897C91

LAMP, WORK

LAMP - worklamp and outer flood lamp, 80 x 30 Halogen

4шт.

15

325-108

NUT,1/2"-13, G5

- hex jam, 1/2 inch NC

4шт.

16

REF

INSTRUCTION

LAMP ASSEMBLY - dome, parts list Fig. 4-36

1шт.

17

A14553

BULB

- No. 57, cab instrument panel backlamp and warning lamp, Type C-2V

6шт.

18

1281975C1

BRACKET

SUPPORT - instrument panel bulb mounting

5шт.

19

28152R1

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - No. 8-18 x 1/2 inch

5шт.

20

702093C1

CABLE TIE

STRAP - tie

6шт.

21

REF

INSTRUCTION

WIPER ASSEMBLY - windshield, parts list Fig. 4-66

1шт.

21a

115400A1

HARNESS

- adapter, cab roof harness to wiper motor

1шт.

22

1255876C1

RESISTOR

- blower motor

1шт.

23

190333A1

MOTOR, ELECTRIC,12V

MOTOR - blower, 12 volt, DC, PM

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1660 CIH Prior To S/N JJC0038346,

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

24

1283289C1

ANGLE

BRACKET - outer flood lamp mounting

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

26

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

2шт.

27

1-7877

RELAY

- electrical, air conditioning

1шт.

28

245854A1

CLIP

- retaining (Replaces clip 169850C2)

2шт.

29

REF

INSTRUCTION

LAMP ASSEMBLY - warning, parts list Fig. 4-36

1шт.

30

1327650C1

GROMMET

- flood lamp, right-hand

1шт.

31

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- 5/8 inch ID, right-hand

1шт.

32

1321769C1

GROMMET

- rubber, 5/8 inch diameter hole, left-hand

1шт.

33

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 3-1/2 inch (89 mm) long, cut from bulk conduit R43250 below

2шт.

34

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 7 inch (178 mm) long, cut from bulk conduit R43250 below

2шт.

35

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 9 inch (229 mm) long, cut from bulk conduit R43250 below

2шт.

37

1983386C1

HARNESS

- dome lamp adapter

1шт.

38

1979628C1

LARGE PLATE

PLATE - dome lamp

1шт.

R43250

CONDUIT

- harness, 50 foot (15240 mm) roll

1шт.
