Запчасти Case IH 1660 (4-06) - RIGHT HAND CONSOLE HARNESS (06) - ELECTRICAL

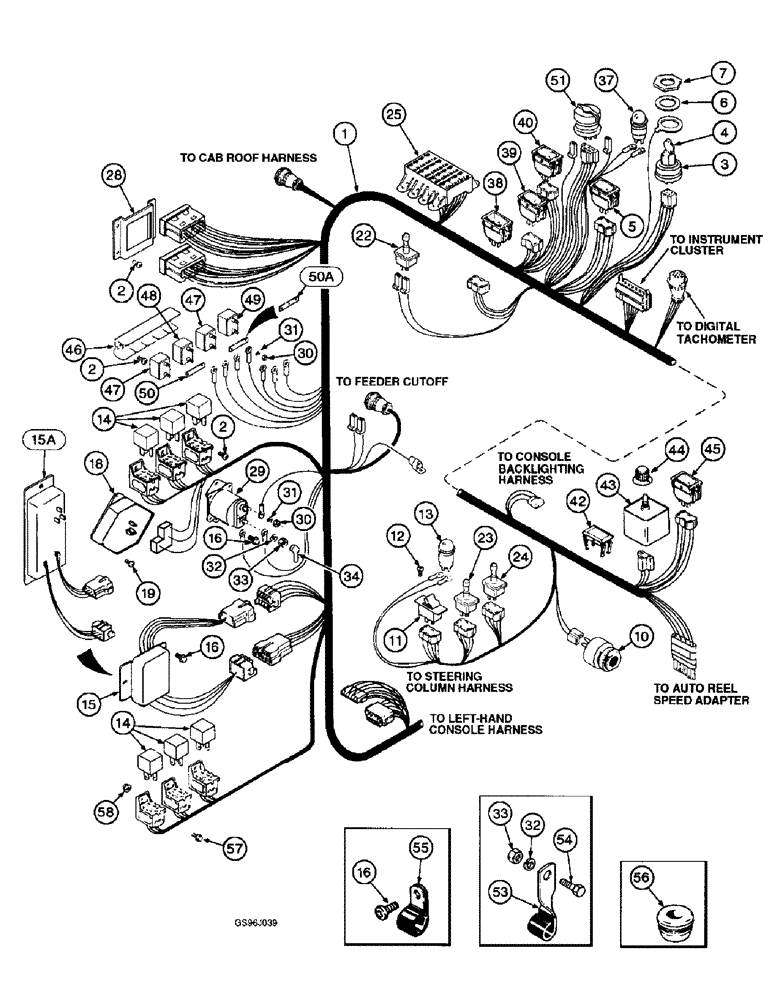

Схема запчастей Case IH 1660 - (4-06) - RIGHT HAND CONSOLE HARNESS (06) - ELECTRICAL
49
5
37
14
47
31
25
38
48
15a
58
34
13
22
39
43
1
24
51
33
3
4
50
32
11
33
2
46
7
15
44
50a
12
54
29
42
40
16
56
32
10
53
45
2
28
57
6
31
23
19
2
31
30
16
47
14
16
55
18

Артикул

Название

Примечание

Количество

1

91726C4

HARNESS

- console

1шт.

2

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10 NC x 1/2 inch

10шт.

2

187-1067

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

10шт.

3

1252476C1

SWITCH

- ignition

1шт.

4

131313C1

KEY, IGNITION

KEY - ignition

1шт.

5

245219C1

SWITCH

- rotor speed

1шт.

6

375431R1

LOCK WASHER

- flat, special

1шт.

7

365502R1

NUT

- flat hex, special

1шт.

10

1546441C1

BUZZER

ALARM - audible

1шт.

11

1301175C1

SWITCH

- reel lift control

1шт.

12

342-10610

SCREW,Cross Oval Hd, #6-32 x 5/8"

- machine, oval Phillips, No. 6 NC x 5/8 inch

2шт.

13

REF

INSTRUCTION

SWITCH - feeder reverser, see Fig. 4-30

1шт.

14

1-7877

RELAY

- electrical

1шт.

15

187609C2

RECTIFIER

- diode

1шт.

15a

1994871C1

GOVERNOR

RECITFIER - load dump and diode logic

1шт.

16

261-2478

SELF-TAP SCREW,1/4 -20x1/2 F Pan

SCREW - self-tapping, pan Phillips, 1/4 NC x 1/2 inch

6шт.

17

299277C91

CLIP

CLAMP - console harness

2шт.

18

245835C1

SUPPRESSOR

- central load dump, if used

1шт.

19

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No.10 NC x 1/2 inch (Replaces screw 593749R1)

2шт.

22

121705C91

SWITCH

- dimmer

1шт.

23

245633C1

IGNITION SWITCH

SWITCH - feeder clutch, 2 position, without reverser

1шт.

23

245634C2

SWITCH

- toggle, 3 position, with reverser

1шт.

24

245632C2

SWITCH

- toggle, separator clutch

1шт.

25

245435C1

FUSE HOLDER

BLOCK - fuse

1шт.

28

NSS

NOT SOLD SEPARAT

BRACKET - feed back module mounting, order harness 91726C4

1шт.

29

107655C1

SOLENOID SWITCH

SWITCH - magnetic cab power

1шт.

30

225-14210

NUT,#10-32

9шт.

31

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

34

399470R1

BOOT

- cable

2шт.

37

453453C1

SWITCH

- push button, ether start

1шт.

38

REF

INSTRUCTION

SWITCH - 4 wheel drive

1шт.

39

245012C1

SWITCH

- rocker, variable propulsion

1шт.

40

245219C1

SWITCH

- fan speed

1шт.

42

245334C1

PLUG

- panel switch cover

1шт.

43

245653C2

SWITCH

- reel speed manual

1шт.

44

1345235C1

BUTTON

KNOB - control, reel speed (Replaces knob 1301036C1)

1шт.

45

245509C1

SWITCH

- reel, fore and aft, if equipped

1шт.

46

245871C1

BRACKET

- circuit breaker

1шт.

47

245765C1

CIRCUIT-BREAKER,30A

BREAKER - worklamp circuit, 30 ampere

2шт.

48

245762C1

CIRCUIT-BREAKER,15A

BREAKER - rotor circuit, 15 ampere

1шт.

49

245763C1

CIRCUIT-BREAKER,20A

BREAKER - cab circuit, 20 ampere

1шт.

50

245861C1

BAR

- breaker bus, two holed, if used

2шт.

50

1301157C1

BAR

- breaker bus, two holed, if used (Replaces bar 245860C1)

2шт.

50a

245860C1

BAR

- breaker bus, three holed, no longer available, order two holed bar 1301157C1 above

2шт.

51

107200C2

LIGHT SWITCH

SWITCH - headlamp

1шт.

53

363660R1

CLIP

CLAMP - twisted

1шт.

54

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

55

299277C91

CLIP

CLAMP - console harness

2шт.

56

198820C1

GROMMET

- rubber, console harness (Replaces 92065C1)

1шт.

57

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

1шт.

58

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

Выбрано товаров: 53
