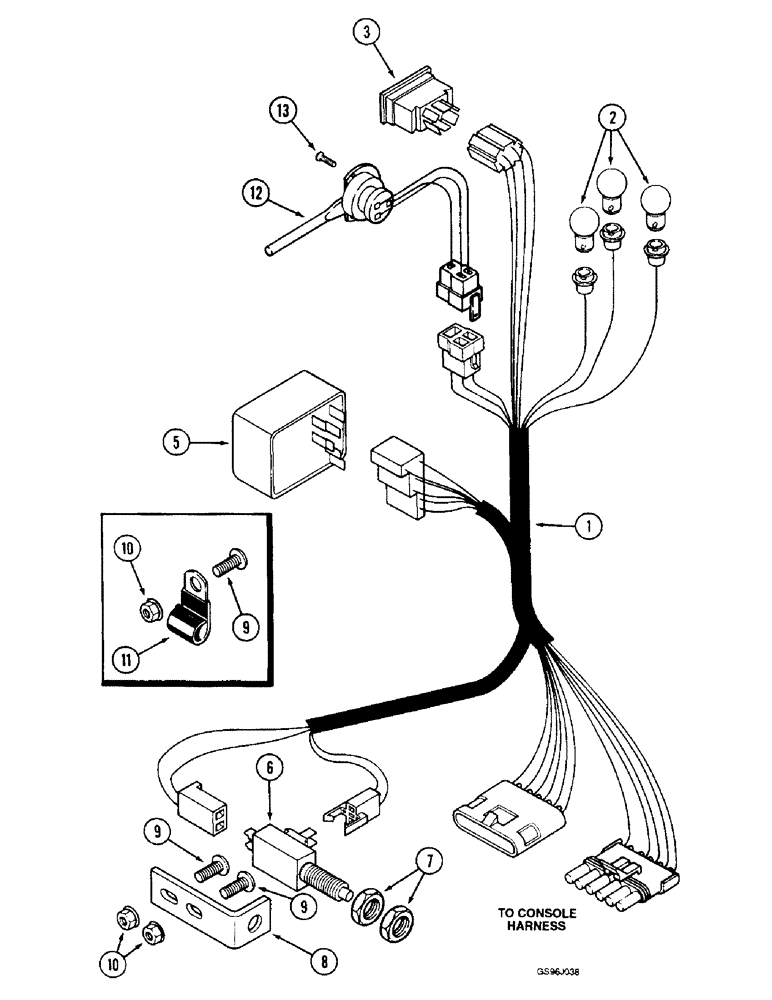

Запчасти Case IH 1660 (4-04) - STEERING COLUMN HARNESS (06) - ELECTRICAL

1

91822C3

HARNESS

- steering column

1шт.

2

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

3шт.

3

245513C1

SWITCH

- dimmer

1шт.

5

1987422C1

SWITCH

- turn signal

1шт.

6

131107C1

SWITCH

- neutral start

1шт.

7

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

8

1327674C1

BRACKET

ANGLE - switch mounting

1шт.

9

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

11

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

- P-type, 1/2 inch ID, steering column harness (Replaces clamp 363444R1)

6шт.

12

245635C1

SWITCH

- unloader tube control

1шт.

13

340-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

- machine, pan Phillips, No. 8 NC x 3/4 inch

3шт.
