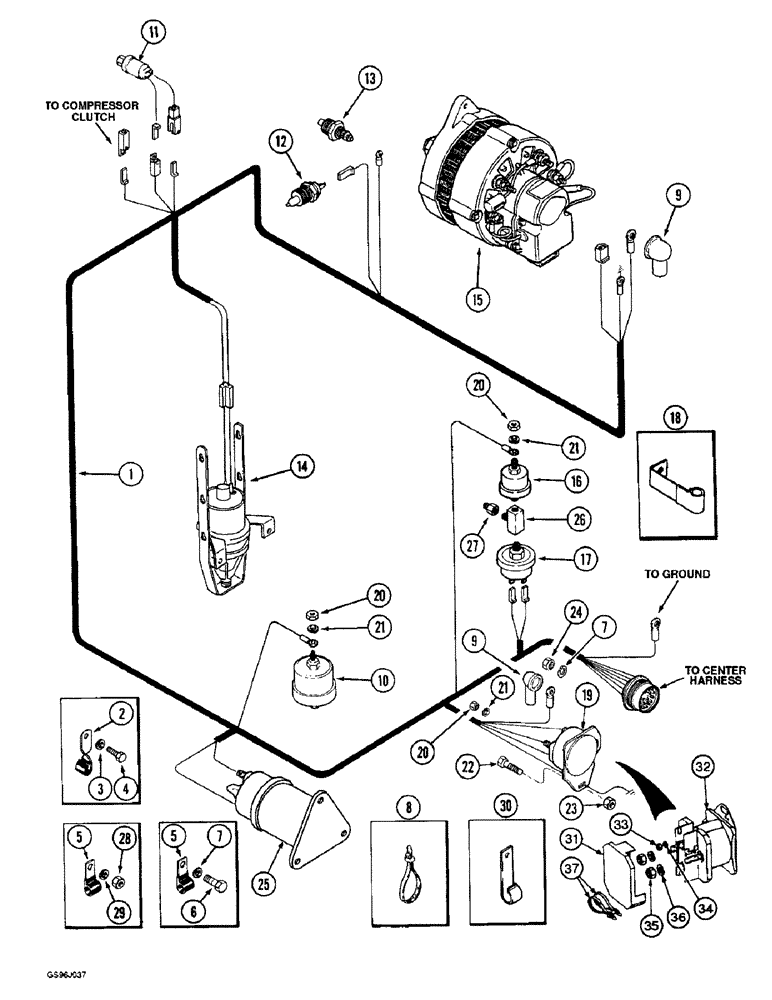

Запчасти Case IH 1660 (4-02) - ENGINE HARNESS (06) - ELECTRICAL

1

1338703C3

HARNESS

- engine (Replaces harness 245934C3)

1шт.

2

670368C1

CLIP

- engine block, rear

1шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

5

362123R1

CLIP

- engine harness

3шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

8

702093C1

CABLE TIE

STRAP - tie

1шт.

9

399470R1

BOOT

- cable

2шт.

10

1341329C1

TRANSMITTER

SENDER - oil pressure (Replaces senders 1-2227T2 and 130707C4)

1шт.

11

234920A1

SWITCH, PRESSURE

SWITCH - high pressure (Replaces switch 111266C1)

1шт.

12

130861C2

SWITCH

- coolant temperature

1шт.

13

121756C2

SENSOR

- coolant temperature

1шт.

14

REF

INSTRUCTION

SOLENOID ASSEMBLY - ether injection, parts list Fig. 2-18 or 2-19A

1шт.

15

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - parts list Fig. 4-60

1шт.

16

392249R92

SWITCH

- low engine oil pressure lamp

1шт.

17

131424C1

SWITCH

- pressure Sending Unit

1шт.

18

399657R1

CLIP

- engine harness, front cover

1шт.

19

121613C1

IGNITION SWITCH

SWITCH - magnetic relay, no longer available, order kit 178149A1 below

1шт.

20

225-14210

NUT,#10-32

3шт.

21

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

22

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

2шт.

23

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

25

REF

INSTRUCTION

SWITCH - starter solenoid, see Fig. 4-64

1шт.

26

217-55

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

- pipe, 1/8 inch PT

1шт.

27

217-9

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

VALVE - 1/8 inch PT

1шт.

28

425-106

NUT,3/8"-16, Cl 5

2шт.

29

492-11038

LOCK WASHER,3/8"

2шт.

30

269980R1

CLIP

- engine harness center

1шт.

178149A1

SOLENOID SWITCH

KIT- solenoid switch, with barrier and cover (Replaces switch 121613C1), Includes: Ref. 31 - 37

1шт.

31

178148A1

COVER

- solenoid switch

1шт.

32

183038A1

SOLENOID

SWITCH - solenoid with barrier

1шт.

33

225-14210

NUT,#10-32

1шт.

34

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

35

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

36

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.
