Запчасти Case IH 1660 (5-76) - SELECTOR VALVE MOUNTING, POWER GUIDE AXLE, P.I.N. JJC0036301 & AFTER (04) - STEERING

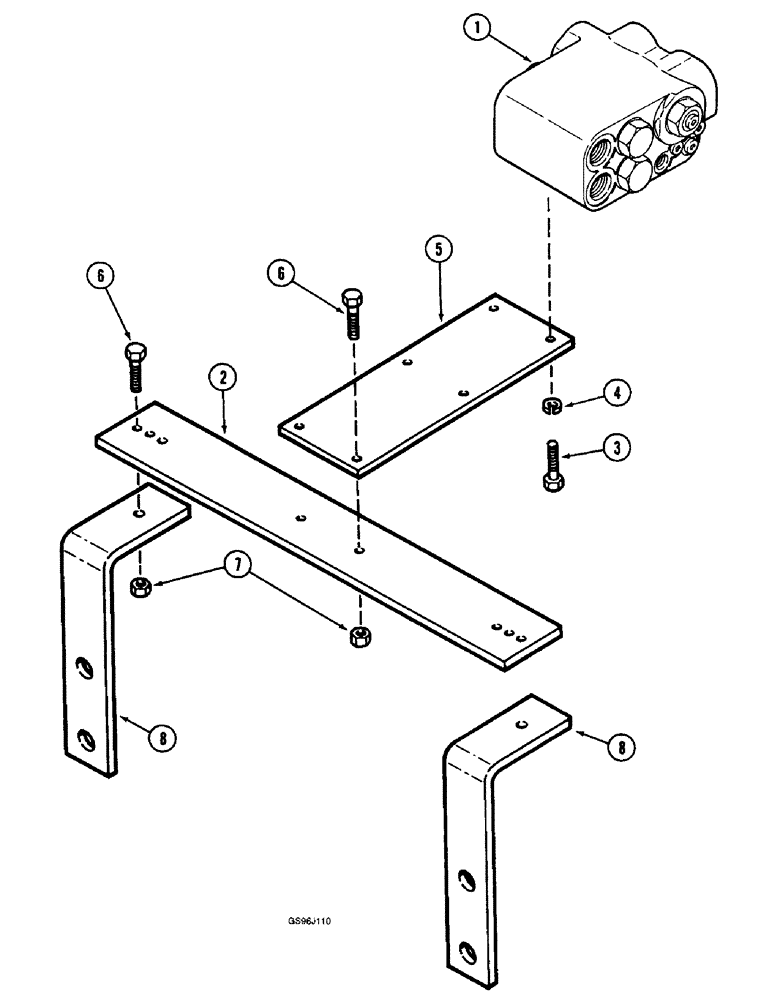

Схема запчастей Case IH 1660 - (5-76) - SELECTOR VALVE MOUNTING, POWER GUIDE AXLE, P.I.N. JJC0036301 & AFTER (04) - STEERING
8
7
4
3
1
8
2
6
6
5

Артикул

Название

Примечание

Количество

1

1978000C1

VALVE

ASSEMBLY - selector, parts list Fig. 5-86

1шт.

2

1324455C2

PLATE

- mounting, valve

1шт.

3

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

1324454C3

BAR

PLATE - mounting, valve

1шт.

6

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

4шт.

7

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

8

1324471C1

BRACKET

SUPPORT - bracket, valve

2шт.

Выбрано товаров: 8
