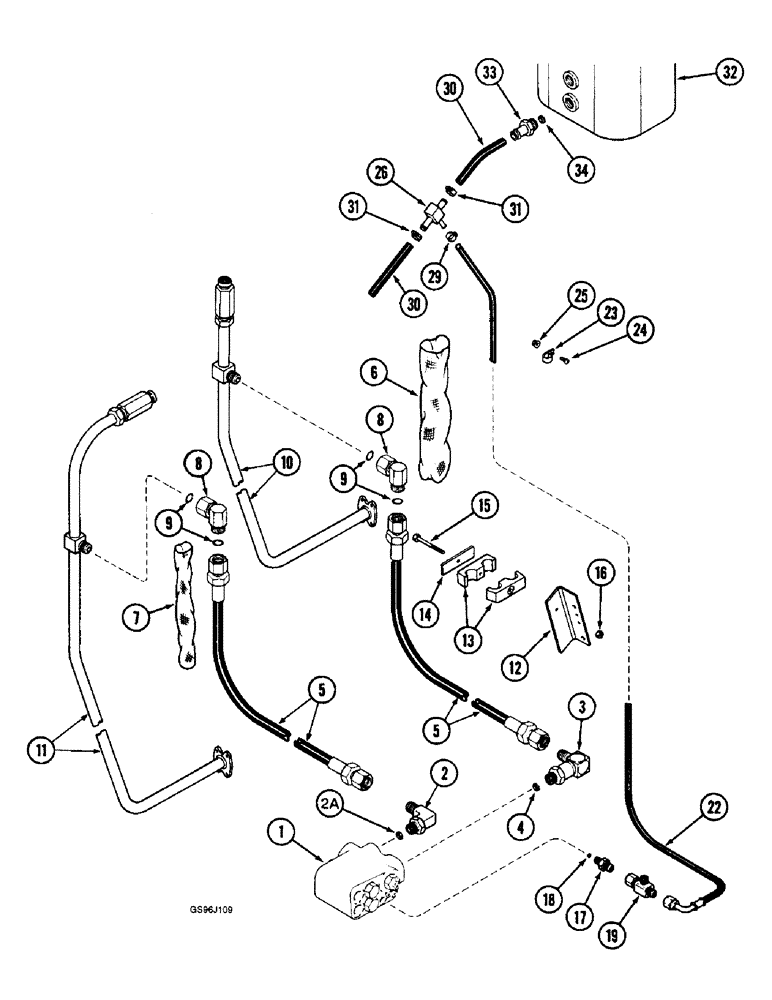

Запчасти Case IH 1660 (5-74) - SELECTOR VALVE HYDRAULIC SYSTEM, POWER GUIDE AXLE, P.I.N. JJC0036301 & AFTER (04) - STEERING

1

1978000C1

VALVE

ASSEMBLY - selector, parts list Fig. 5-86

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adjustable O-ring boss, Incl. 2A

1шт.

2a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

201-365

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90º long, 1-3/16-12 face seal x 1-1/16-12 inch Adj O-ring boss (Replaces elbow 1979169C1)

1шт.

3

218-5550

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, long, 1-1/16-12 inch flare x O-ring boss, Includes: Ref. 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

1979171C1

HOSE,19.05mm ID x 2165mm L

- valve pressure, 85-1/4 inch (2165 mm) long (Replaces hose 1957281C1)

2шт.

6

1970108C1

PROTECTIVE COVER

SLEEVE - nylon, 2-3/8 (60) ID x 48 inch (1219 mm) long

1шт.

7

1970109C1

HOSE

SLEEVE - hose, nylon, 48 inch (1219 mm) long

1шт.

8

1979168C1

ELBOW

- 90 degree special

2шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

10

1979183C1

HYD TUBE

TUBE - forward upper pressure (Replaces tube 1301717C1)

1шт.

11

1979182C1

HYD TUBE

TUBE - reverse upper pressure (Replaces tube 1301716C1)

1шт.

12

1324467C2

ANGLE

BRACKET - hose angle

1шт.

13

1324473C1

CLAMP

- hose

1шт.

14

1324469C1

PLATE

- clamp, hose

1шт.

15

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

5/16"-18 x 3 1/4", G8

1шт.

16

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

17

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 18

1шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

22

1957283C3

HOSE

- housing drain, 134-1/4 inch (3410 mm) long

1шт.

23

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

Hose, Closed coated 13/16", Insul, 3/8" Bolt

1шт.

24

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

26

1970100C1

FITTING

TEE - return hose, 3/4 x 3/4 x 1/2 inch barb end

1шт.

29

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

1шт.

30

REF

INSTRUCTION

HOSE - return, 7 inch (178 mm) long, cut from bulk hose 364360C1 below

2шт.

31

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

4шт.

32

REF

INSTRUCTION

RESERVOIR - hydraulic, see Fig. 8-02

1шт.

33

470420R11

FITTING

CONNECTOR - hydraulic, 1-1/16 thread x 3/4 inch barb end

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

364360C1

HOSE

- bulk, 3/4 (19) ID x 600 inch (15240 mm) long

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
