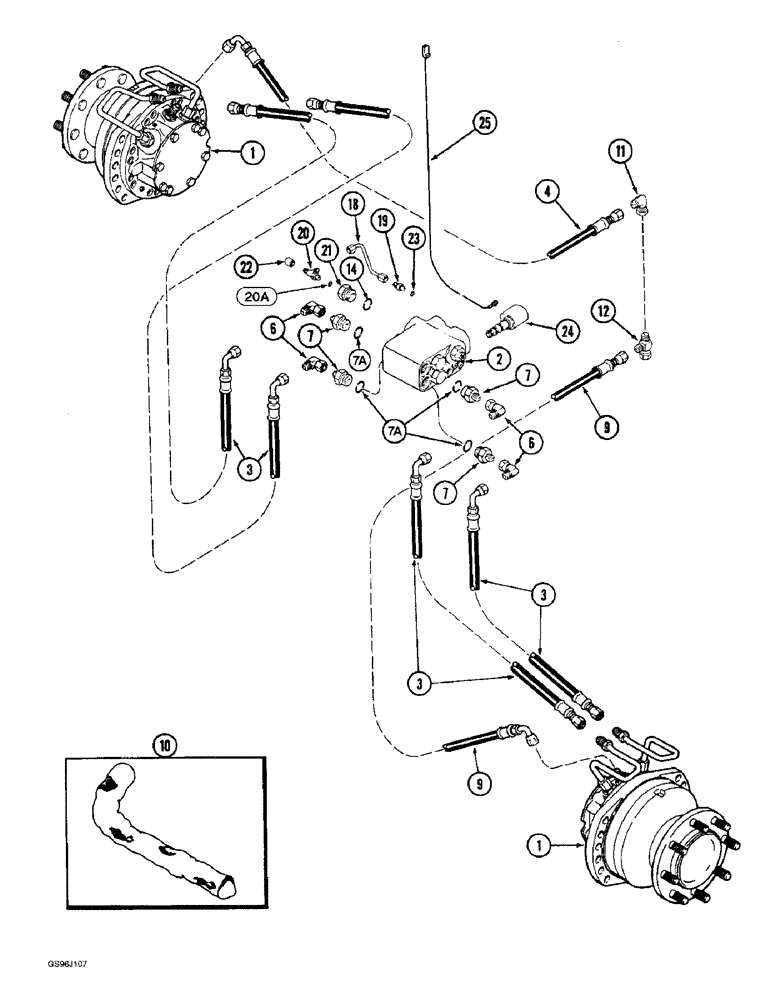

Запчасти Case IH 1660 (5-70) - AXLE HYDRAULIC MOTOR SYSTEM, POWER GUIDE AXLE, P.I.N. JJC0036301 & AFTER (04) - STEERING

1

121436A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - drive, parts list Fig. 5-88

2шт.

87300716R

REMAN-HYDROSTAT MOTO

1660 - CASE IH AXIAL-FLOW COMBINE (PRIOR TO S/N JJC0038346) - 1/86-12/92, Reman For New P/N's 121436A1 & 87300716

2шт.

87300716C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

2

1978000C1

VALVE

ASSEMBLY - selector, parts list Fig. 5-86

1шт.

3

1970387C1

HOSE

- motor drain, 57 inch (1448 mm) long

4шт.

4

1970388C1

HOSE

- motor drain, 67 inch (1702 mm) long

1шт.

6

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, 3/4-16 inch flare x swivel straight thread (Replaces elbow 9410255)

4шт.

7

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 7A

4шт.

7a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

4шт.

9

1970389C1

HOSE

- motor drain, 61 inch (1549 mm) long

1шт.

10

1970108C1

PROTECTIVE COVER

SLEEVE - nylon, 2-3/8 (60) ID x 48 inch (1219 mm) long

2шт.

11

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

12

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

1970140C1

TUBE,4.78 mm ID

- pressure, charge

1шт.

19

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 inch thread

1шт.

20

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 7/16-20 inch flare branch x flare x adjustable O-ring boss, Includes: Ref. 20A

1шт.

20a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

21

1970176C1

PLUG

- hex, special, hydraulic

1шт.

22

218-752

CAP,37 Degree, 7/16"-20

- hex, 7/16-20 inch

1шт.

23

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

24

REF

INSTRUCTION

SOLENOID ASSEMBLY - spool, charge pressure, parts list Fig. 5-86

1шт.

25

1964572C2

WIRE HARNESS

CABLE - power, solenoid

1шт.

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.
