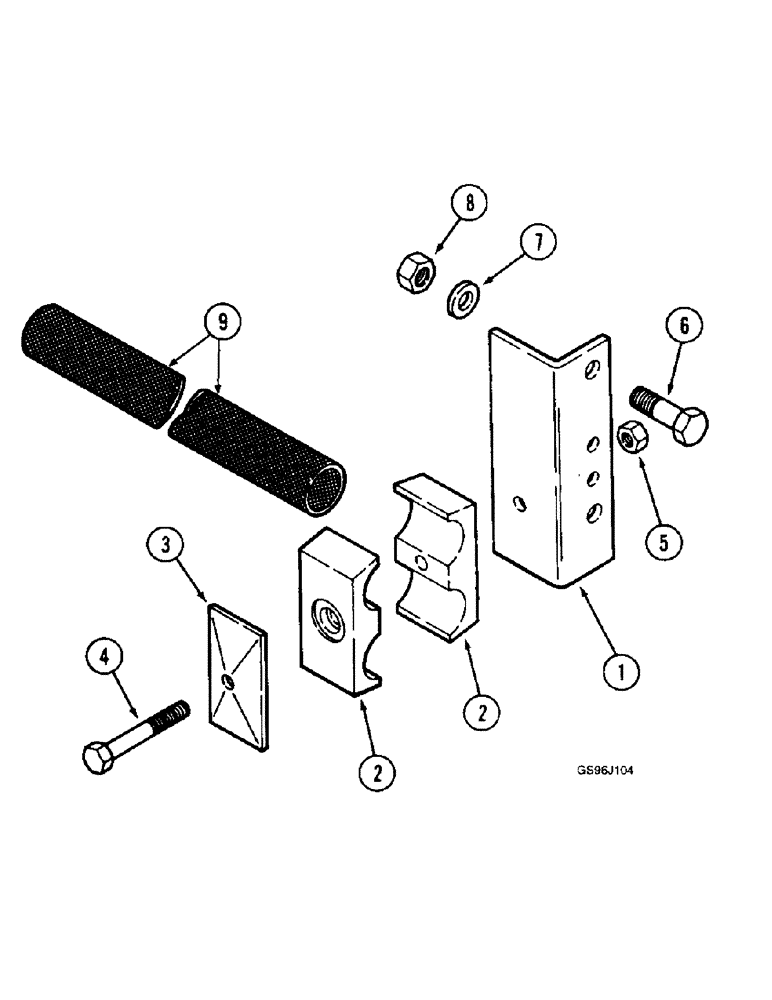

Запчасти Case IH 1660 (5-64) - STEERING HOSE MOUNTING KIT, POWER GUIDE AXLE, PRIOR TO P.I.N JJC0036301 (04) - STEERING

1315505C1

KIT

- steering hydraulic hose mounting, Includes: Ref. 1 - 9

1шт.

1

1324467C2

ANGLE

BRACKET - hose angle

1шт.

2

1324473C1

CLAMP

- hose

1шт.

3

1324469C1

PLATE

- clamp

1шт.

4

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

5/16"-18 x 3 1/4", G8

1шт.

5

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

6

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

7

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

8

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

9

1324450C1

SLEEVE

- nylon, 3-5/16 ID x 36 inch (914 mm) long

2шт.
