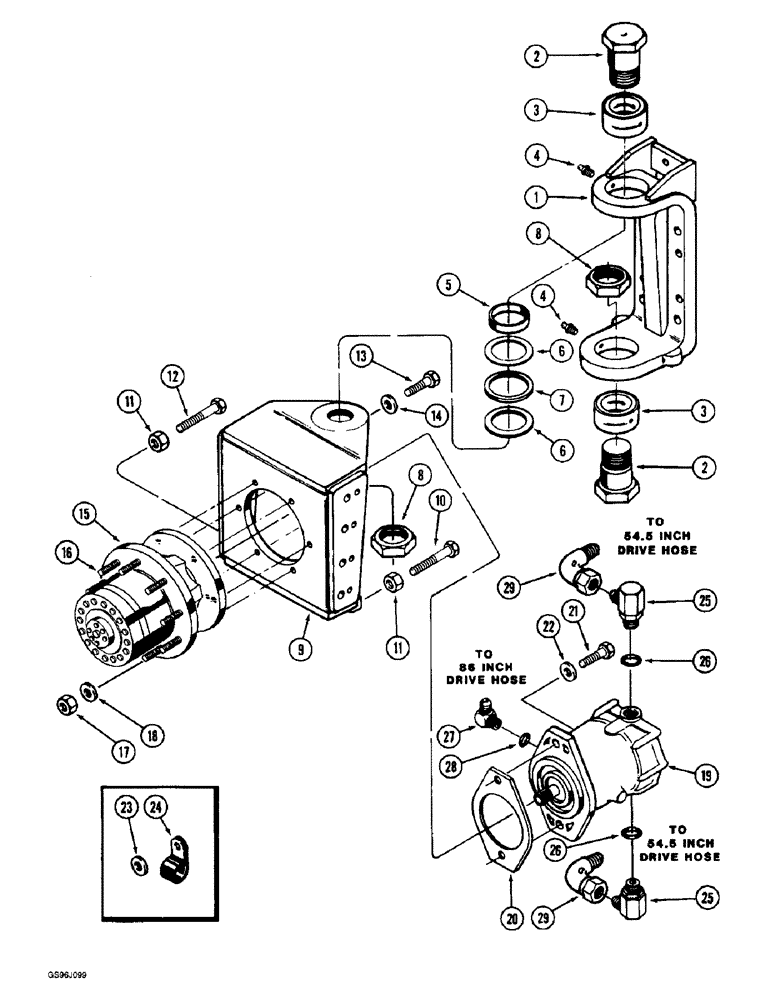

Запчасти Case IH 1660 (5-54) - WHEEL DRIVE SUPPORTS, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0036301 (04) - STEERING

1

1314471C1

SUPPORT

- frame

2шт.

2

1324468C1

BOLT,1 5/8" - 12 x 2.74"

- pivot pin

4шт.

3

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

- self-aligning

4шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

5

1310560C1

THRUST WASHER

- thrust washer spacer

2шт.

6

890477C1

WASHER

WASHER - thrust

4шт.

7

1310562C1

THRUST WASHER

- thrust, nylatron

2шт.

8

218-1257

BHD LOCK NUT,Blkhd, 1 5/8"-12

NUT - hex, lock, bulkhead, 1-5/8 inch NF

4шт.

9

1314472C1

SUPPORT

- frame

2шт.

10

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch, grade 8

2шт.

11

329-1410

JAM NUT,Jam, 5/8"-11, G8

4шт.

12

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

13

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

12шт.

14

1324470C1

WASHER

- flat, special, 41/64 x 1 x 3/64 inch

12шт.

15

1324465C91

HOUSING

- planetary gear, see Fig. 5-68

2шт.

16

1310563C1

STUD,5/8" - 18 x 2.15"

- headed

18шт.

17

429-1110

NUT,5/8"-18, G8

18шт.

18

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

18шт.

19

1310556C91

MOTOR, ELECTRIC

MOTOR ASSEMBLY - fixed axial piston, parts list Fig. 5-66

2шт.

20

1310555C1

GASKET

- motor

2шт.

21

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

23

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

24

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

P-type, coated (Replaces clamp 28135R1) 15/16", Insul, 1/2" Bolt

1шт.

25

1324476C3

ELBOW

- 90 degree high pressure swivel, 1-1/16-12 thread (Replaces elbow 1324476C1)

4шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

4шт.

27

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adjustable O-ring boss, Incl. Ref. 28

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

29

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

4шт.
