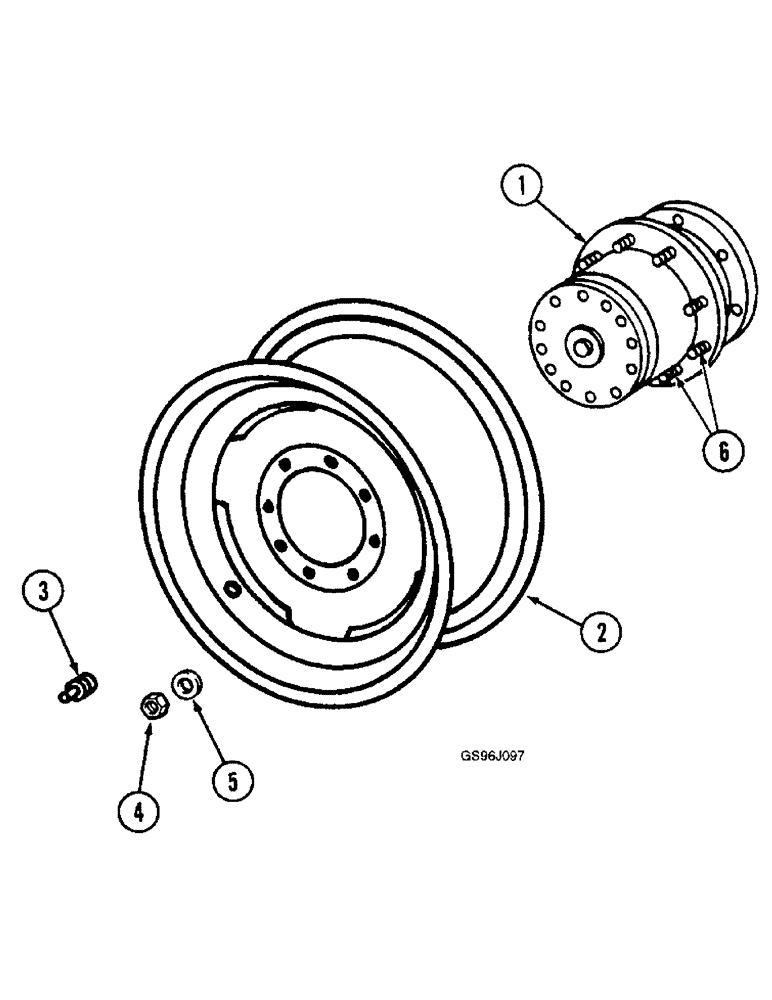

Запчасти Case IH 1660 (5-50) - WHEELS, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0036301 (04) - STEERING

1

1324465C91

HOUSING

- planetary gear, see Fig. 5-68

2шт.

2

188928C1

WHEEL

- for 14.9 x 24 tire

2шт.

2

1970153C1

RIM

WHEEL - drive, steering, for 16 x 26 tire

2шт.

3

536705R91

VALVE

- inflation, 5/8 inch diameter

2шт.

4

429-1110

NUT,5/8"-18, G8

18шт.

5

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

18шт.

6

1310563C1

STUD,5/8" - 18 x 2.15"

- headed, wheel mounting

18шт.
